Raw Material: | AL1060/1050 | Surface Treatment: | Clean |
---|---|---|---|
Application: | Cold Forged Heat Sink For Led Ligting | Processing Service: | Forged /Cutting, CNC,Anodizing |
Delivery Time: | 20-30days | Keyword: | Cold Forged Heat Sink |

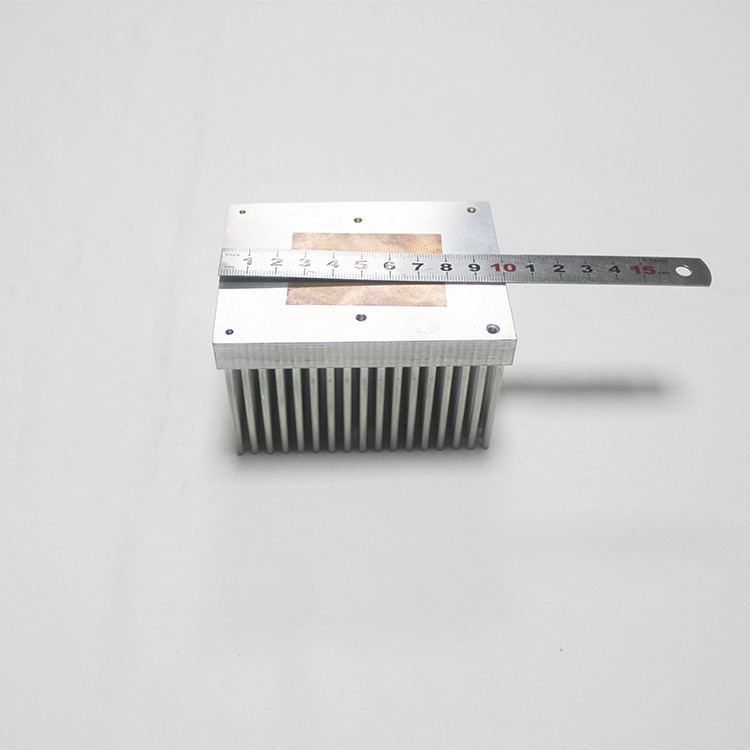

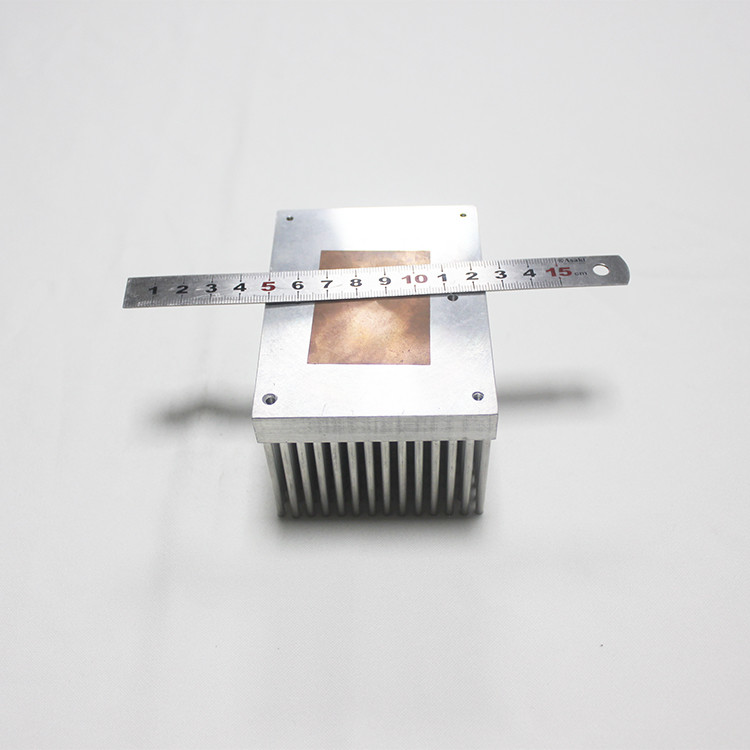

Price: | EXW/FOB/CIF/DDP | Dimesion: | 100*75mm |
Highlight: | Led Light Cold Forged Heat Sink,Aluminum Cold Forged Heat Sink,Rosh Round Aluminum Heat Sink |

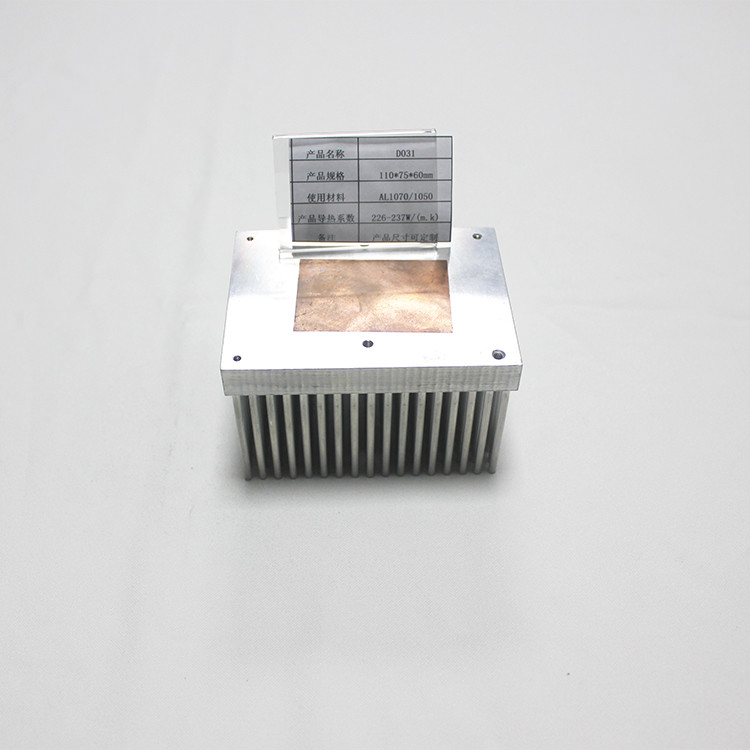

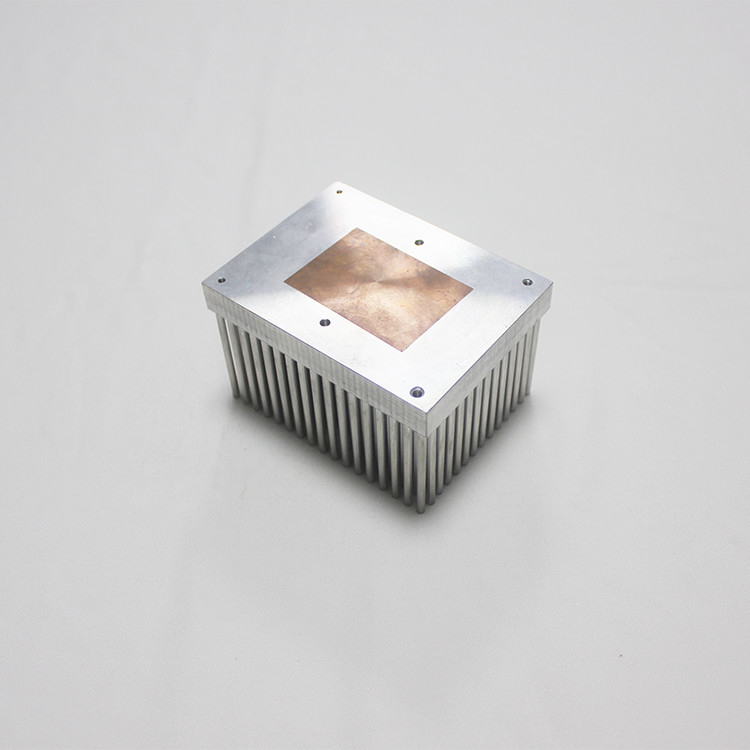

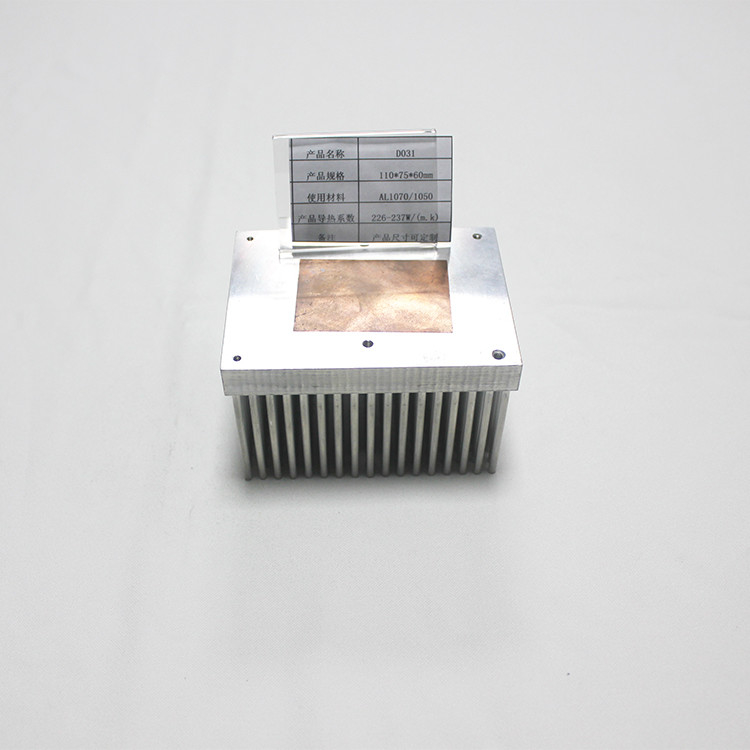

Copper And Aluminum 1070 Cold Forged Heat Sink For High-End Electronics
Quick Detail
Raw Material | AL1070/1050 |
Custom Service | Yes, OEM/ODM Service |
Quality System | ISO9001:2015 |
Processing Technology | Forged/cutting/laser/CNC/Anodizing |
Surface treatment | Black |
Packing Way | Blister packaging or special packing you would like |
Application Scenario | Electronic equipment heat sink |
MOQ Request | 100/500/1000 |
Description
This cold forged heat sink is based aluminum 1070 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use Hydraulic press machine to do the roughcast, the third is that accroding to the drawing, use the wood machine to cut the outline dimension, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing .
Note
Cold forged heat sink
Cold forging is a manufacturing process in which the aluminum or copper heat sink is formed by using localized compressed forces. Fin arrays are formed by forcing raw material into a molding die by a punch. The process ensures that no air bubbles, porosity or any other impurities are trapped within the material and thus produces exceptionally high quality products
We are able to produce complex shapes such as elliptical fins, stappered fins, round pin array.
Due to cold-foring process, heat sink can be formed without too much unnecessary waste.
FEATURES
This process is as integrated structure, and mostly we adopt “cold-forge” process. We insert the material of Aluminum alloy into the tooling by high pressure.
Fanless cooling of more and more efficient systems requires powerful heatsinks having a extremely large surface. To cool these systems efficiently, Fodor Technology offers coolers coming from a cold forging procedure. Using high purity aluminum and copper in the shape of pin coolers meets these requirements in an optimum way. In contrast to extruded coolers more complex geometries can be manufactured as well. Apart from customized design Fodor Technology also offers a selection of standard dimensions.
you have any inquiry, please contact us.
