Round Extrusion F0004 Black Anodized Heat Sink For Led Lighting Practical

Basic Information
Place of Origin: China
Brand Name: FODOR
Certification: Rosh
Model Number: HEAT SINK-F0004
Minimum Order Quantity: 200PCS
Packaging Details: Blister packaging
Delivery Time: 20-30days
Payment Terms: T/T, Western Union
Supply Ability: 30000 PCS Per month
Price: EXW/FOB/CIF/DDP Raw Material: AL1070
Surface Treatment: Anodizing Black Application: Pin Fin Cold Forged Heat Sink
Processing Service: Forged /Cutting, CNC,Anodizing Delivery Time: 20-30days

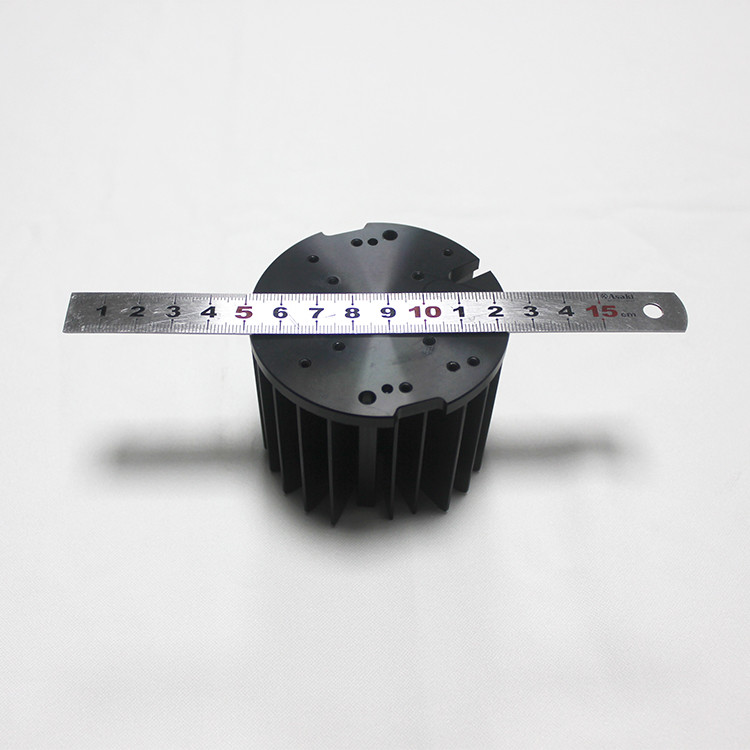

Keyword: Cold Forged Heat Sink Dimesion: 74*70mm
High Light:

F0004 Black Anodized Heat Sink

,

Practical Black Anodized Heat Sink

,

Black Round Heat Sink Extrusion

Anodizing Black Pin Fin Diameter 74mm Cold Forged Heat Sink With Rosh



Quick Detail



Raw Material AL1070/1050
Custom Service Yes, OEM/ODM Service
Quality System ISO9001:2015
Processing Technology Forged/cutting/laser/CNC/Anodizing
Surface treatment  Andizing Black
Packing Way Blister packaging or special packing you would like
Application Scenario Electronic equipment heat sink
MOQ Request 100/500/1000





Description

    This cold forged heat sink is based aluminum 1070 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use Hydraulic press machine to do the roughcast, the third is that accroding to the drawing, use the wood machine to cut the  outline dimension, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing.





Note

A Forged heatsink is manufactured using a modification of this process called cold forging. Cold forging uses high pressure and low temperature to ensure that no air bubbles, or other impurities are trapped in the material. This improves the thermal properties of the heatsink, and increases the density of the material. Thermal Products utilizes special open die tooling and intense pressure to produces high precision heatsinks with high aspect ratios. A Forged heatsink is typically manufactured one part at a time, and can be can be made from AL 6063 or C1100. Aspect ratio up to 35:1 are feasible, and no draft angles required on fins. Fins can be round, elliptical, straight or any combination on the same part.

Fodor offers AL1070 cold forged heat sink service, If you have any inquiry, please contact us.

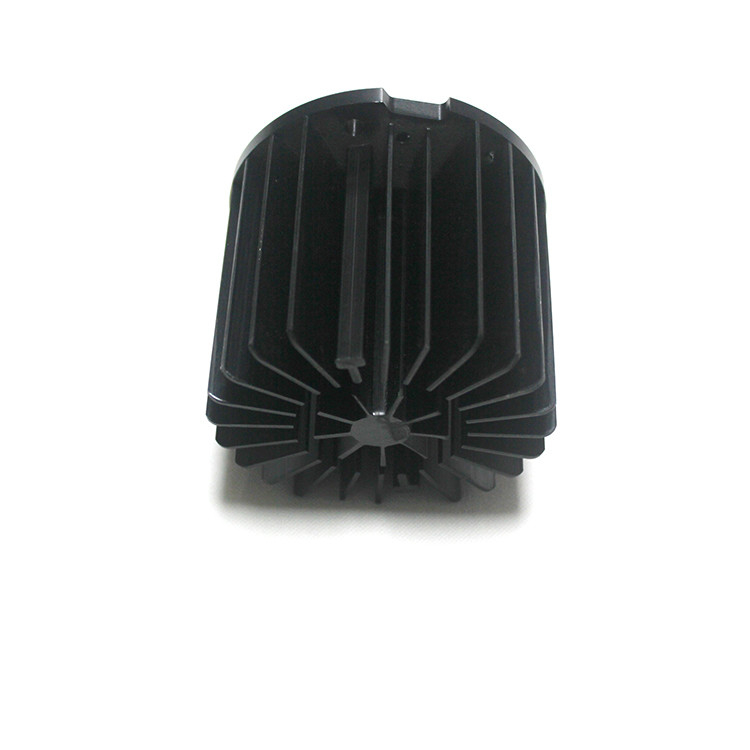

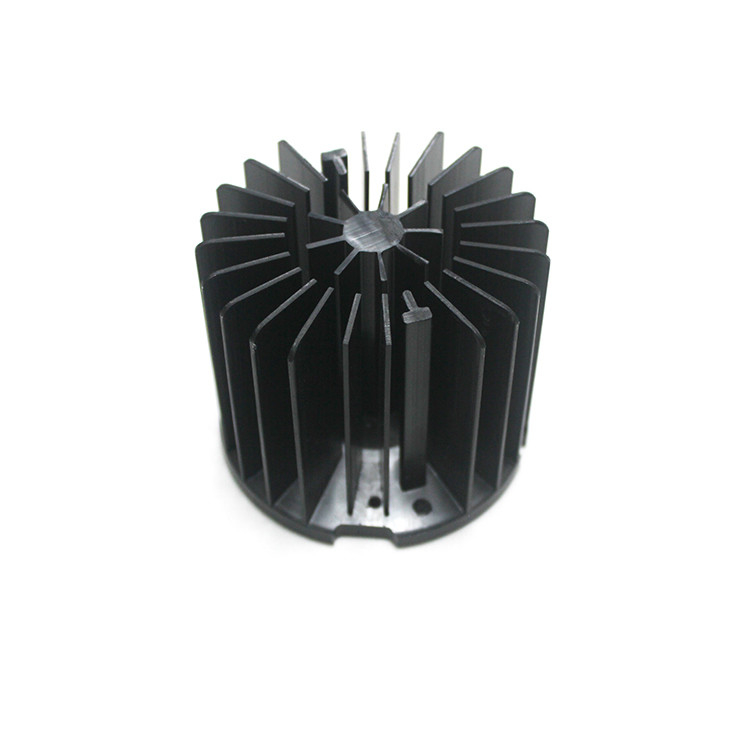

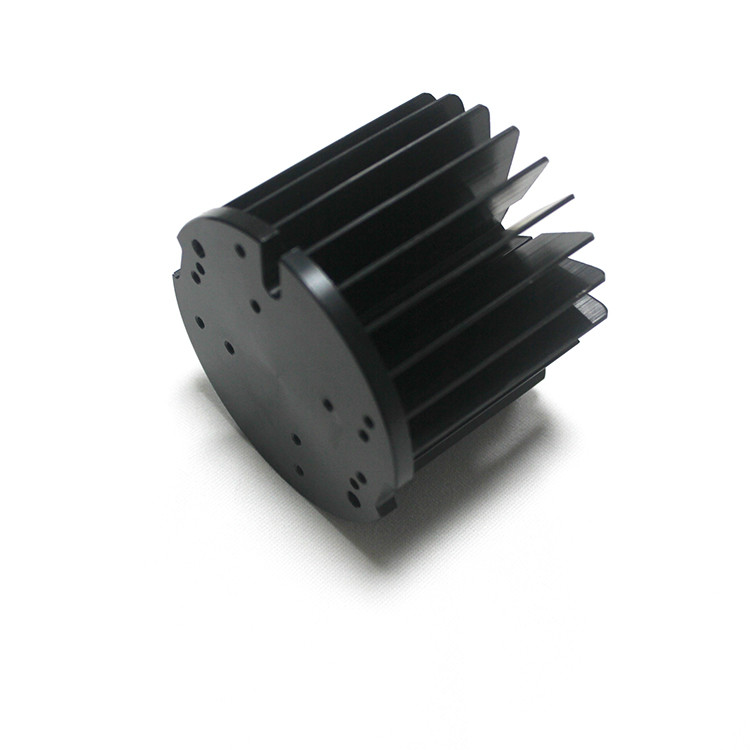

 Round Extrusion F0004 Black Anodized Heat Sink For Led Lighting Practical 0Round Extrusion F0004 Black Anodized Heat Sink For Led Lighting Practical 1Round Extrusion F0004 Black Anodized Heat Sink For Led Lighting Practical 2
