| Place of Origin: | China |
|---|---|
| Brand Name: | FODOR |
| Certification: | Rosh |
| Model Number: | HEAT SINK-F0007 |
| Minimum Order Quantity: | 200PCS |
| Packaging Details: | Blister packaging |
| Delivery Time: | 20-30days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30000 PCS Per month |
| Price: | EXW/FOB/CIF/DDP | Raw Material: | AL1060/1050 |
|---|---|---|---|
| Surface Treatment: | Black Anodizing | Application: | Round Pin Cold Forged Heat Sink |
| Processing Service: | Forged /Cutting, CNC,Anodizing | Delivery Time: | 20-30days |
| Keyword: | Cold Forged Heat Sink | Dimesion: | 45x70mm |
| High Light: | 70mm Cold Forging Heat Sink,Round Cold Forging Heat Sink,Anti Corrosion Round Led Heatsink |
||

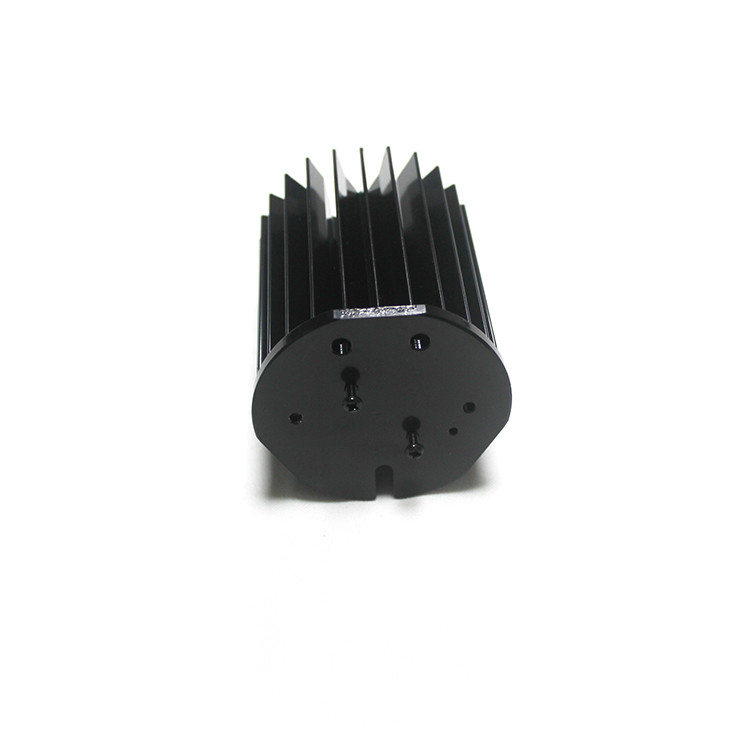

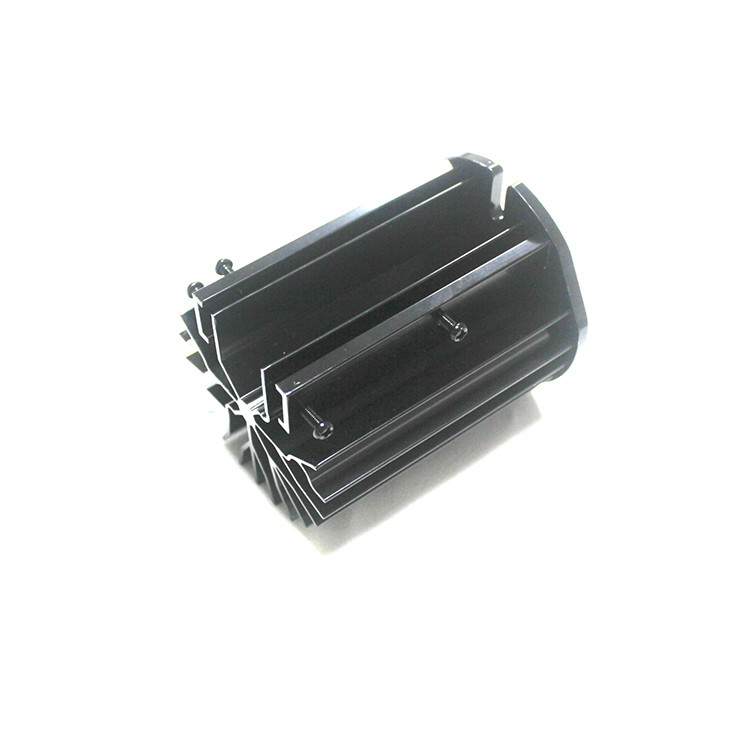

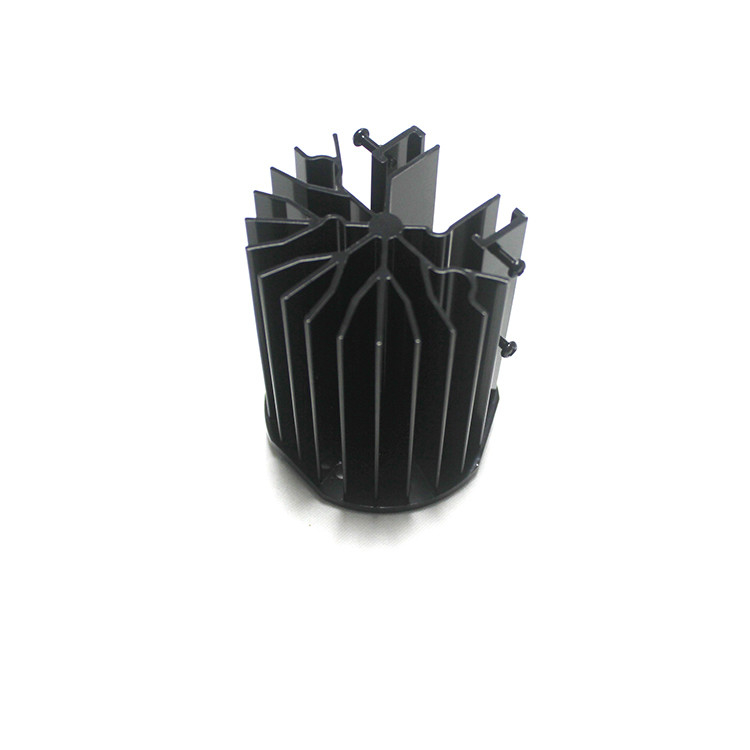

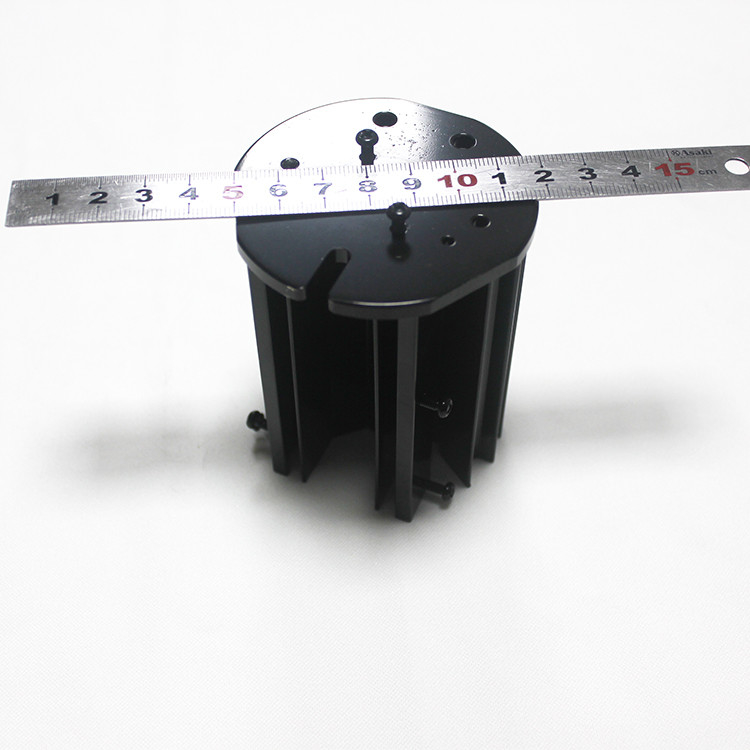

Round Pin Fin Diameter 65mm Al1070 Anodizng Black Cold Forged Heat Sink For Led Light With Rosh
Quick Detail
| Raw Material | AL1070/1050 |
| Custom Service | Yes, OEM/ODM Service |
| Quality System | ISO9001:2015 |
| Processing Technology | Forged/cutting/laser/CNC/Anodizing |
| Surface treatment | Andizing Black |
| Packing Way | Blister packaging or special packing you would like |
| Application Scenario | Electronic equipment heat sink |
| MOQ Request | 100/500/1000 |
Description
This cold forged heat sink is based aluminum 1070 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use Hydraulic press machine to do the roughcast, the third is that accroding to the drawing, use the wood machine to cut the outline dimension, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing.
Note
Cold forging is a highly precise manufacturing process in which the workpiece is formed under high pressure and low temperature. The process ensures that no air bubbles, porosity or other impurities are trapped in the material, and thus produces products with exceptionally high quality.
Benefits of Cold Forging and Pin Fin Heat Sinks
Compared with other manufacturing methods (machining, die casting, extrusion, hot forging, etc.), cold forging offers the following benefits:
Improved mechanical strength
Improved surface finish
Better control of tolerance
Efficient use of raw materials
Reduced energy consumption
High production rate
Low overall cost
Fodor offers AL1070 cold forged heat sink service, If you have any inquiry, please contact us.
