Price: | EXW/FOB/CIF/DDP | Raw Material: | AL1060/1070 |
---|---|---|---|
Surface Treatment: | Anodizing Black Or Custom | Application: | Round Pin Cold Forged Heat Sink |
Processing Service: | Forged /Cutting, CNC, Anodizing | Delivery Time: | 20-30days |
Keyword: | Cold Forged Heat Sink | Dimesion: | 110x60mm |
High Light: | ODM Black Anodized Aluminum Heat Sink,Round Black Anodized Aluminum Heat Sink,Black Round Extruded Aluminum Heatsink |

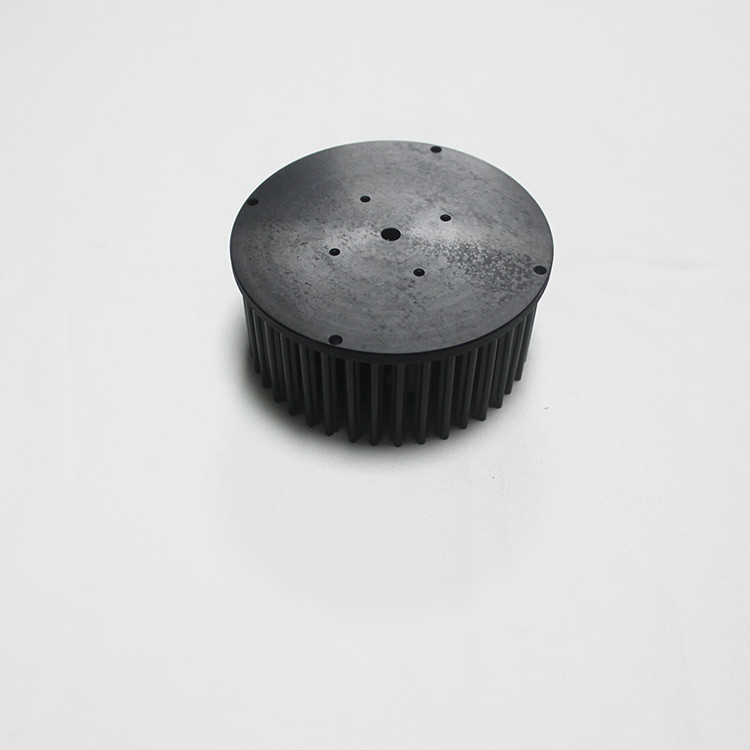

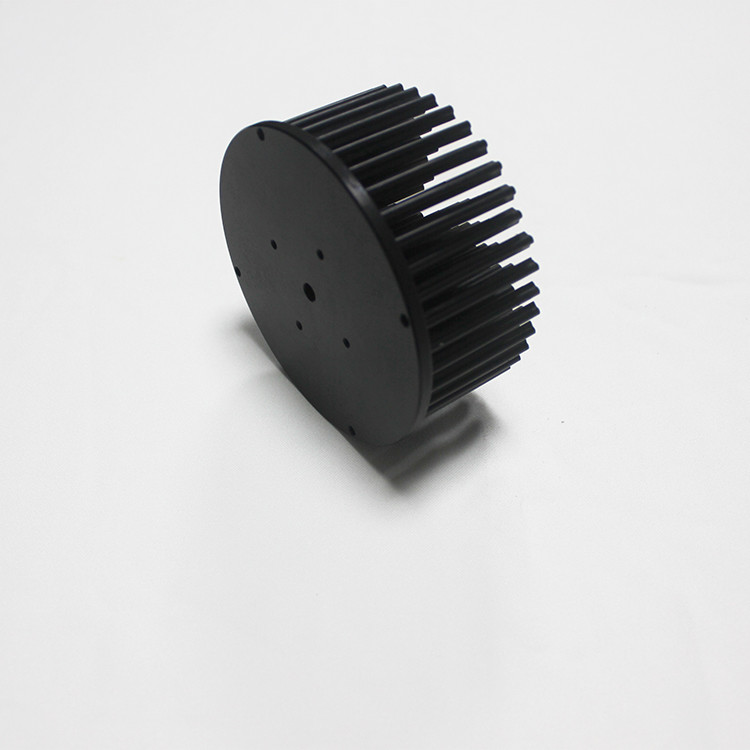

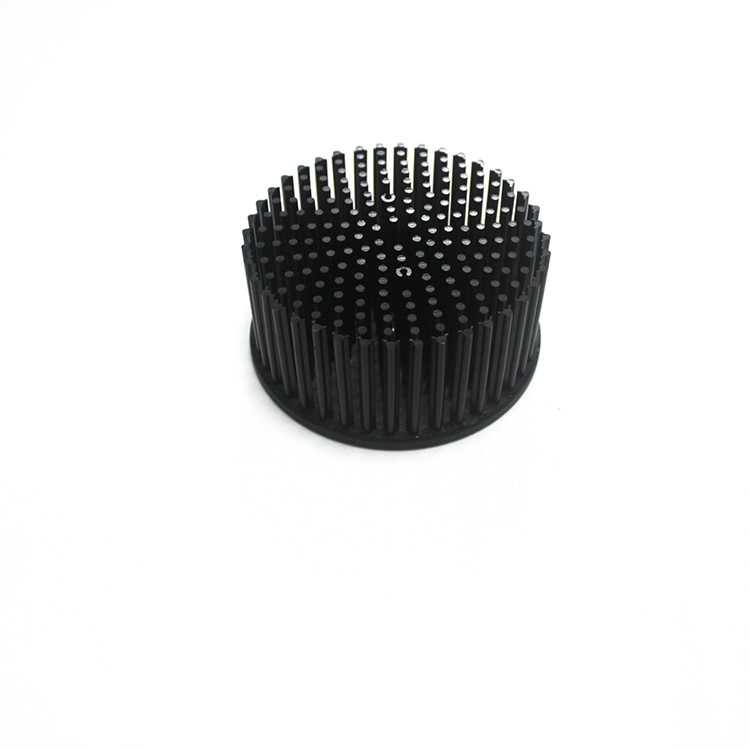

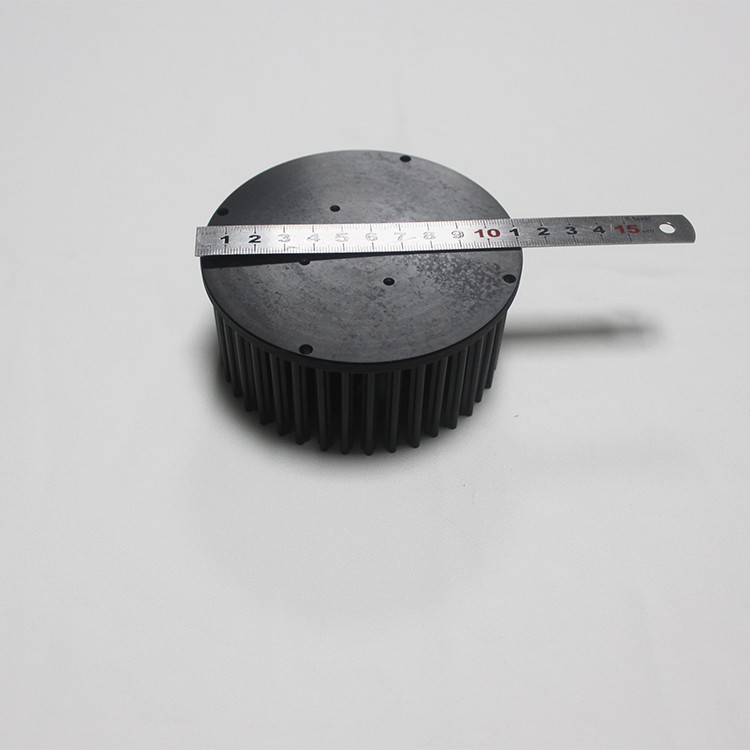

Al1070 Anodizing Black Cold Forged Heat Sink Round Pin Fin Diameter 110mm
Quick Detail
Raw Material | AL1070/1050 |
Custom Service | Yes, OEM/ODM Service |
Quality System | ISO9001:2015 |
Processing Technology | Forged/cutting/laser/CNC/Anodizing |
Surface treatment | Andizing clear |
Packing Way | Blister packaging or special packing you would like |
Application Scenario | Electronic equipment heat sink |
MOQ Request | 100/500/1000 |
Description
This cold forged heat sink is based aluminum 1070 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use Hydraulic press machine to do the roughcast, the third is that accroding to the drawing, use the wood machine to cut the outline dimension, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing.
Note
Design Guidelines for Cold-Forged Heat Sinks
To improve manufacturability, please design custom heat sinks based on the following guidelines:
Maximum Width: 320 mm
Maximum Length: 320 mm
Maximum Height: 150 mm
Minimum Thickness for Base Plate: 2.0 mm
Minimum Gap Between Fins: 1.5 mm
Minimum Distance Between Fin and Edge of Base Plate: 0.5 mm
Fodor offers AL1070 cold forged heat sink service, If you have any inquiry, please contact us.
