| Place of Origin: | China |
|---|---|
| Brand Name: | FODOR |
| Certification: | Rosh |
| Model Number: | HEAT SINK-F0012 |
| Minimum Order Quantity: | 200PCS |
| Packaging Details: | Blister packaging |
| Delivery Time: | 20-30days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30000 PCS Per month |
| Price: | EXW/FOB/CIF/DDP | Raw Material: | AL1060/1070 |
|---|---|---|---|
| Surface Treatment: | Plating Gold Or Custom | Application: | Pin Cold Forged Heat Sink |
| Processing Service: | Forged /Cutting, CNC, Anodizing | Delivery Time: | 20-30days |
| Keyword: | Cold Forged Heat Sink | Dimesion: | 110x70mm |
| High Light: | Gold Cold Forged Heat Sink,ISO9001 Cold Forged Heat Sink,Anti Rust Gold Heat Sink |
||

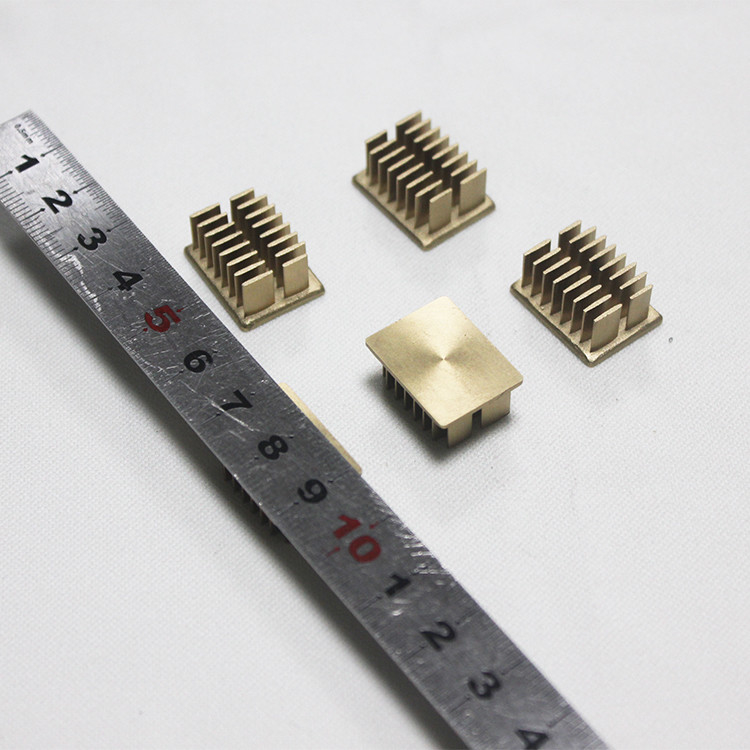

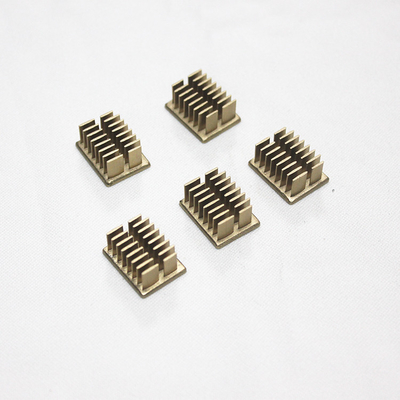

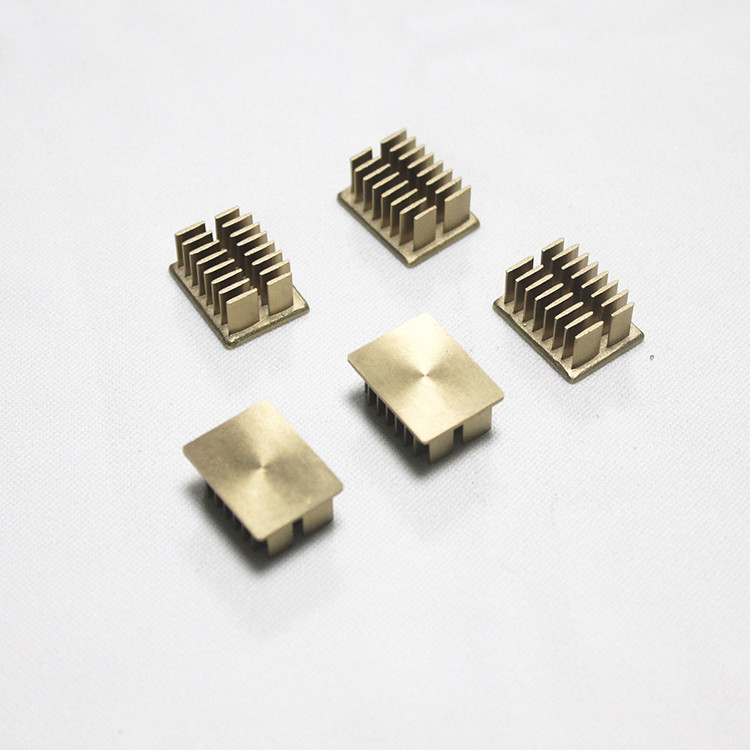

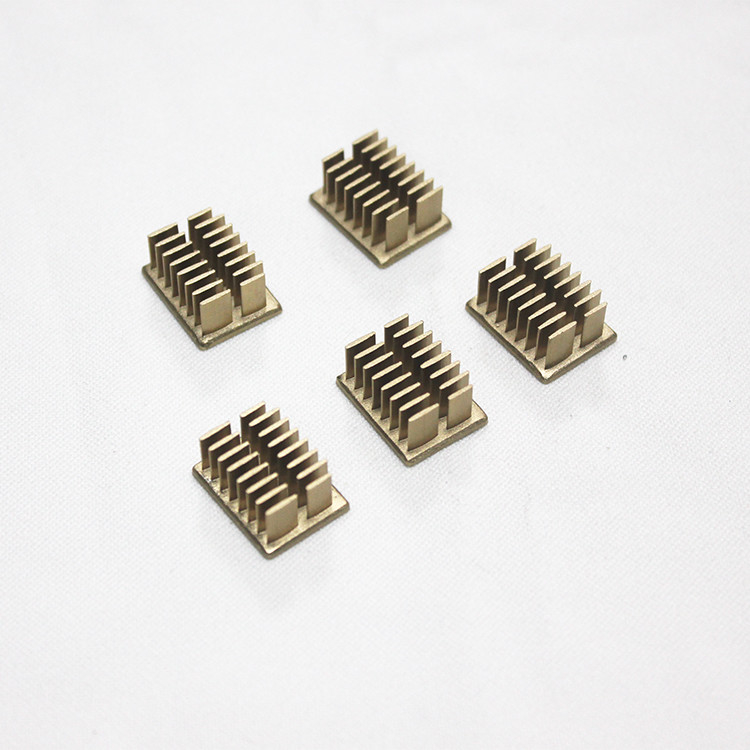

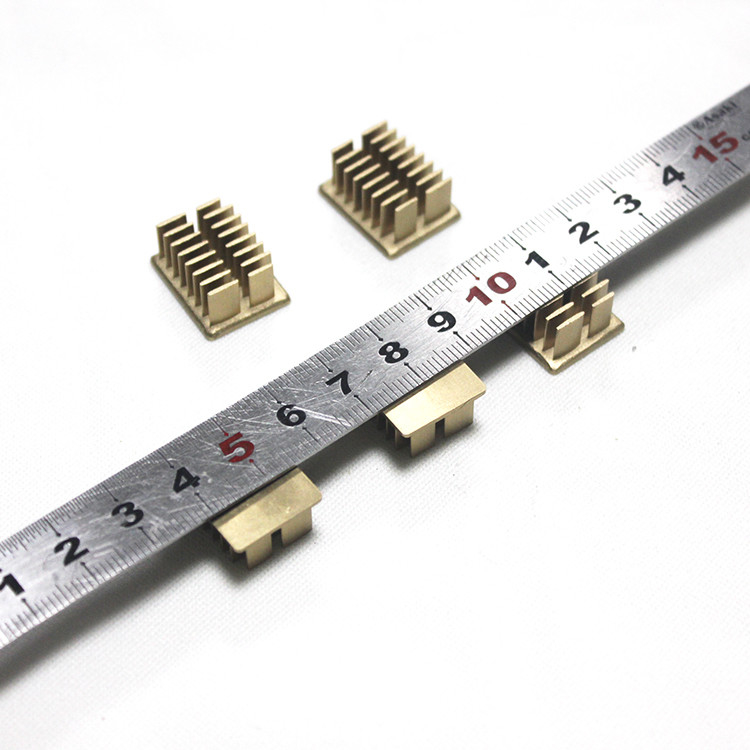

Plating Gold Aluminum 1070 Cold Forged Heat Sink With ISO9001-2015
Quick Detail
| Raw Material | AL1070/1050 |
| Custom Service | Yes, OEM/ODM Service |
| Quality System | ISO9001:2015 |
| Processing Technology | Forged/cutting/laser/CNC/Anodizing |
| Surface treatment | clean |
| Packing Way | Blister packaging or special packing you would like |
| Application Scenario | Electronic equipment heat sink |
| MOQ Request | 100/500/1000 |
Description
This cold forged heat sink is based aluminum 1070 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use Hydraulic press machine to do the roughcast, the third is that accroding to the drawing, use the wood machine to cut the outline dimension, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing.
Note
Cold forged heat sink
Cold forged heat sink is a good choice for casting complex shapes with excellent thermal conductivity. The cold forging process allows an almost perfect straightness of more fins per square millimeter. The shapes of cold forged heat sink include plate fin heat sink, round pin heatsink and oval fin heat sinks.The manufacture of forged heat sinks are well suited to the use of copper because the copper heatsinkcan be shaped without high temperatures and can be formed with minimal damage. Cold forging heatsink manufacturing can often include secondary processing operations such as holes, chamfering and steps to reduce unnecessary waste.
Fodor has gained experiences in the manufacturing techniques for high power cold forged heat sink. We have resolved the problems such as the low thermal conductivity of die-casting micro-channels and higher costs for machining micro-channels. We have already applied cold forging heatsink to cooling solutions including high-voltage inverters, wind power converters, and electric motor controllers.
1. Manufactoring process: Cold forging process
2. Material: AL1070
3. Surface treatment: Clear/black/red/gold anodizing
4. Product type: Customized Design
5. Packing: export standard carton box with pallet.
6. Application: Industry/medical/measurement/house
you have any inquiry, please contact us.
