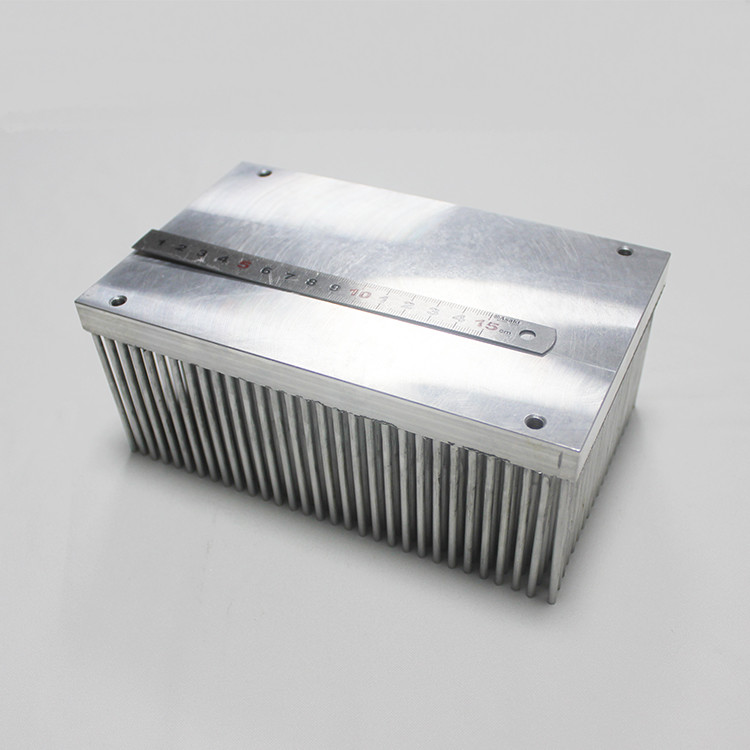

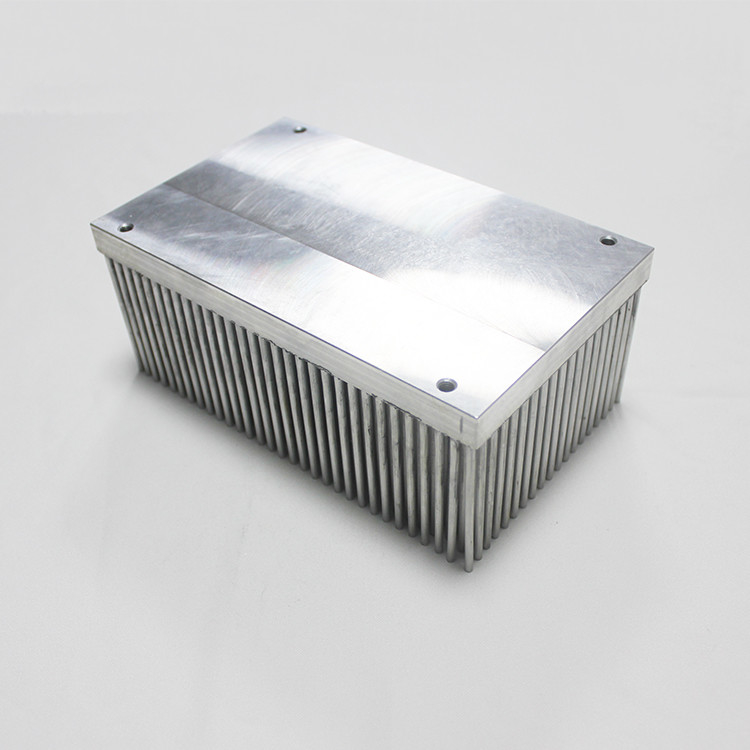

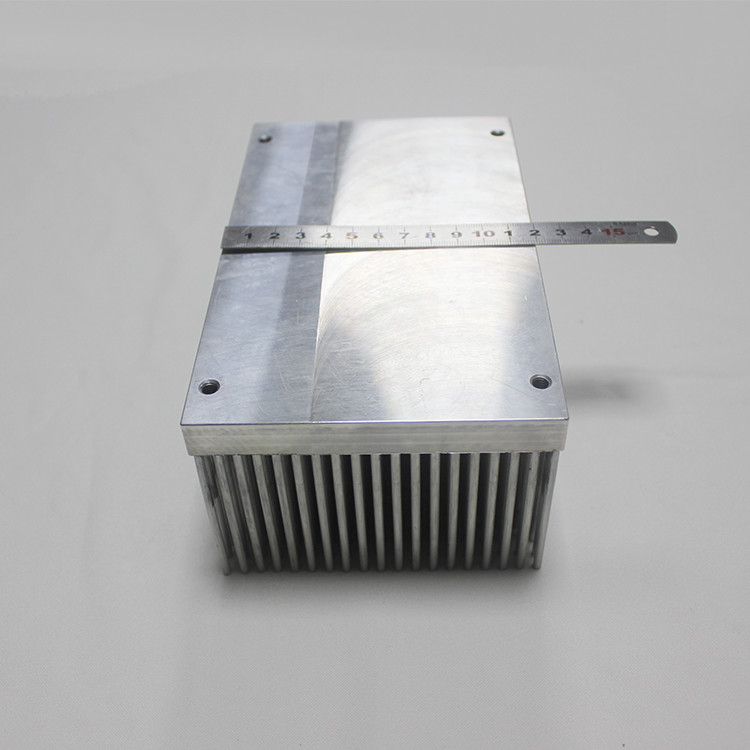

Rosh Cold Forged Heat Sink With High Purity Aluminum Square Anti Corrosion

Aluminum 1070 Cold Forged Heat Sink Wihtout Surface Treatment For High-End Electronics

Quick Detail

Description

    This cold forged heat sink is based aluminum 1070 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use Hydraulic press machine to do the roughcast, the third is that accroding to the drawing, use the wood machine to cut the  outline dimension, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing .

Note

Cold forged heat sink

This process is as integrated structure, and mostly we adopt “cold-forge” process. We insert the material of Aluminum alloy into the tooling by high pressure.

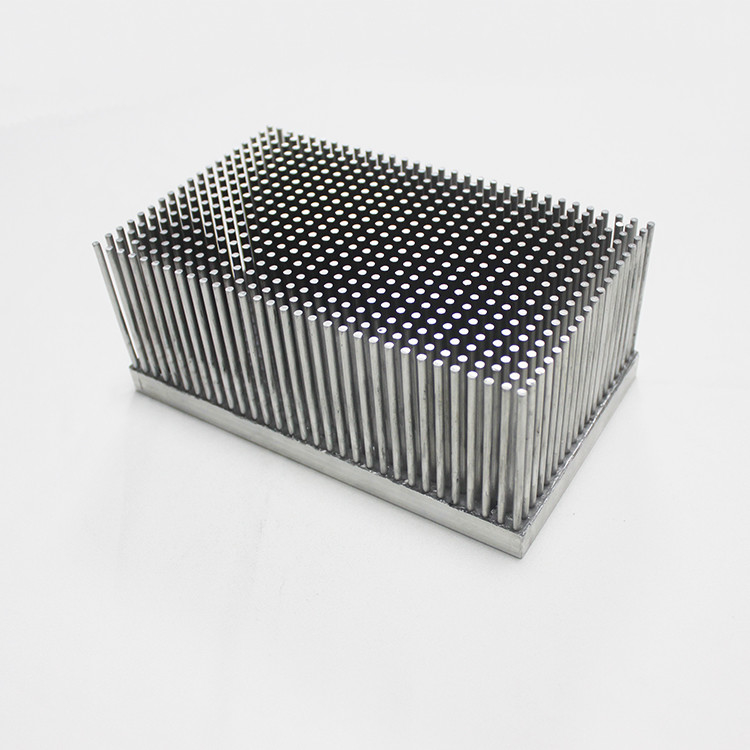

Fanless cooling of more and more efficient systems requires powerful heatsinks having a extremely large surface. To cool these systems efficiently, Fodor Technology offers coolers coming from a cold forging procedure. Using high purity aluminum and copper in the shape of pin coolers meets these requirements in an optimum way. In contrast to extruded coolers more complex geometries can be manufactured as well. Apart from customized design Fodor Technology also offers a selection of standard dimensions.

• Highly Compact Curved Fins Maximize Surface Area
• Material can be formed in multiple dimensions
• Round Pins, holes and standoffs formed in the tool in a single operation
• Round Shapes (ideally suited for LED Cooling)
• Fanless cooling of more and more efficient systems requires powerful heatsinks having a extremely large surface. To cool these systems efficiently, Fodor Technology offers coolers coming from a cold forging procedure. Using high purity aluminum and copper in the shape of pin coolers meets these requirements in an optimum way. In contrast to extruded coolers more complex geometries can be manufactured as well. Apart from customized design

If you have any inquiry, please contact us.
