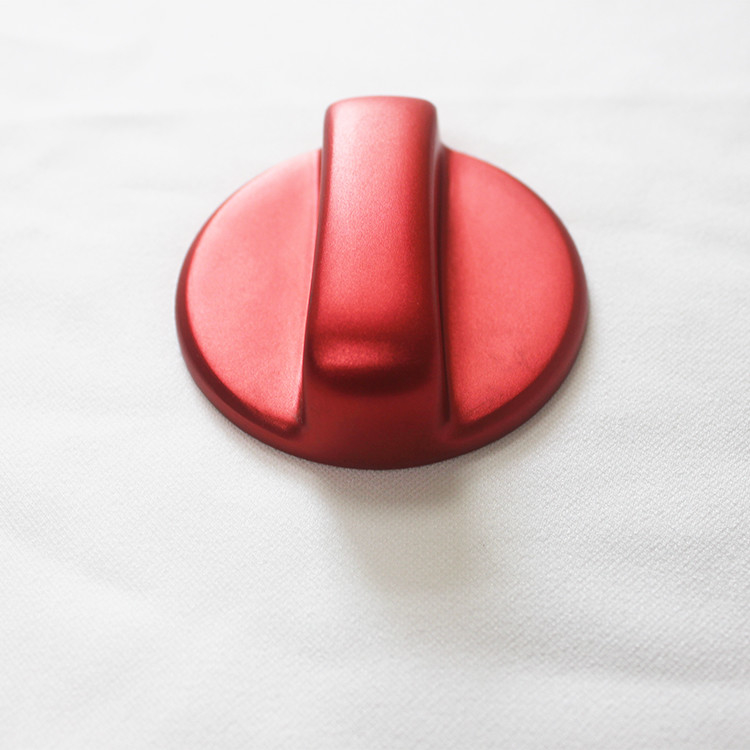

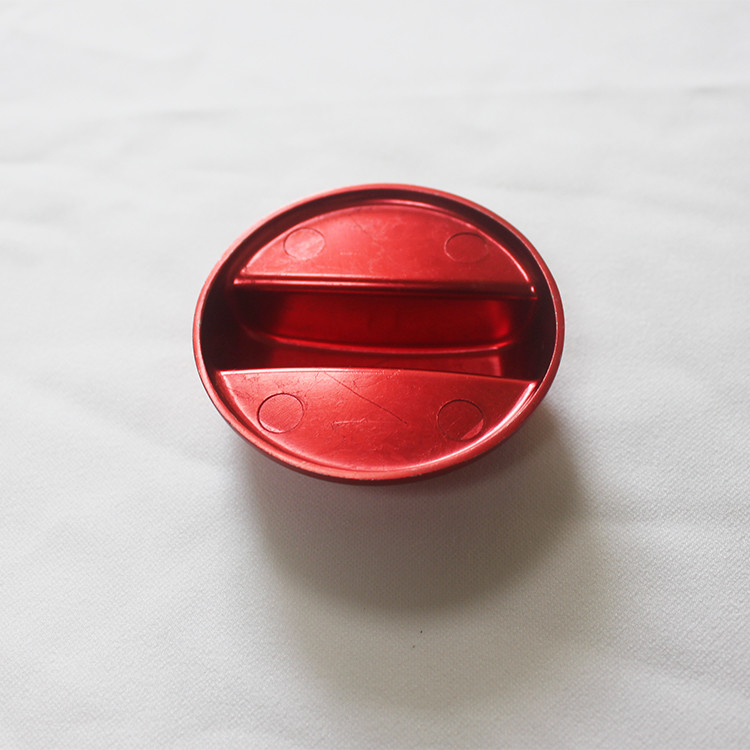

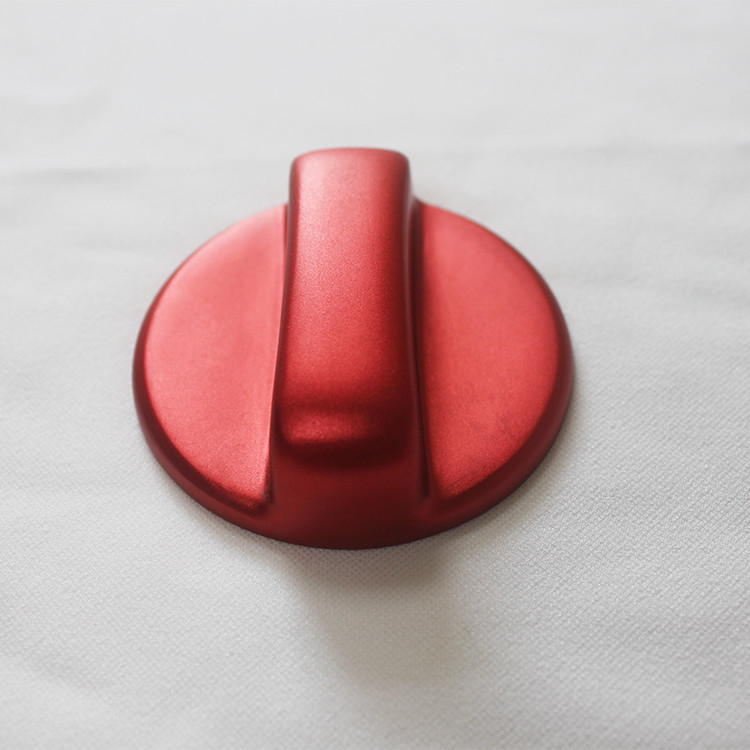

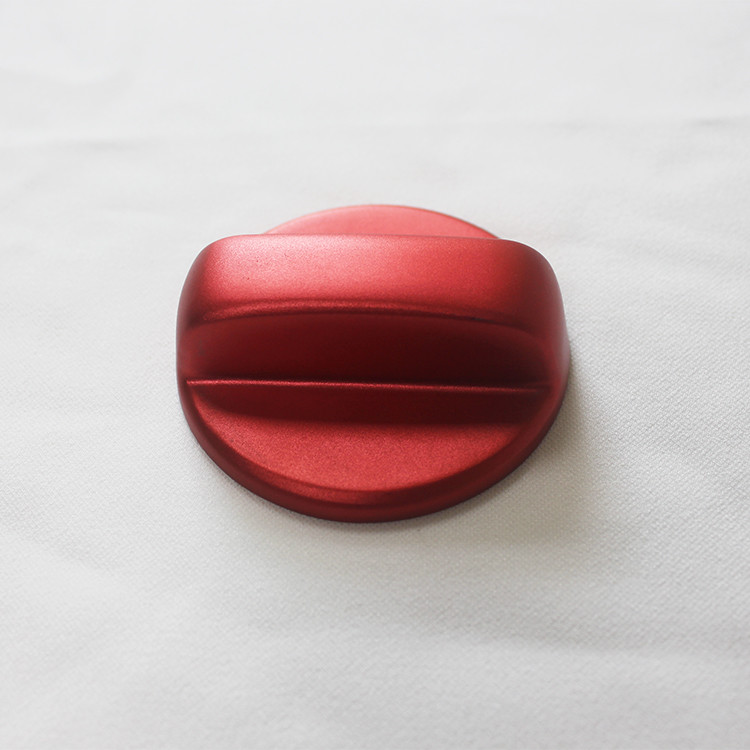

Anodizing Red Fuel Tank Filler Cap Parts , CNC AL2024 Die Casting Components

Pure Aluminum 2024 Anodizing Red Die Casting Parts For Fuel Tank Cap

Quick Detail

Description

    This is a pure aluminum die-casting part. The advantage of pure aluminum die-casting is to adapt to rich surface treatments. Oil spraying, powder spraying, electroplating, anodes, pure aluminum anode die castings can avoid the increased tolerances of other surface treatments, which will stick To meet the higher requirements of die-casting parts, I hope that the pure aluminum die-casting process can help you solve more problems.

Note

Pure aluminum die casting parts

• Choose the best suitable Release agent for the pure aluminum die casting
• keep a stable temperature in the molten oven (keep the molten oven temperature over 720 degrees, The temperature measuring rod is accurate with carbonized material and is not easily eroded by liquid aluminum)
• The crucible in the melting furnace should be made of the graphite material, which is not easy to cause the temperature difference between the upper and lower sides to be too large.
• keep the die casting mold temperature under 220 degree
• The cooling time after injection should not be too long, the ejection time after opening the mold has to control within 0.3 sec.
• mold gate size is much bigger than aluminum alloy, such as ADC 12.
• the flow path and the feed port are as smooth as possible when shooting.
• Spray as much as possible with automatic spray, otherwise, the mold cavity temperature is not easy to maintain

we are professional die casting company that offers gravity die casting, Hot forging, plastic mold/molding, zinc die casting, magnesium die casting, Squeeze casting, pure aluminum die-casting like 6061, 1070, 2A12, 2024, and so on. The die casting parts we made including, Automotive air conditioner Compressor part(Squeeze casting process), Aluminum casting Heat sink, Aluminum Housing (Anodizing process), motor frame, automotive die casting part.
