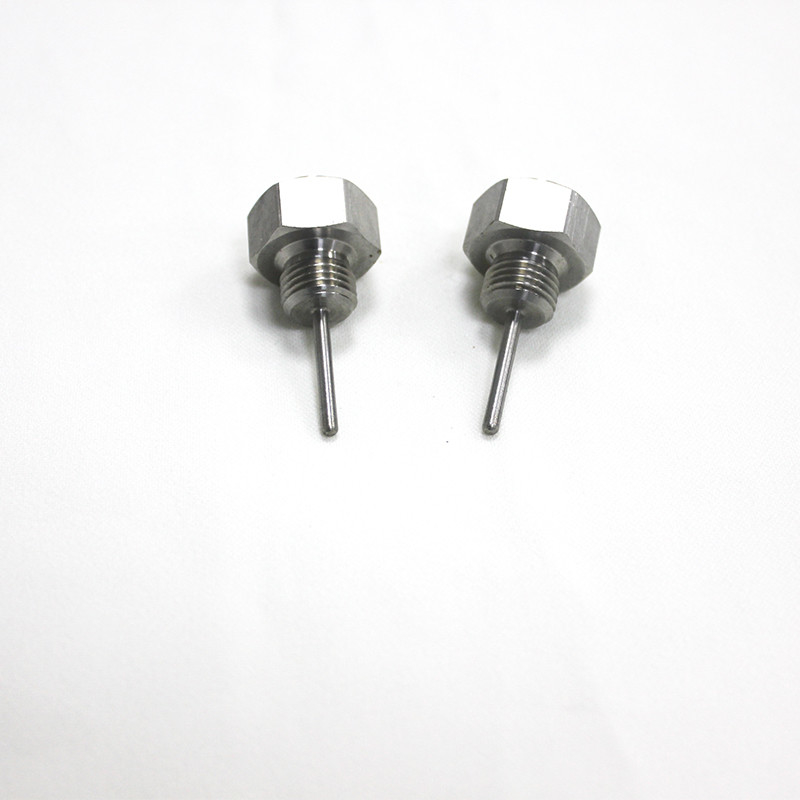

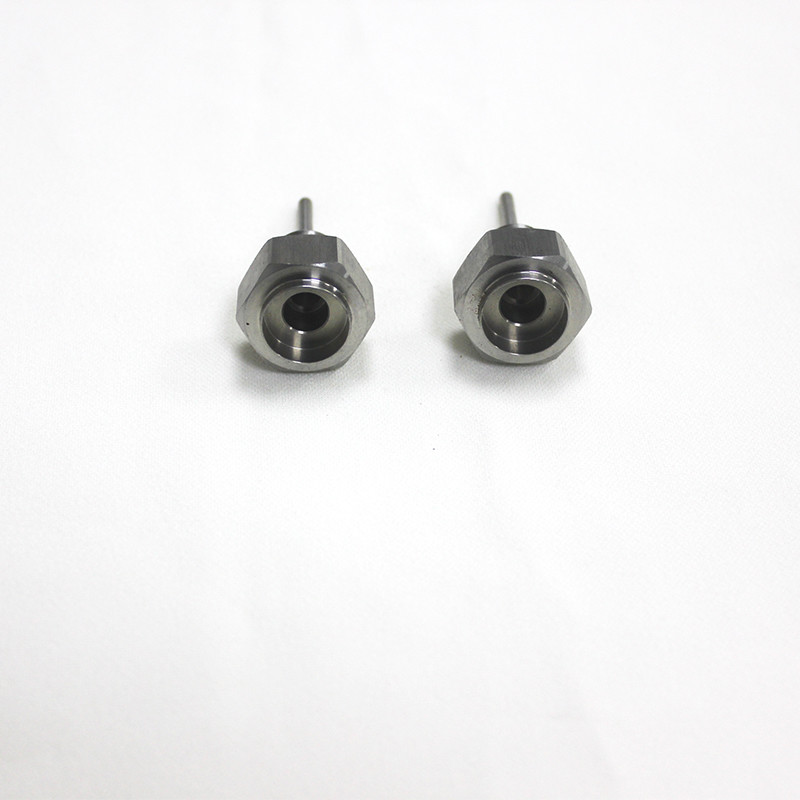

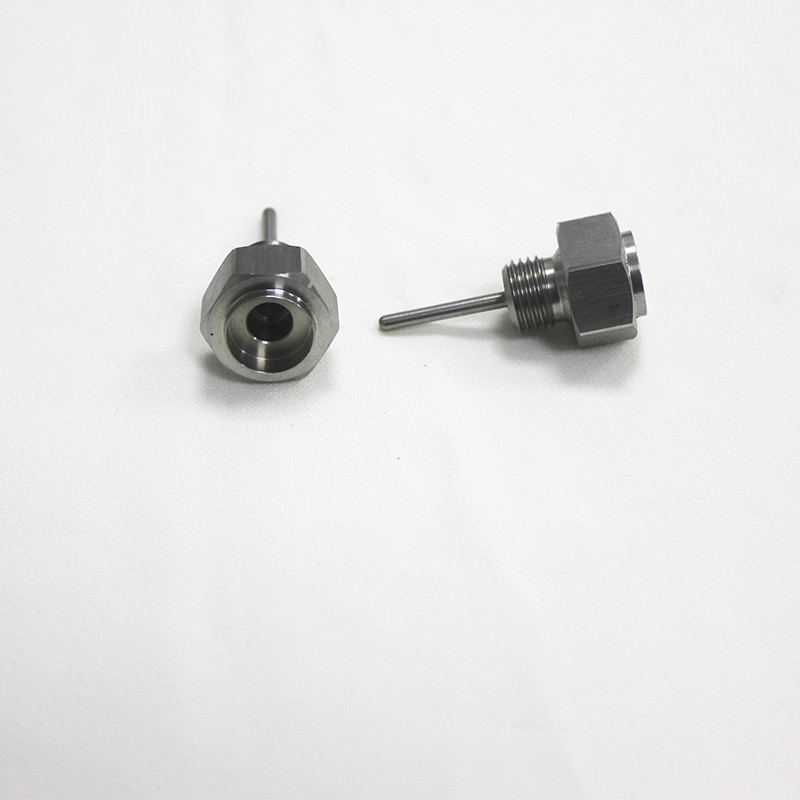

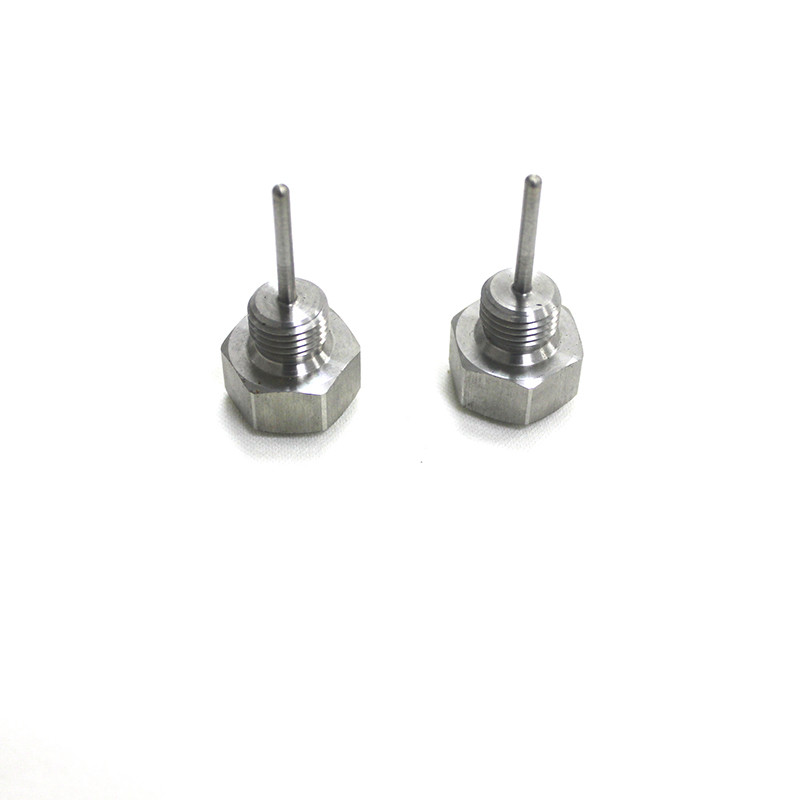

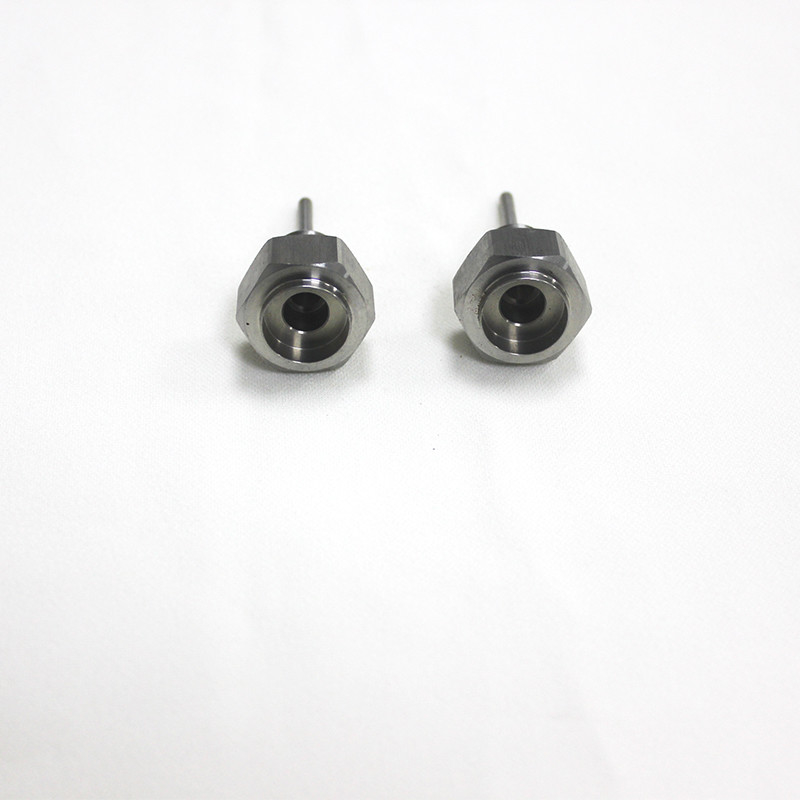

SUS304 CNC Lathe Machining Parts Screw

SUS304 Six Corners Precision CNC Lathe Machning Parts For Special Equipment Screww

Quick Detail

Description

    This heat sink is based aluminum profile 6061 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use the CNC lathe machine to do the dimension, the third is that accroding to the drawing, the forth is that use the CNC to do exact dimension, the fifth is do anodizing surface treatment, and then inspection/packing. First inspection and patrol inspection are done in processing .

Note

Lathe processing is a part of mechanical processing. There are two main types of processing: one is to fix the turning tool and process the unformed workpiece during rotation; the other is to fix the workpiece and rotate the workpiece at high speed, and the turning tool (tool holder) ) Horizontal and vertical movement for precision machining.

Technical problem

Turning is one of the most widely used in the machine manufacturing industry. There are a large number of lathes, a large number of personnel, a wide range of processing, and many tools and fixtures are used. Therefore, the safety technology of turning is particularly important. , Its key tasks are as follows:

•  Damage from cutting chips and protective measures. The toughness of various steel parts processed on the lathe is better, the chips produced during turning are full of plastic curl, and the edges are relatively sharp. During high-speed cutting of steel parts, red hot and long chips are formed, which are very easy to hurt people. At the same time, they are often wound on the workpiece, turning tools and tool holders. Therefore, iron hooks should be used to clean up or break them in time during work. It should be stopped to remove it when it is time, but it is never allowed to remove or pull off by hand. In order to prevent chip damage, chip breaking, chip flow control measures and various protective baffles are often taken. The chip breaking measure is to grind chip breakers or steps on the turning tool; use a suitable chip breaker and mechanically clamp the tool.
• The clamping of the workpiece. In the process of turning, there are many accidents that damage the machine tool, break or break the tool, and cause the workpiece to fall or fly out due to improper clamping of the workpiece. Therefore, in order to ensure the safe production of turning processing, special attention must be paid when loading the workpiece. For parts of different sizes and shapes, you should choose appropriate fixtures, regardless of whether the three-jaw, four-jaw chuck or the connection between the special fixture and the spindle must be stable and reliable. The workpiece must be clamped and clamped. The sleeve can be used to clamp the large work piece to ensure that the work piece does not shift, fall off, or throw out when the workpiece is rotated at high speed and cut. If necessary, use the center frame, center frame, etc. to enhance the clamping. Remove the handle immediately after the card is tightened.
• Safe operation. Before working, check the machine tool thoroughly and confirm that it is good before use. The clamping of the workpiece and the tool ensures the correct position, firmness and reliability. During the machining process, the machine must stop when changing tools, loading and unloading workpieces, and measuring workpieces. Do not touch the workpiece or wipe it with cotton silk when rotating. It is necessary to select the cutting speed, feed rate and strenuous depth appropriately, and no overload processing is allowed. Workpieces, fixtures and other sundries are not allowed to be placed on the head of the bed, the knife rest and the surface of the bed. When using a file, move the turning tool to a safe position, with the right hand in front and the left hand in the back to prevent the sleeves from being caught. The machine tool must have a dedicated person responsible for use and maintenance, and other personnel must not use it.

We can offer CNC lathe service for your custom design.
