Place of Origin: | China |
---|---|
Brand Name: | Customized |
Certification: | ISO9001:2015 |
Model Number: | HEAT SINK-H0016 |
Minimum Order Quantity: | Negotiable |
Price: | Negotiable |
Packaging Details: | Blister packaging |
Delivery Time: | 20-30days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 30000 PCS Per month |
Raw Material: | AL6063/Cooper/fan | Surface Treatment: | Plating Nickel |
---|---|---|---|
Application: | Heat Sink | Processing Service: | Cutting, CNC,Anodizing |
Delivery Time: | 20-30days | Keyword: | Heat Pipe Radiator |
Price: | EXW/FOB/CIF/DDP | ||
Highlight: | Rustproof Heat Pipe Computer Cooling,ODM Heat Pipe Computer Cooling,Copper Tube And Fin Radiator |

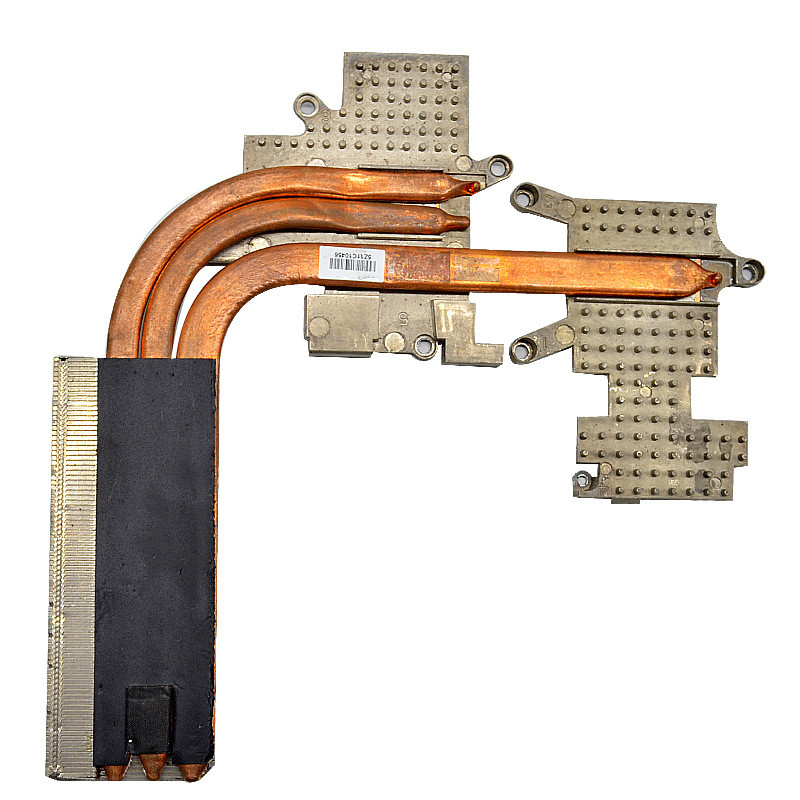

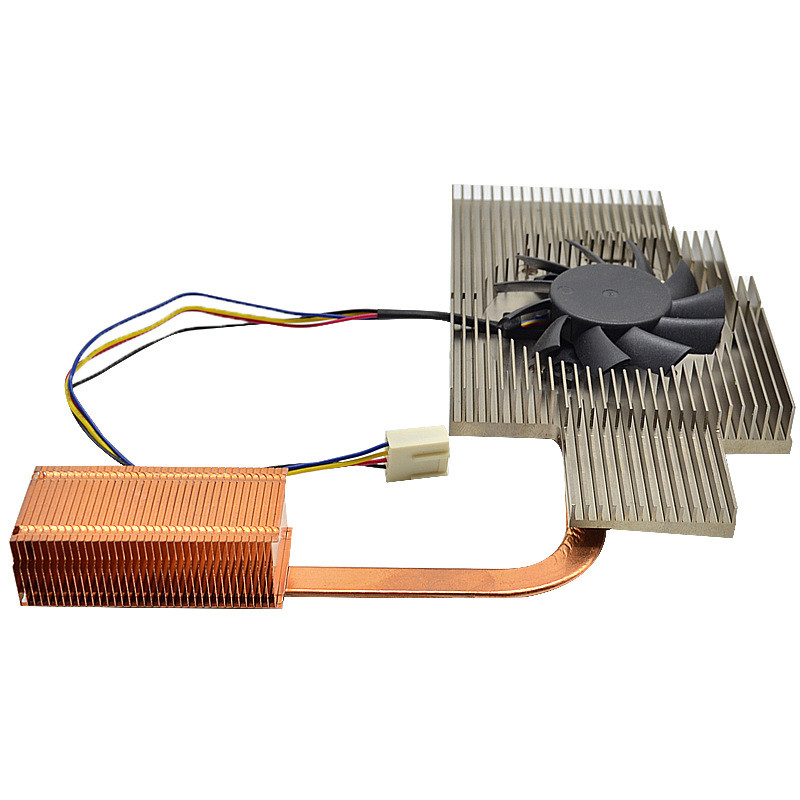

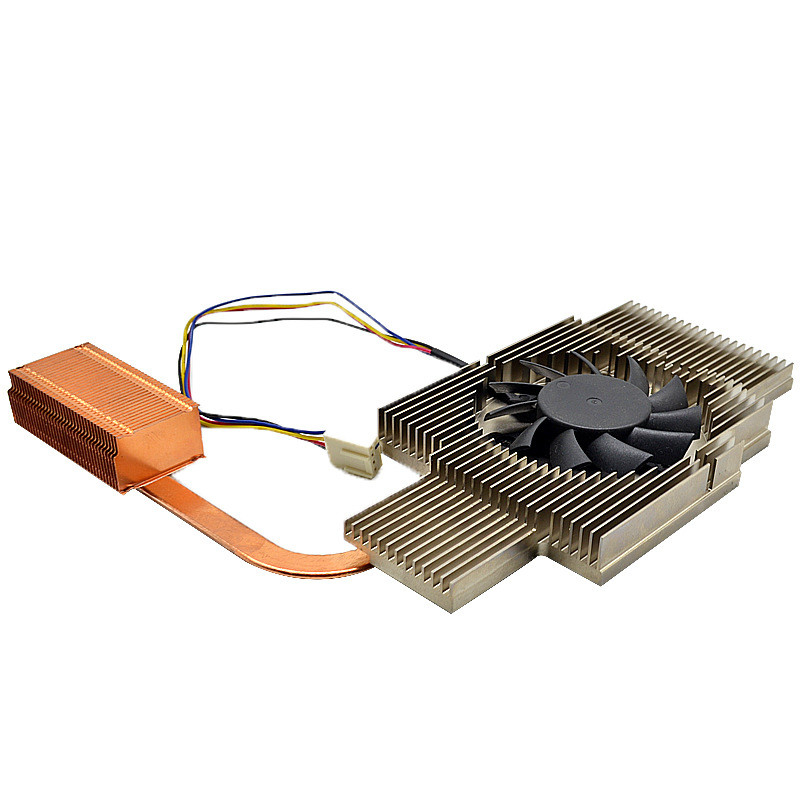

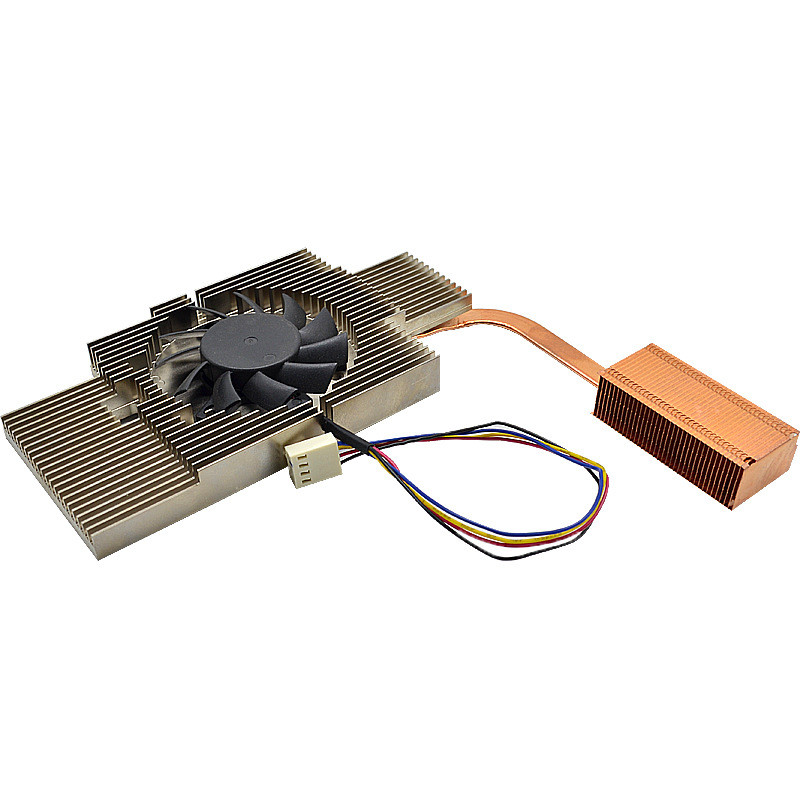

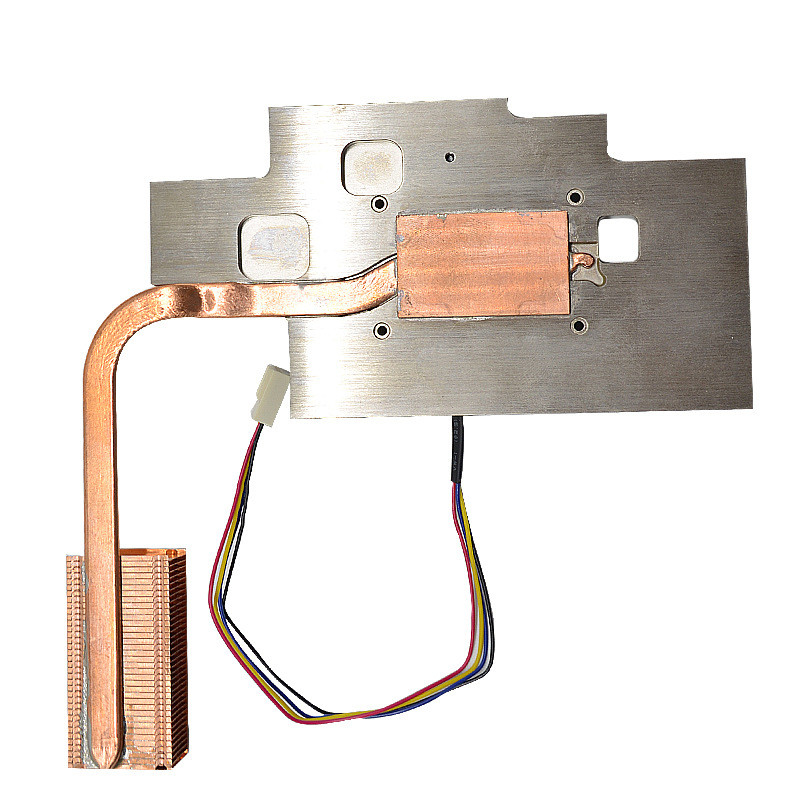

Copper Fin Heat Pipe Radiator With Aluminum Extrusion Heat Sink And Fan
Quick Detail
Raw Material | AL6063 and 4 heat pipe / fan |
Custom Service | Yes, OEM/ODM Service |
Quality System | ISO9001:2015 |
Processing Technology | Cutting/Wood machining/CNC/Riveting |
Surface treatment | plating nickel |
Packing Way | Blister packaging or special packing you would like |
Application Scenario | Electronic equipment heat sink |
MOQ Request | 100/500/1000 |
Description
Heat pipe radiator is a new product produced by using heat pipe technology to make major improvements to many old radiators or heat exchange products and systems. There are two types of heat pipe radiators: natural cooling and forced air cooling. The thermal resistance of air-cooled heat pipe radiator can be made smaller, and it is often used in high-power power supplies.
Note
Side-blown radiator
Side-blowing radiators are extremely common on public graphics cards. We often see "brick" integrated radiators such as the public ATI Radeon HD 5870 and the public GeForce GTX 470 as the most typical side-blown radiators. The side-blowing radiator uses the side air flow generated by the rotation of the turbo fan to suck air from the inside of the chassis, and then pass through the air guide grooves, fins, heat pipes, etc., and discharge the heat to the outside of the chassis through the air outlet at the rear of the graphics card.
The disadvantages of side-blown radiators are mainly insufficient heat dissipation and unsatisfactory noise control.
Since the side-blowing radiator requires a long air guide channel and the fins are arranged inside the channel, a turbo fan is required to ensure a certain amount of air flow to allow air to flow out of the channel at a fast enough speed and take away heat. However, due to its size, the air volume of a turbofan is often unsatisfactory at low speeds. Once it is operated at a high speed, the noise of the cutting airflow of the turbofan blades will rise sharply. In actual use, some public graphics cards with turbo radiators have a core temperature of about 60°C in standby mode, while the core temperature quickly soars to 80-90°C under full load, and the noise will increase accordingly.
Although the side-blowing radiator has obvious disadvantages, in order to ensure that the temperature of the entire system in the chassis will not rise rapidly due to the heat of the graphics card, the mid-to-high-end graphics card in the public version uses an external side-blowing radiator. Only some graphics cards with lower heat output will choose other cooling modes.
Advantages: heat is discharged outside, does not aggravate the heat accumulation inside the case, and the temperature control effect inside the case is excellent (only refers to the outside heat dissipation). Disadvantages: The turbo radiator is noisy and the temperature control effect is not good enough.
The heat pipe radiator has the following advantages:
We can offer the heat pipe radiator service, small qty is acceptable.
Technical Support
We can offer the design and simulation service. For example, our German customer's case.
According to the simulation results,the simulated chip is in compliance with the temperature requirements specficied by customer.
