28W Lighting Diameter 100mm LED Heat Sink Cold Forging Existing Mold

Basic Information
Place of Origin: China
Brand Name: Customized
Certification: ISO9001
Model Number: HEAT SINK-F0491
Minimum Order Quantity: Negotiable
Packaging Details: Blister packaging
Delivery Time: 20-30days
Payment Terms: T/T, Western Union
Supply Ability: 30000 PCS Per month
Price: EXW/FOB/CIF/DDP Raw Material: AL1070
Surface Treatment: Anodizing Black Or Customized Application: 28w Led Lighting
Processing Service: Forged /Cutting, CNC, Anodizing Keyword: Cold Forged Heat Sink
Dimesion: 10*70mm Powder: 28W
High Light:

28W LED Heat Sink

,

AL1070 LED Heat Sink

,

100mm Cold Forged Heat Sink

Existing Mold Diameter 100mm Cold Forging Led Heat Sink For 28W Led Lighting



Quick Detail



Raw Material AL1070/1060
Custom Service Yes, OEM/ODM Service
Quality System ISO9001:2015
Processing Technology Forged/cutting/laser/CNC/Anodizing
Surface treatment  Andizing Black
Packing Way Blister packaging or special packing you would like
Application Scenario LED  heat sink
MOQ Request 100/500/1000





Description



     Cold forging is a metal shaping & manufacturing process in which bar stock is inserted into a die and squeezed into a second closed die. The process, completed is at room temperature or below the metal's austenite temperature; to form a metal into a desired shape or configuration.

    This cold forged heat sink is based aluminum 1070 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use Hydraulic press machine to do the roughcast, the third is that accroding to the drawing, use the wood machine to cut the  outline dimension, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing.


    What is cold forging and hot forging?
The cold forging manufacturing process increases the strength of a metal through strain hardening at a room temperature. On the contrary the hot forging manufacturing process keeps materials from strain hardening at high temperature, which results in optimum yield strength, low hardness and high ductility

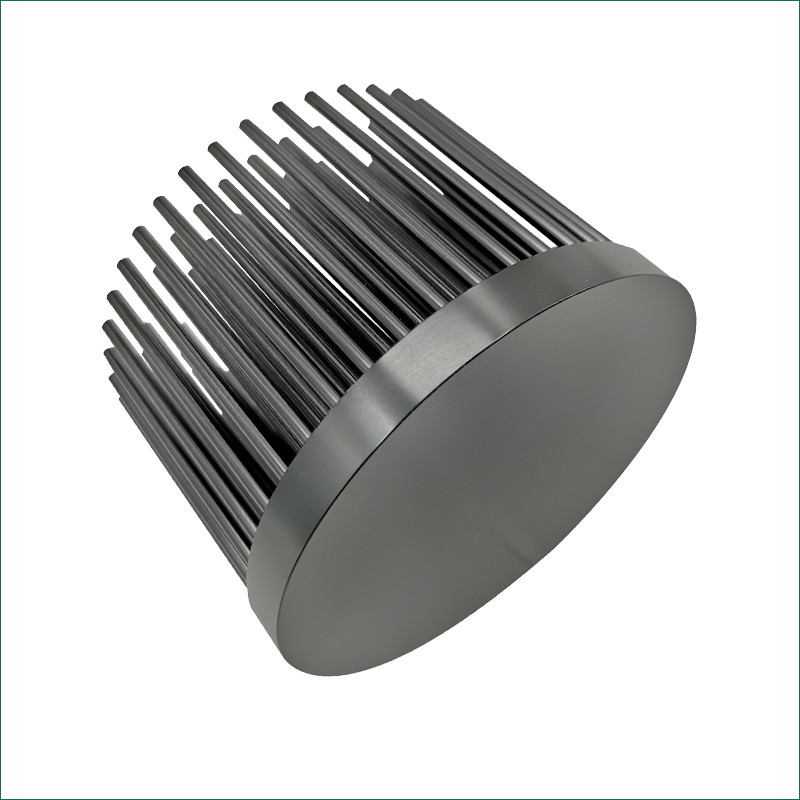

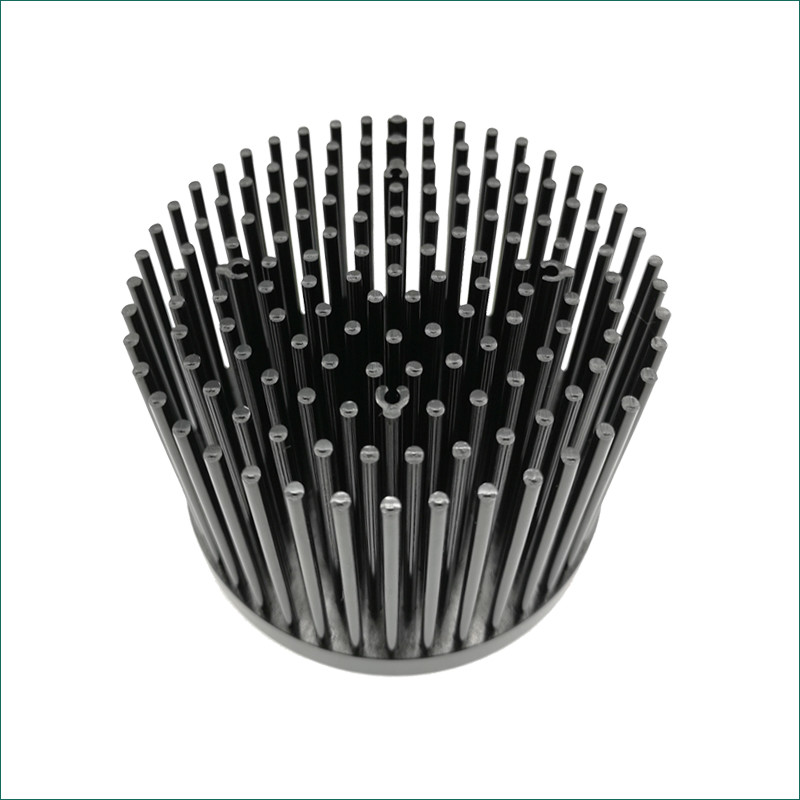

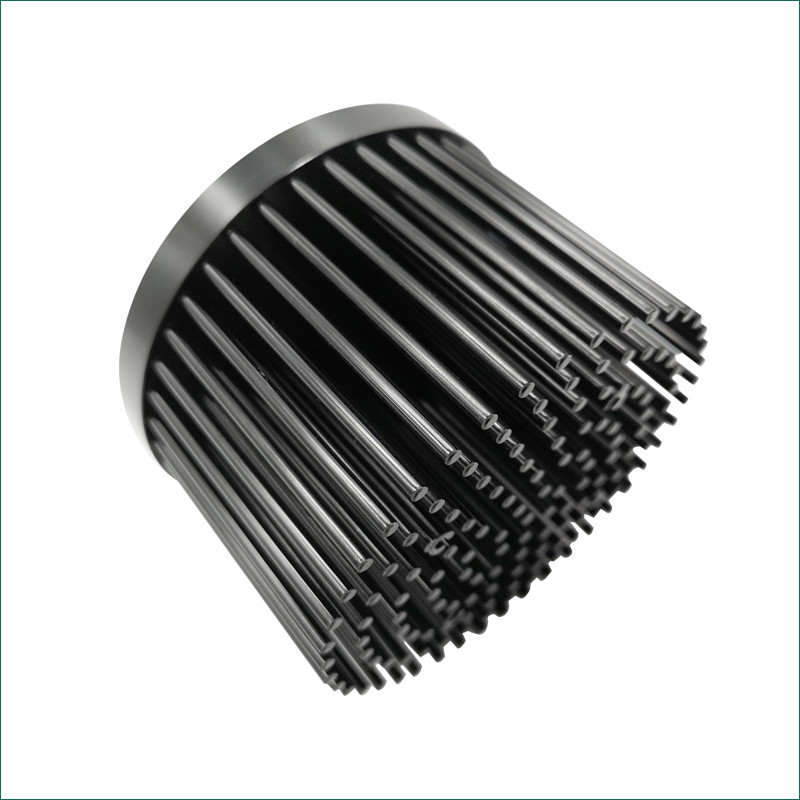

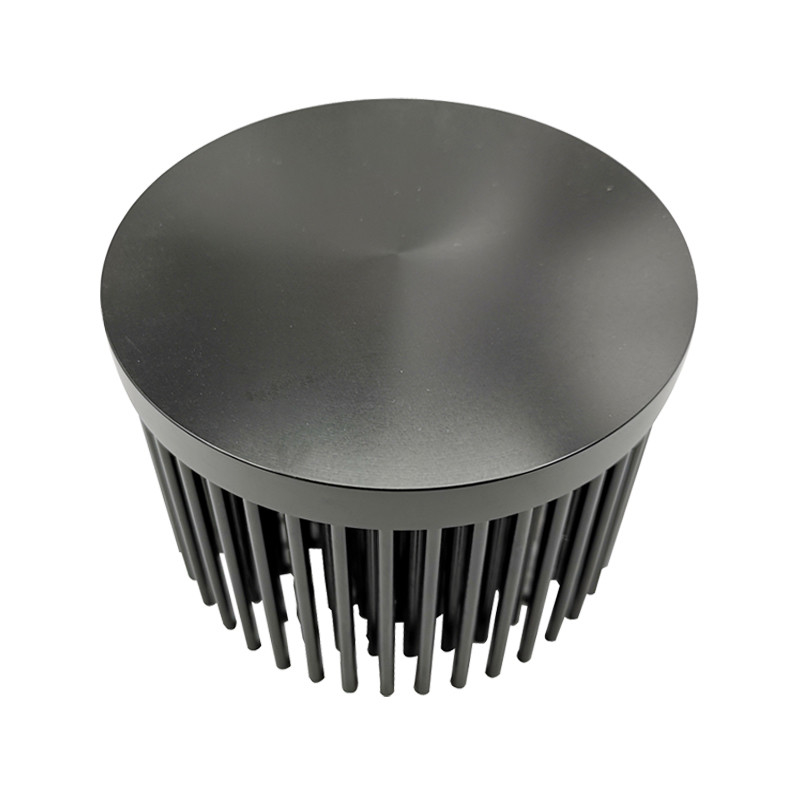

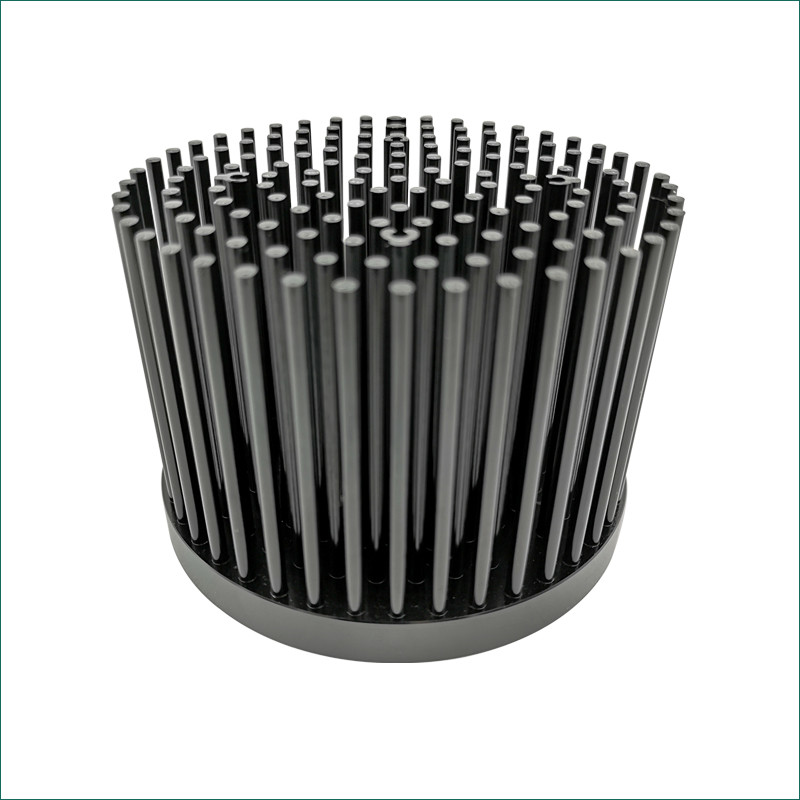

 28W Lighting Diameter 100mm LED Heat Sink Cold Forging Existing Mold 028W Lighting Diameter 100mm LED Heat Sink Cold Forging Existing Mold 128W Lighting Diameter 100mm LED Heat Sink Cold Forging Existing Mold 2

  This cold forging heat sink is suitable for ceiling lamps, downlights, projection lamps, wall lamps.

  Fodor Technology can offer the desing of cold forging heat sink , thermal Simulation Analysis and production service.If you have any cold forigng heat sink inquiry, please send request to Fodor, the mail box is fodor@fodorheatsink.com.
