| Place of Origin: | China |
|---|---|
| Brand Name: | Customized |
| Certification: | Rosh |
| Model Number: | HEAT SINK-F0026 |
| Minimum Order Quantity: | Negotiated |
| Packaging Details: | Blister packaging |
| Delivery Time: | 20-30days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30000 PCS Per month |
| Price: | EXW/FOB/CIF/DDP | Raw Material: | AL1060/1070 |
|---|---|---|---|
| Surface Treatment: | Anodizing Black Or Custom | Application: | Fin Cold Forged Heat Sink |
| Processing Service: | Forged /Cutting, CNC,Anodizing | Delivery Time: | 20-30days |
| Keyword: | Cold Forged Heat Sink | Dimesion: | 75*100*30mm |
| High Light: | Anodizing Black Cold Forging Heat Sink,AL1060 Cold Forging Heat Sink,Led Light Cold Forging Heat Sinks |
||

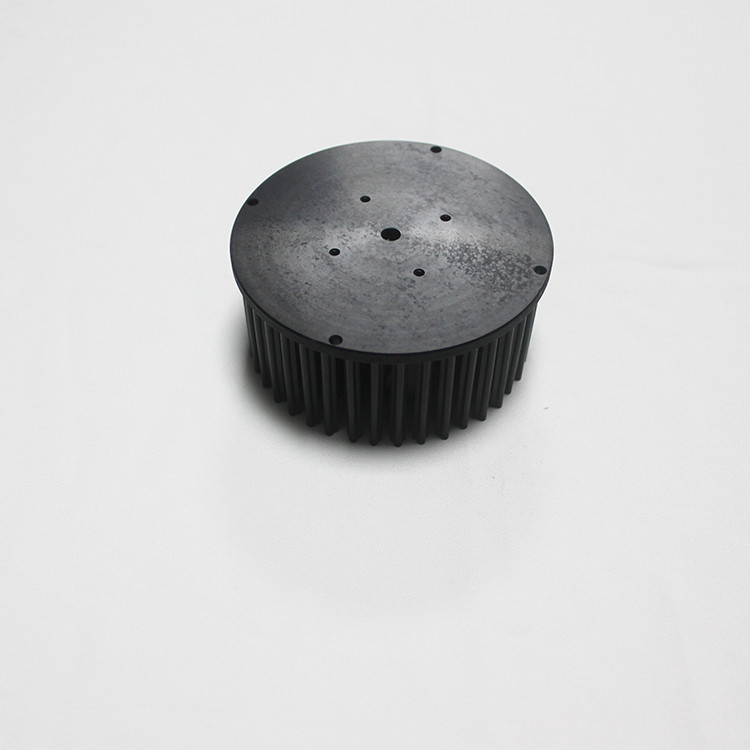

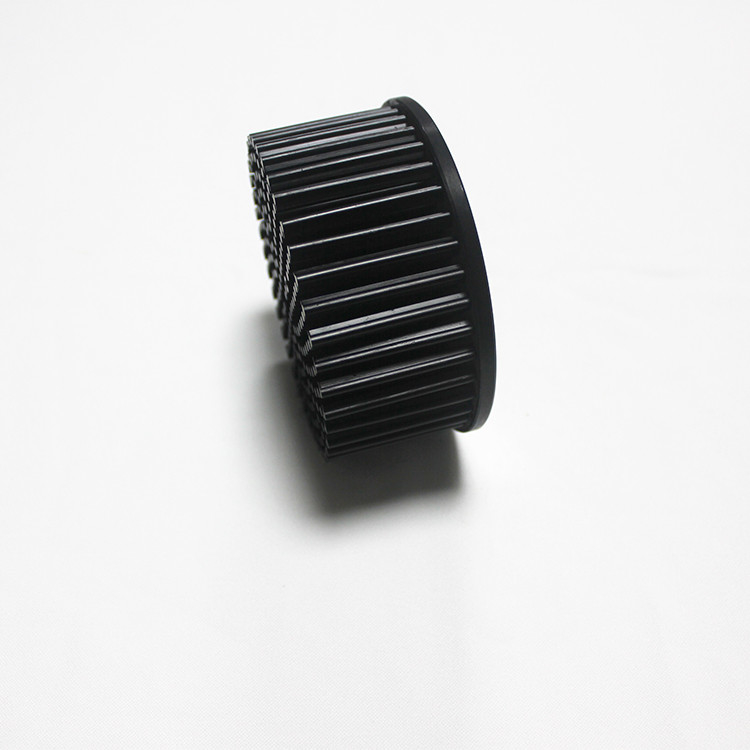

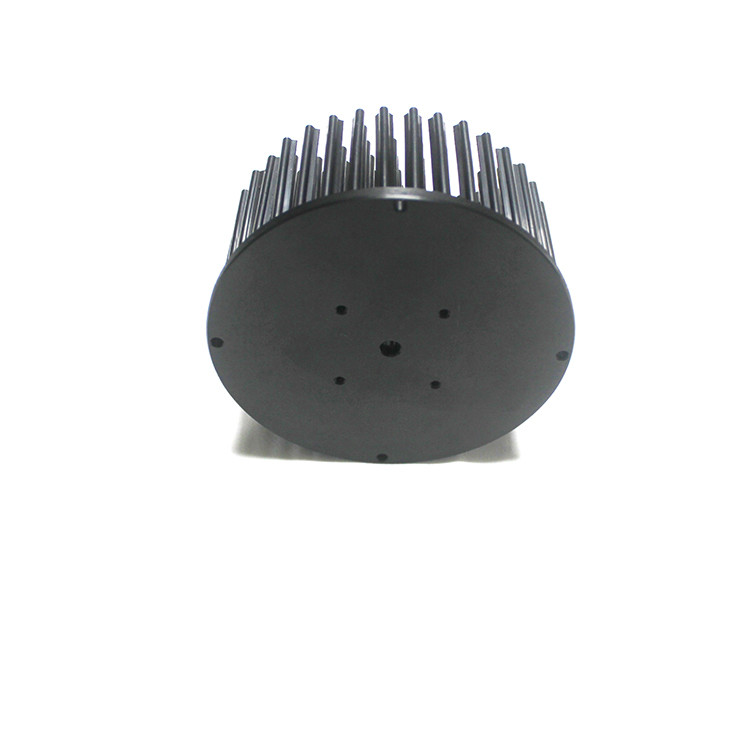

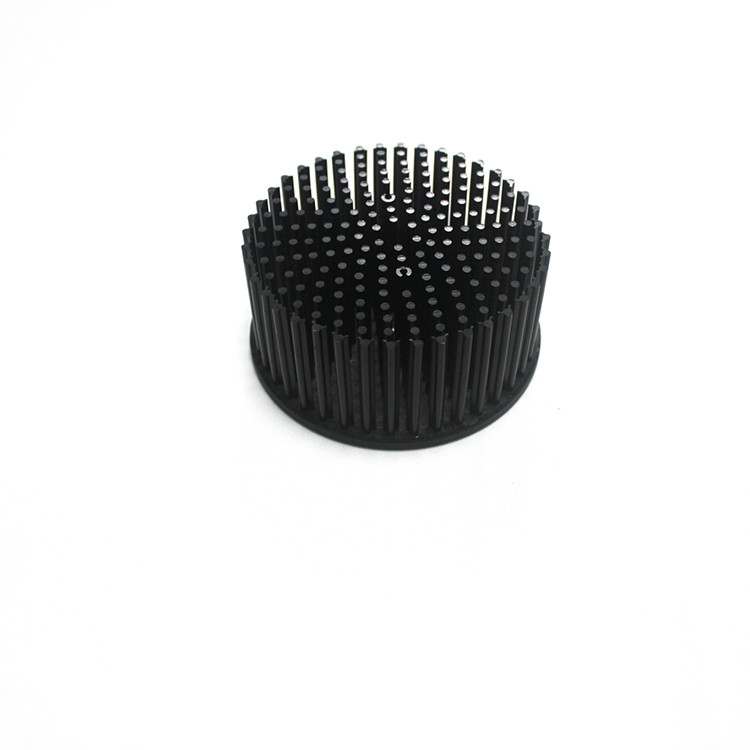

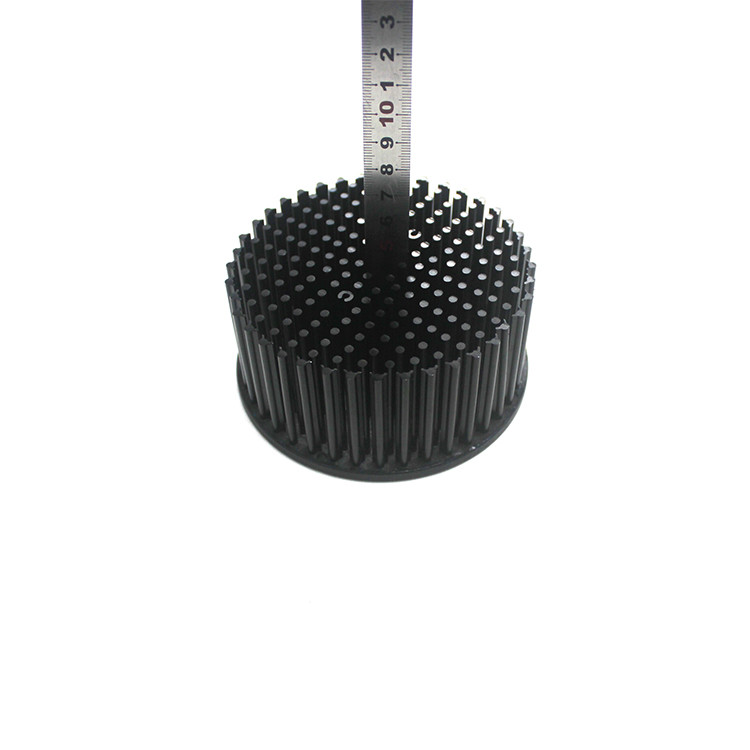

Cold Forging Heat Sink For Led Light With Anodizing Black Dimensions 100X70 Mm
Quick Detail
| Raw Material | AL1070/1060 |
| Custom Service | Yes, OEM/ODM Service |
| Quality System | ISO9001:2015 |
| Processing Technology | Forged/cutting/laser/CNC/Anodizing |
| Surface treatment | Anodizing black |
| Packing Way | Blister packaging or special packing you would like |
| Application Scenario | Electronic equipment heat sink |
| MOQ Request | 100/500/1000 |
Description
This cold forged heat sink is based aluminum 1070 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use Hydraulic press machine to do the roughcast, the third is that accroding to the drawing, use the wood machine to cut the outline dimension, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing.
Note
Cold forged heat sink
An added benefit of this process is that a forged heatsink of the same design can be manufactured with different heights using only one set of forging die. When working with high aspect ratio, or dense fins a forged heatsink has no thermal interface between the fins/pins, and the base which will provide better performance compared with stamped-fin or bonded-fin heat sinks. Heat distribution can be further improved in aluminum heatsinks by embedding a copper inserts into the base during the forging. As this process is fairly expensive, for small volumes it may be worth exploring extrusion with a cross cut to produce square pins. For larger volumes die cast is a good alternative.
Fodor has gained experiences in the manufacturing techniques for high power cold forged heat sink. We have resolved the problems such as the low thermal conductivity of die-casting micro-channels and higher costs for machining micro-channels. We have already applied cold forging heatsink to cooling solutions including high-voltage inverters, wind power converters, and electric motor controllers.
1. Manufactoring process: Cold forging process
2. Material: AL1070
3. Surface treatment: Clear/black/red/gold anodizing
4. Product type: Customized Design
5. Packing: export standard carton box with pallet.
6. Application: Industry/medical/measurement/house
you have any inquiry, please contact us.
A Forged heatsink is manufactured using a modification of this process called cold forging. Cold forging uses high pressure and low temperature to ensure that no air bubbles, or other impurities are trapped in the material. This improves the thermal properties of the heatsink, and increases the density of the material.
Cold forging uses a displacement process to shape the material into the desired shape. Compressive force squeezes the metal between a punch and die at room temperature until the material conforms to the die's contours. Cold forging techniques include rolling, pressing, drawing, spinning, heading, and extruding
Fodor offer customized cold forging heat sink and the other heat sink, for example, aluminum profile heat sink,skived heat sink,die casting heat sink,cold plate, if you need any heat sink, please contact fodor .
