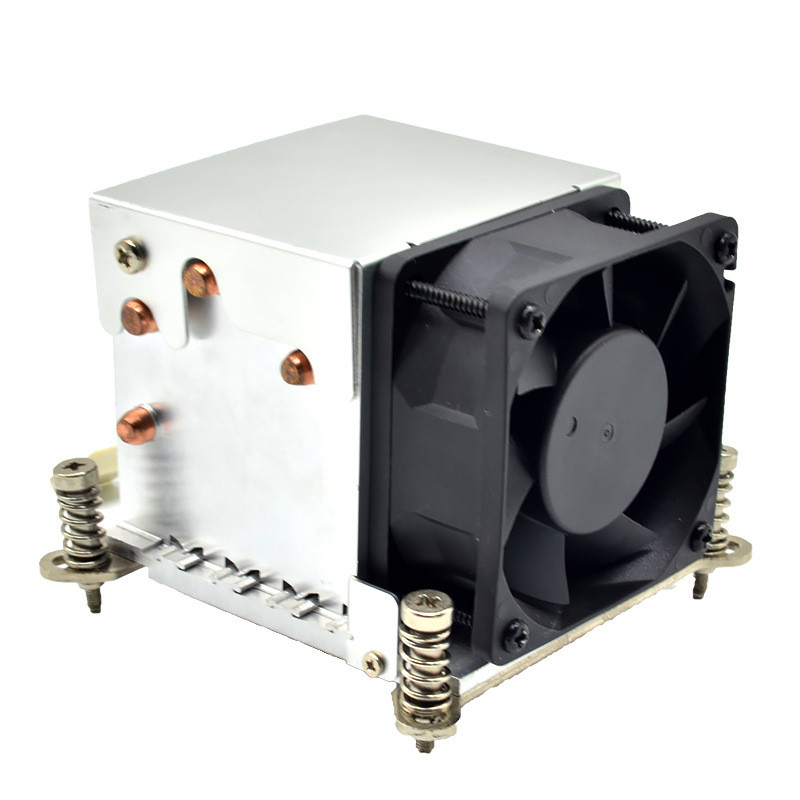

Anti Corrosion Heat Pipe Radiator

Basic Information
Place of Origin: China
Brand Name: Customized
Certification: ISO9001:2015
Model Number: HEAT SINK-H0015
Minimum Order Quantity: Negotiable
Packaging Details: Blister packaging
Delivery Time: 20-30days
Payment Terms: T/T, Western Union
Supply Ability: 30000 PCS Per month
Price: EXW/FOB/CIF/DDP Raw Material: AL5052/AL1050/Cooper
Surface Treatment: Plating Nickel Application: Heat Sink
Processing Service: Cutting, CNC,Anodizing Delivery Time: 20-30days
Keyword: Heat Pipe Radiator
High Light:

Anti Corrosion Heat Pipe Radiator


Durable Single Fan Heat Pipe Radiator


ISO9001 Heat Sink With Fan

Exsiting Single Fan CPU Heat Pipe Radiator With Screws For Easy To Install


Quick Detail


Raw Material AL5052 and 4 heat pipe
Custom Service Yes, OEM/ODM Service
Quality System ISO9001:2015
Processing Technology Cutting/Wood machining/CNC/Riveting
Surface treatment plating nickel
Packing Way Blister packaging or special packing you would like
Application Scenario Electronic equipment heat sink
MOQ Request 100/500/1000




    Heat pipe radiator is a new product produced by using heat pipe technology to make major improvements to many old radiators or heat exchange products and systems. There are two types of heat pipe radiators: natural cooling and forced air cooling. The thermal resistance of air-cooled heat pipe radiator can be made smaller, and it is often used in high-power power supplies.




Air cooling + heat sink type
Ordinary "fan + heat sink" structure radiator "fan + heat sink" structure has a long history. It has been used on a large scale since the birth of the graphics card, and it has been in use ever since. In addition to changes in volume and craftsmanship, its basic layout is still "fan + heat sink".
The early "fan + heat sink" structure belonged to a more "regular" type. For example, a large piece of cast aluminum or copper core is matched with cast aluminum heat dissipation fins to form a round or square appearance, and then a fan is placed in the middle circular groove. The biggest advantage of this classic structure is that it can make good use of the wind flow. The wind blowing around the fan can take away the heat on the heat sink. As the graphics card heats up, it is difficult to quickly dissipate heat simply relying on the heat sink and the fan. Therefore, some manufacturers have made improvements to the structure of the heat sink. A common improvement method is to press and fix the aluminum and copper sheets to form a bowl-shaped structure, and place the fan in the center of the "bowl". Compared with the traditional thick fin structure, this structure has a larger heat dissipation area and a better heat dissipation effect.
Although the "fan + heat sink" structure is classic, it also has disadvantages. First of all, this structure relies solely on the thermal conductivity of the metal itself, and cannot conduct heat away in time when facing the high-power core, resulting in a backlog of heat in the core and insufficient heat conduction efficiency. Secondly, the heat dissipation area of ​​the heat sink of this structure is difficult to increase. Although large-area fins can be used and multi-fan mode can be used to enhance the airflow, the farther the heat sink is from the core, the worse the heat dissipation efficiency, and the heat is difficult to evenly distribute to the heat dissipation. Chip. Advantages: low price, wide application, diverse designs.
Disadvantages: Poor heat dissipation for high-power graphics cards, prone to heat accumulation.


The heat pipe radiator has the following advantages:


We can offer the heat pipe radiator service, small qty is acceptable.

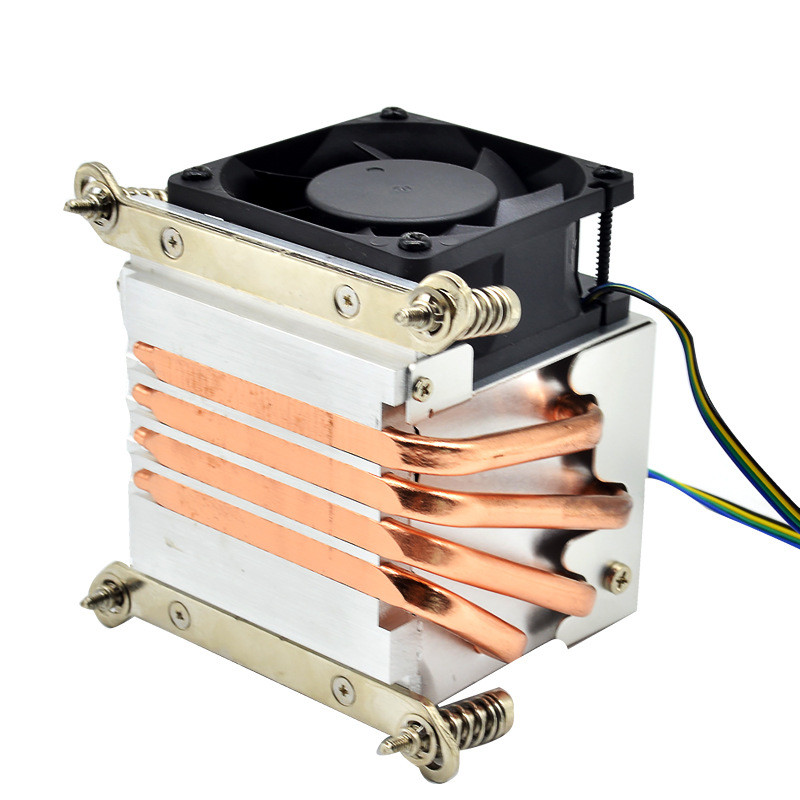

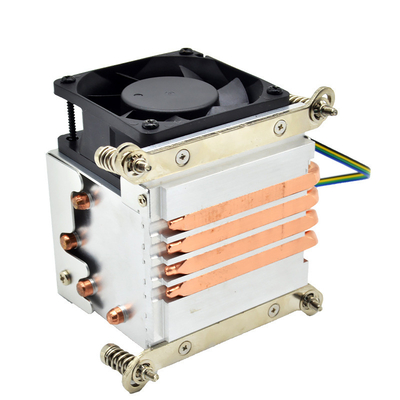

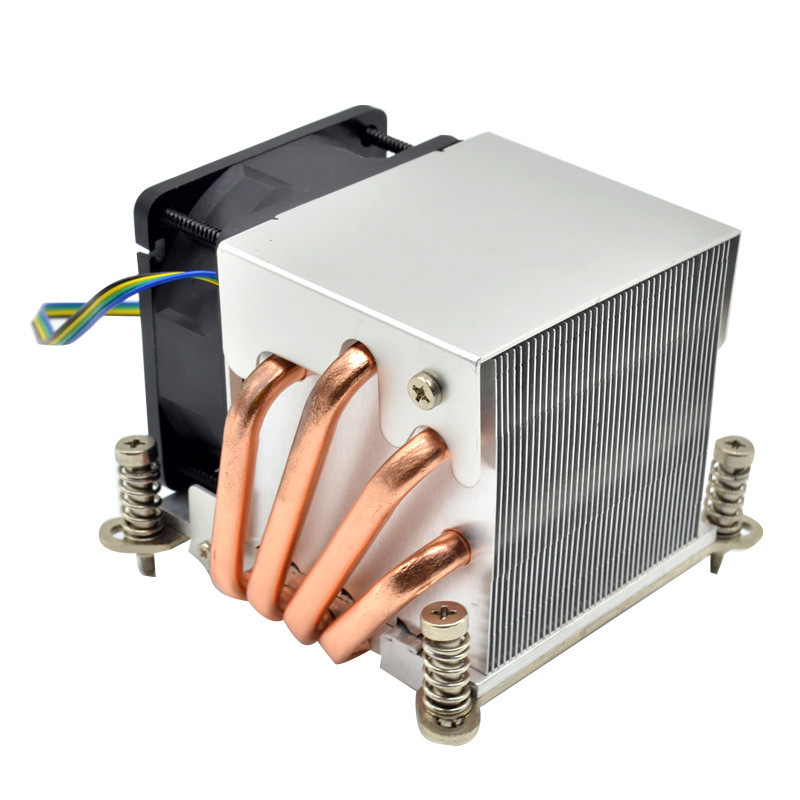

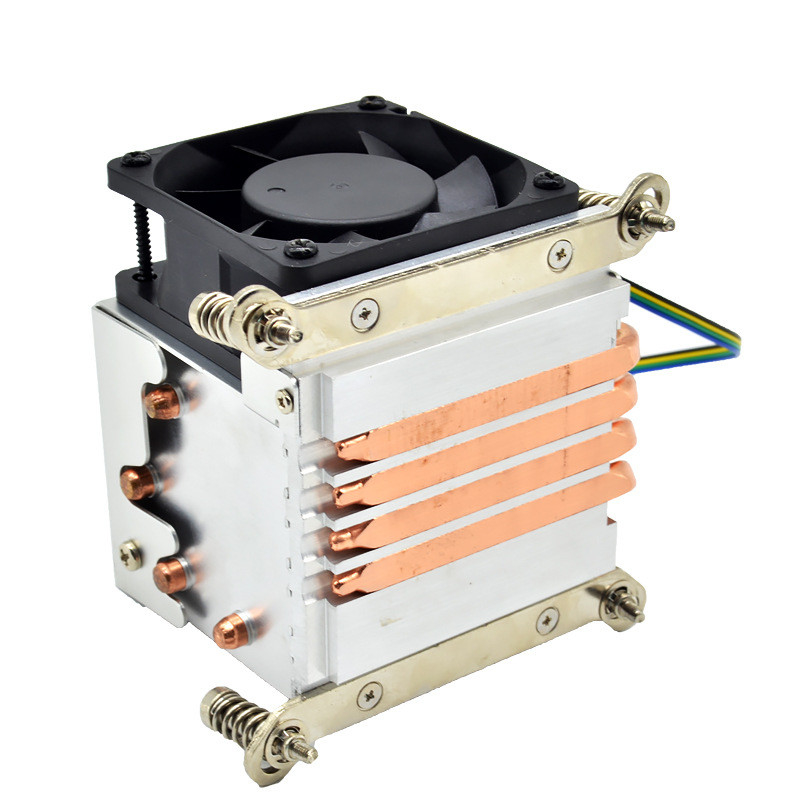

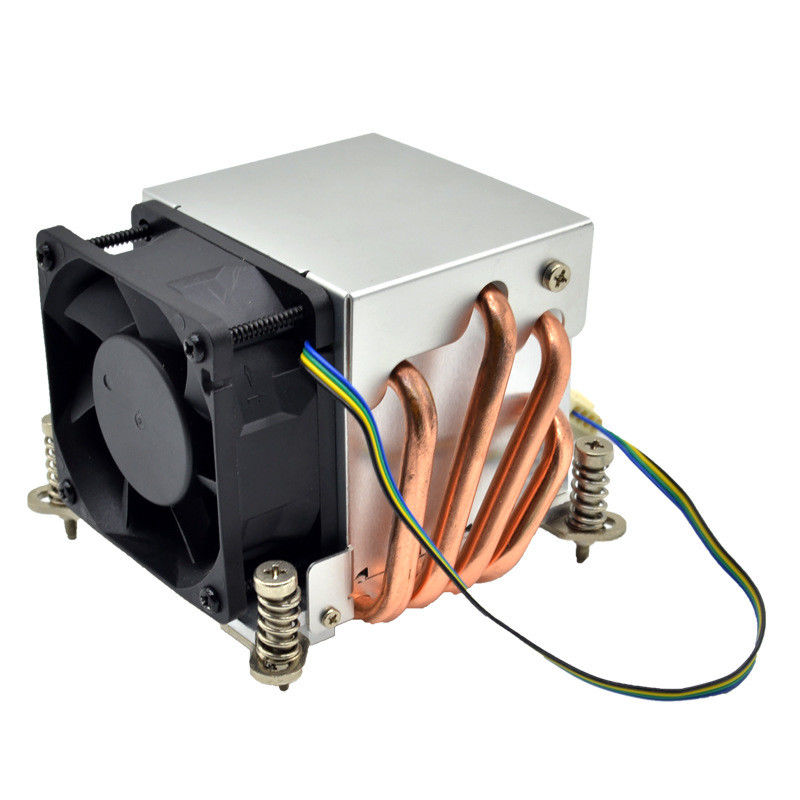

Anti Corrosion Heat Pipe Radiator 0Anti Corrosion Heat Pipe Radiator 1Anti Corrosion Heat Pipe Radiator 2Anti Corrosion Heat Pipe Radiator 3


Technical Support

We can offer the design and simulation service. For example, our German customer's case.

According to the simulation results,the simulated chip is in compliance with the temperature requirements specficied by customer.

Anti Corrosion Heat Pipe Radiator 4
