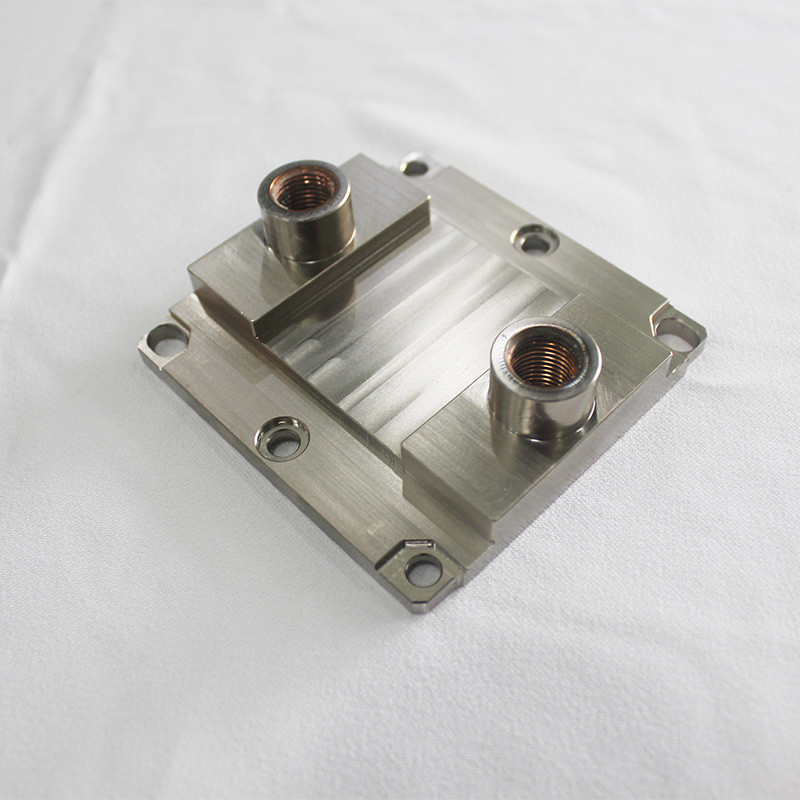

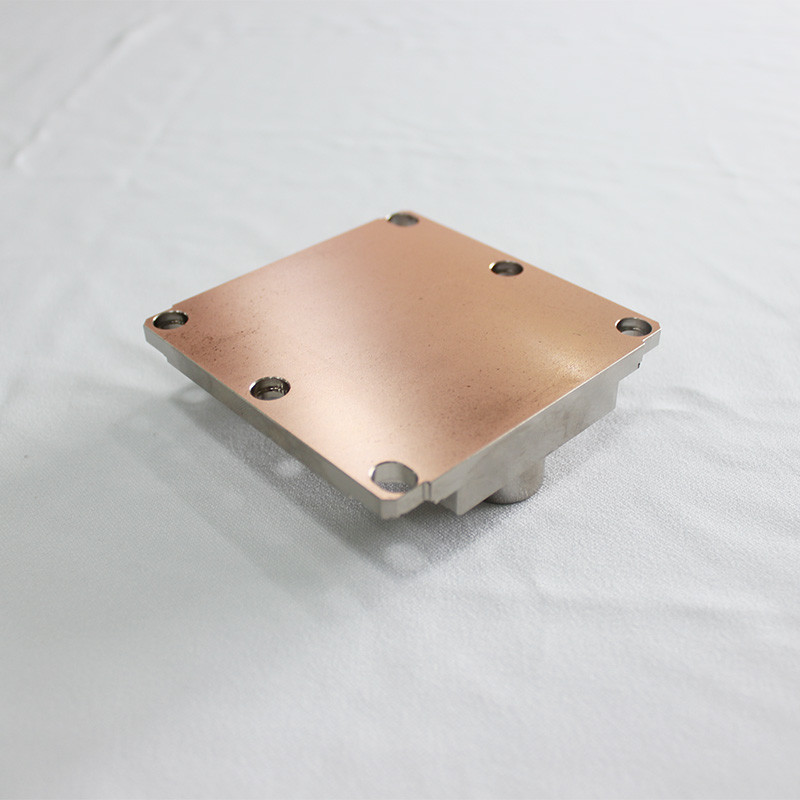

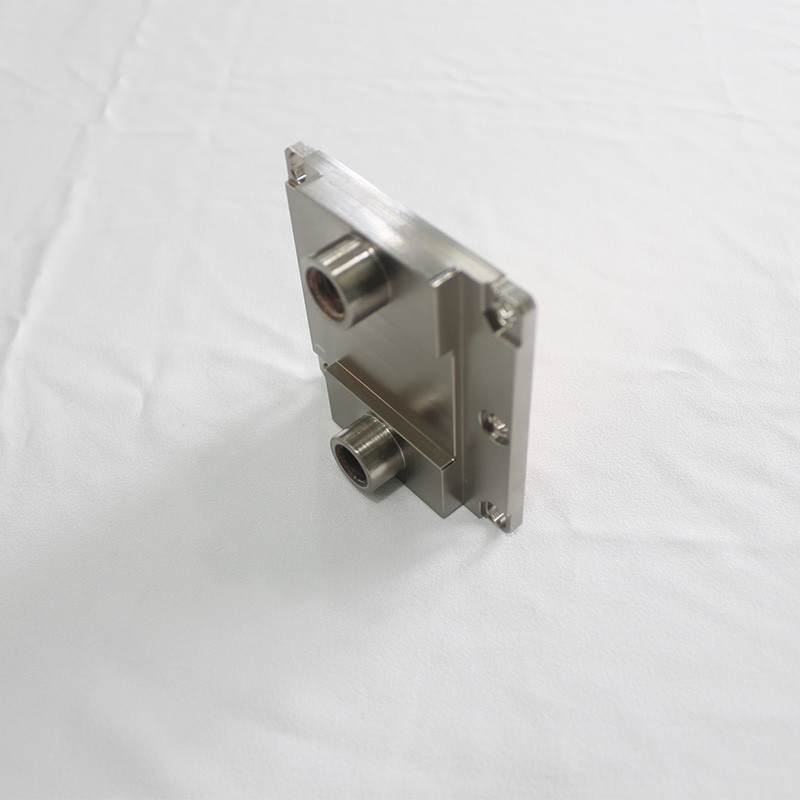

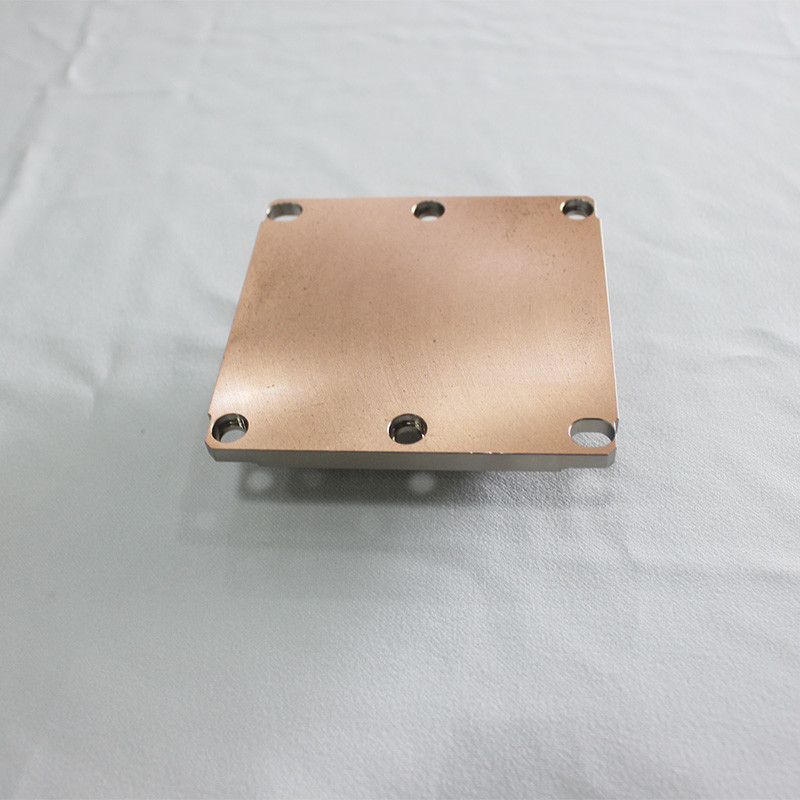

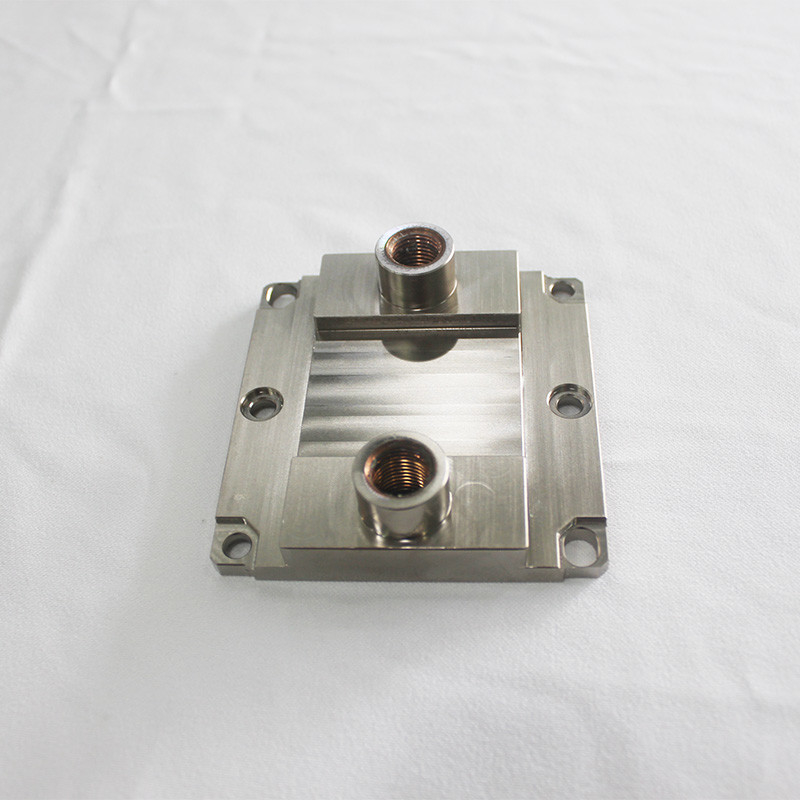

Water Cooled Liquid Heat Sink With Plating Nickel Anodizing Aluminum

Copper And Aluminum Composite Liquid Heat Sink Of Surface Treatment Plating Nickel With ISO9001

Quick Detail

Description

    This heat sink is based aluminum profile 6063-T5 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, cutting right length, the third is that accroding to the drawing, use the wood machine to cut the  outline dimension, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing .

Note

Liquid heat sinks are also called water-cooled radiators and liquid-cooled radiators. They are generally made of aluminum and used to dissipate heat. They are mainly used in high-power devices, such as servers, inverters, inverters, APF, SVG, IGBTs, etc., remember to have A company called Fodor Radiator Factory specializes in aluminum radiators, water-cooling plates, etc. This will install the heating element on the water-cooling plate to dissipate heat, and the internal liquid is specially designated.

Technical Support

What parameters should be provided in the thermal design of the water-cooled plate?
When designing the heat dissipation of the water-cooling plate, it is necessary to provide the model of the water-cooling plate (that is, the size of the water-cooling plate), the drilling position of the water-cooling plate, the target to be achieved (including temperature difference, water pressure difference, etc.), the parameters of the joint, the power of the heat source, and Calorific value and other data

We can offer the design and simulation service. For example, our German customer's case.

According to the simulation results, the simulated chip is in compliance with the temperature requirements specficied by customer.
