OEM Water Cooled Heat Sink Cold Plate Waterproof High Precision

Basic Information
Place of Origin: China
Brand Name: Customized
Certification: ISO9001:2015
Model Number: LIQUID HEAT SINK-L0006
Minimum Order Quantity: Negotiable
Packaging Details: Blister packaging
Delivery Time: 20-30days
Payment Terms: T/T, Western Union
Supply Ability: 30000 PCS Per month
Price: EXW/FOB/CIF/DDP Raw Material: Aluminum
Surface Treatment: Plating Nickel Application: Heat Sink
Processing Service: Cutting, CNC,Anodizing Delivery Time: 20-30days
Keyword: Liquid Heat Sink
High Light:

Waterproof Heat Sink Cold Plate

,

High Precision Heat Sink Cold Plate

,

OEM Water Cooled Cold Plate

Friction Welding Liquid Heat Sink With Technology Support And ISO 9001



Quick Detail



Raw Material AL1050
Custom Service Yes, OEM/ODM Service
Quality System ISO9001:2015
Processing Technology Cutting/Wood machining/CNC/Riveting
Surface treatment Plating nickel
Packing Way Blister packaging or special packing you would like
Application Scenario Electronic equipment heat sink
MOQ Request 100/500/1000





Description

    This heat sink is based aluminum profile 6063-T5 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, cutting right length, the third is that accroding to the drawing, use the wood machine to cut the  outline dimension, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing .





Note

Liquid heat sinks are also called water-cooled radiators and liquid-cooled radiators. They are generally made of aluminum and used to dissipate heat. They are mainly used in high-power devices, such as servers, inverters, inverters, APF, SVG, IGBTs, etc., remember to have A company called Fodor Radiator Factory specializes in aluminum radiators, water-cooling plates, etc. This will install the heating element on the water-cooling plate to dissipate heat, and the internal liquid is specially designated.



How is the quality of the water-cooled plate determined?
The quality judgment of water-cooled plate should start from three aspects:
(1) To see the performance, you need to go through the actual test to see the effect. Let the water-cooled board first use the test simulation software to test, get the data, and then put it on the machine for the actual test to see whether the result of the comparison between the two sets of data meets the design requirements. Wenxuan Thermal Energy does just that.
(2) Looking at the process, the water-cooling plate process involves a lot of grooves, pressure pipes, flying surfaces, etc., and the unmature process will cause water leakage and other undesirable phenomena. The surface of the water-cooling plate with mature technology is smooth and the copper tube and the substrate are welded very well. Well, there are no gaps, each interface is stable, and the stability is strong.



What parameters should be provided in the thermal design of the water-cooled plate?
When designing the heat dissipation of the water-cooling plate, it is necessary to provide the model of the water-cooling plate (that is, the size of the water-cooling plate), the drilling position of the water-cooling plate, the target to be achieved (including temperature difference, water pressure difference, etc.), the parameters of the joint, the power of the heat source, and Calorific value and other data



We can offer the design and simulation service. For example, our German customer's case.

According to the simulation results,the simulated chip is in compliance with the temperature requirements specficied by customer.

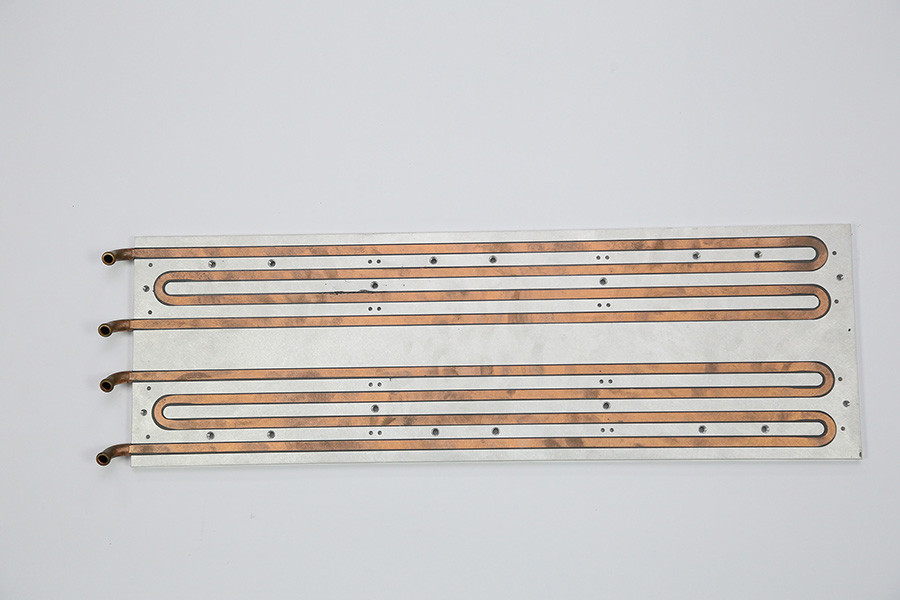

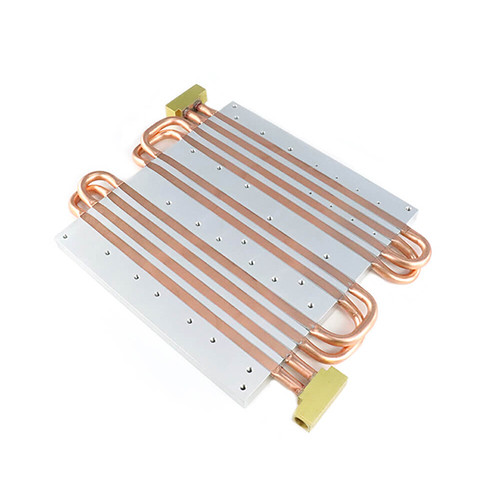

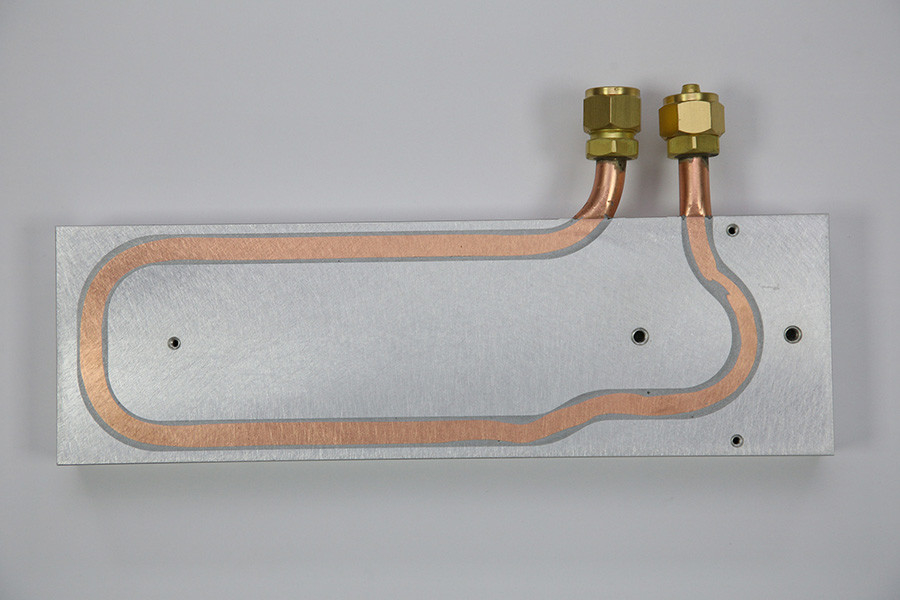

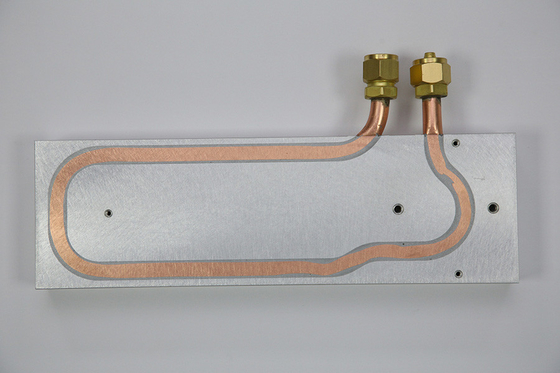

 OEM Water Cooled Heat Sink Cold Plate Waterproof High Precision 0OEM Water Cooled Heat Sink Cold Plate Waterproof High Precision 1OEM Water Cooled Heat Sink Cold Plate Waterproof High Precision 2OEM Water Cooled Heat Sink Cold Plate Waterproof High Precision 3





Technical Support

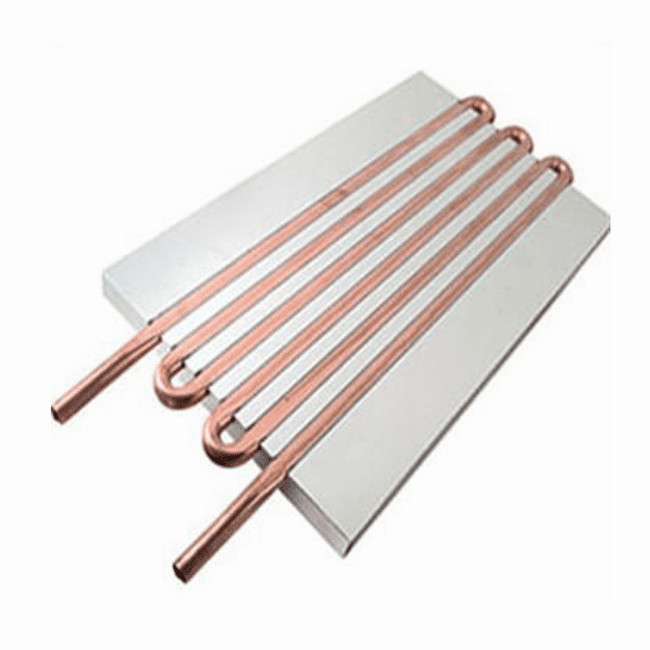

OEM Water Cooled Heat Sink Cold Plate Waterproof High Precision 4
