Waterproof Cold Plate Liquid Heat Sink For Power Electronics Anti Rust ODM

Basic Information
Place of Origin: China
Brand Name: Customized
Certification: ISO9001:2015
Model Number: LIQUID HEAT SINK-L0007
Minimum Order Quantity: Negotiable
Packaging Details: Blister packaging
Delivery Time: 20-30days
Payment Terms: T/T, Western Union
Supply Ability: 30000 PCS Per month
Price: EXW/FOB/CIF/DDP Raw Material: Aluminum
Surface Treatment: Plating Nickel Application: Heat Sink
Processing Service: Cutting, CNC,Anodizing Delivery Time: 20-30days
Keyword: Liquid Heat Sink
High Light:

ODM Liquid Heat Sink


Waterproof Liquid Heat Sink


Anti Rust Cold Plate Heat Sink

Reliable And High Performace Liquid Heat Sink For Power Electronics


Quick Detail


Raw Material AL1050
Custom Service Yes, OEM/ODM Service
Quality System ISO9001:2015
Processing Technology Cutting/Wood machining/CNC/Riveting
Surface treatment Plating nickel
Packing Way Blister packaging or special packing you would like
Application Scenario Electronic equipment heat sink
MOQ Request 100/500/1000




    This heat sink is based aluminum profile 6063-T5 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, cutting right length, the third is that accroding to the drawing, use the wood machine to cut the  outline dimension, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing .




Liquid heat sinks are also called water-cooled radiators and liquid-cooled radiators. They are generally made of aluminum and used to dissipate heat. They are mainly used in high-power devices, such as servers, inverters, inverters, APF, SVG, IGBTs, etc., remember to have A company called Fodor Radiator Factory specializes in aluminum radiators, water-cooling plates, etc. This will install the heating element on the water-cooling plate to dissipate heat, and the internal liquid is specially designated.



Customized Liquid Cooled Heatsinks

With tight collaboration with our customers, we can design and produce almost any kind of copper or aluminium liquid cooled heatsink (other materials on demand). Our designs take in consideration the internal situation of the power chips and an especific water circuit is designed for the optimal refrigeration of the power module. Do not hesitate to ask for your application needs.

Wide Range of Liquid Cooled Heatsinks

Copper and aluminium liquid cooled heatsinks with internal channel for semiconductor cooling through water, glycol and/or oil. Appropriate for high power converters in industrial facilities with cooling circuit systems and heat exchangers. We have a standard range and we can customise any design you require. The new RG82000 series implements new fabrication FSW technology for a very reliable and high performace coldplates. RG78000 series has been specially designed for IHM/IHV y PrimePACK™3 modules. RG77000 as a low cost solution with inserted cooling circuit. RG75000 series for press-pack devices and RG76000 for 62 mm completes the standard product range from our company.


What parameters should be provided in the thermal design of the water-cooled plate?
When designing the heat dissipation of the water-cooling plate, it is necessary to provide the model of the water-cooling plate (that is, the size of the water-cooling plate), the drilling position of the water-cooling plate, the target to be achieved (including temperature difference, water pressure difference, etc.), the parameters of the joint, the power of the heat source, and Calorific value and other data


We can offer the design and simulation service. For example, our German customer's case.

According to the simulation results,the simulated chip is in compliance with the temperature requirements specficied by customer.

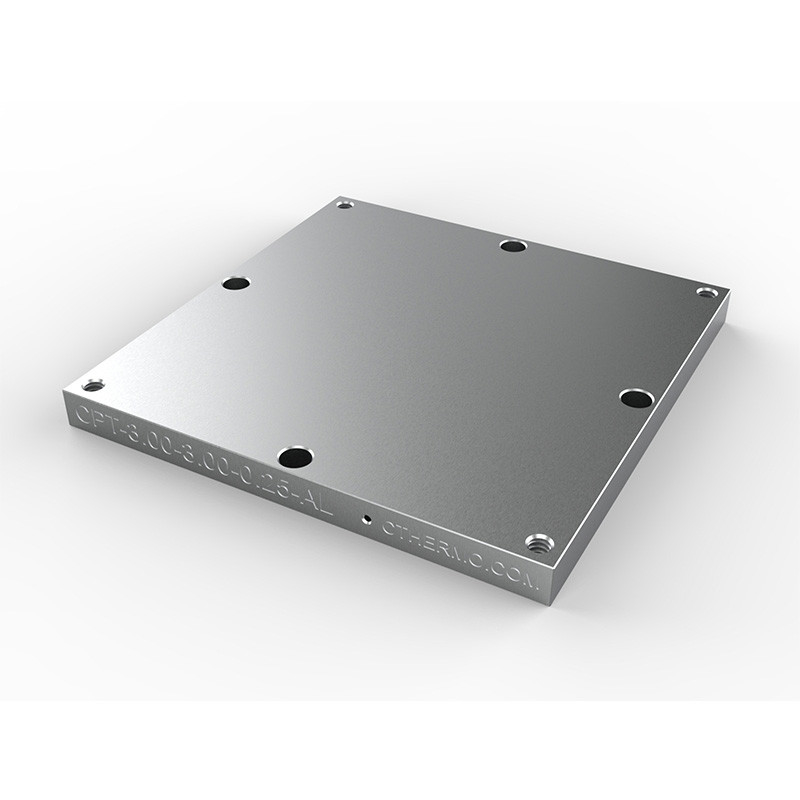

 Waterproof Cold Plate Liquid Heat Sink For Power Electronics Anti Rust ODM 0

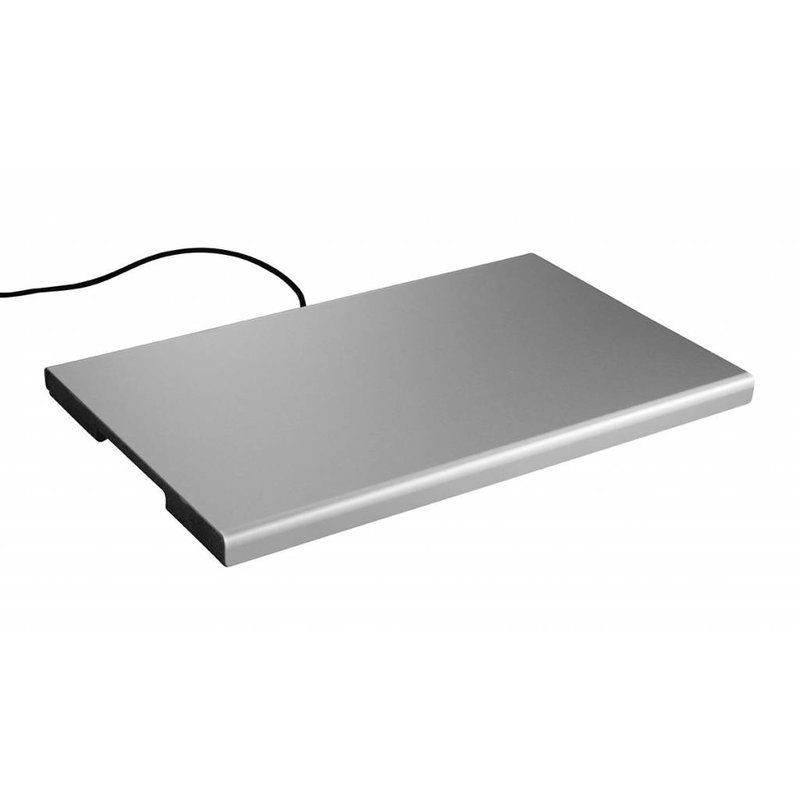

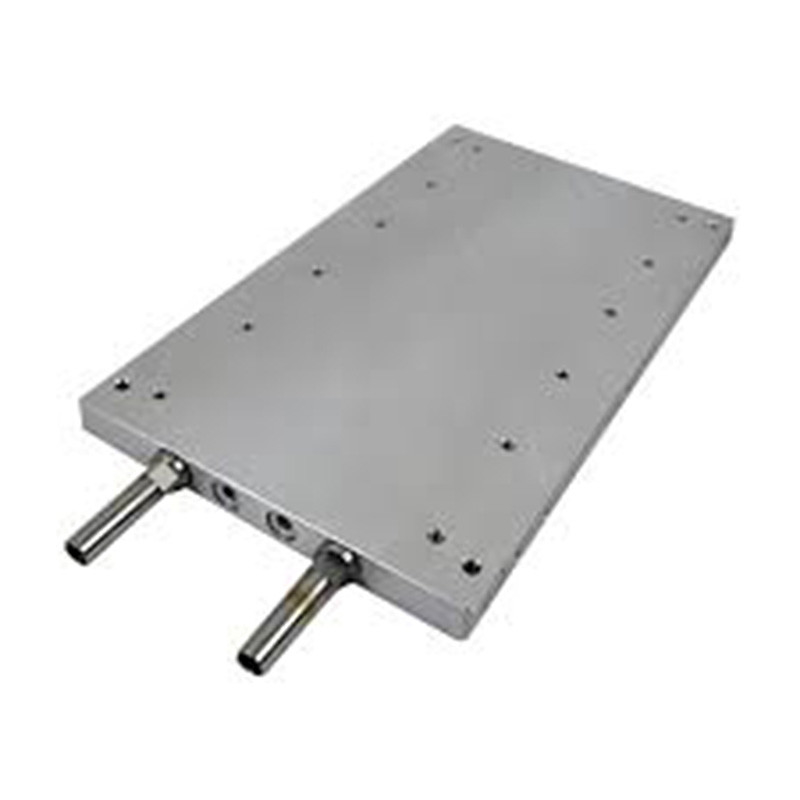

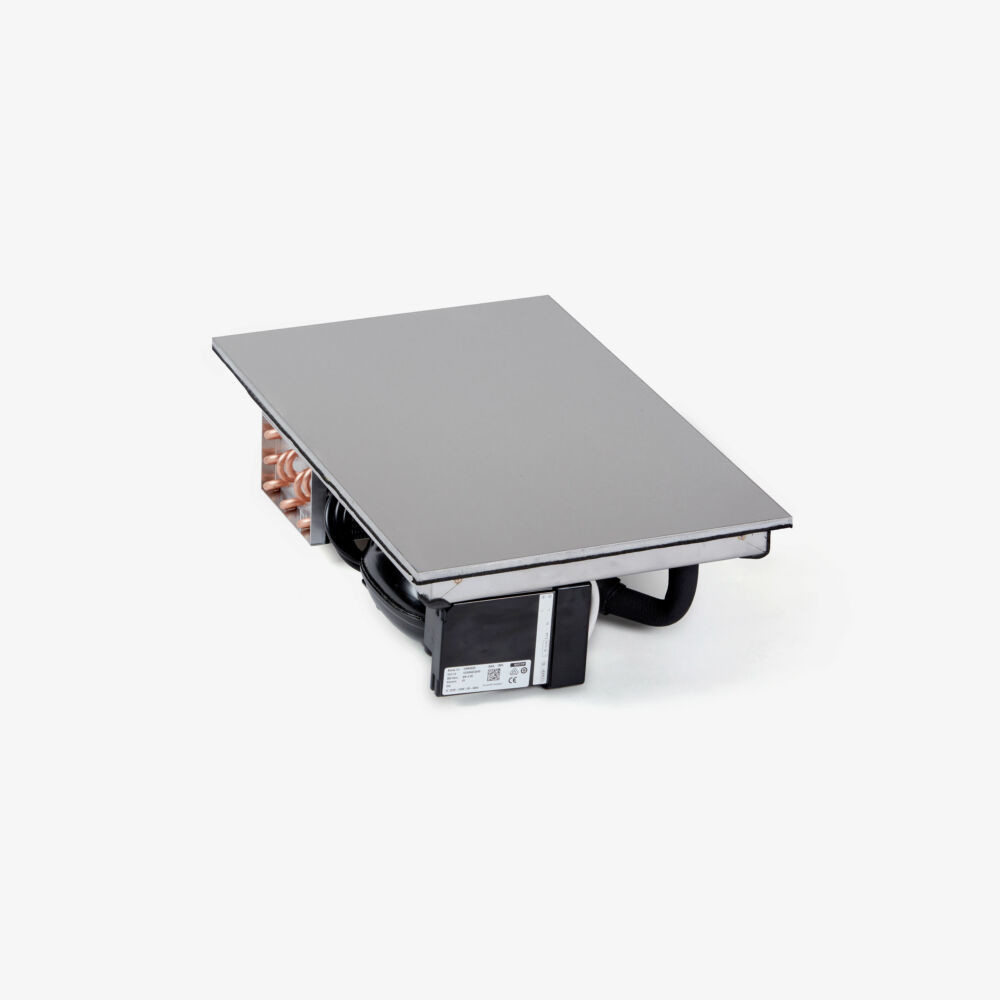

Waterproof Cold Plate Liquid Heat Sink For Power Electronics Anti Rust ODM 1Waterproof Cold Plate Liquid Heat Sink For Power Electronics Anti Rust ODM 2Waterproof Cold Plate Liquid Heat Sink For Power Electronics Anti Rust ODM 3



Technical Support

Waterproof Cold Plate Liquid Heat Sink For Power Electronics Anti Rust ODM 4
