Aluminum High Fin Density Skived Fin Heat Sink For New Energy Vehicle

Basic Information
Place of Origin: China
Brand Name: Customized
Certification: ISO9001:2015
Model Number: HEAT SINK-S0028
Minimum Order Quantity: Negotiable
Packaging Details: Blister packaging
Delivery Time: 20-30days
Payment Terms: T/T, Western Union
Supply Ability: 30000 PCS Per month
Price: EXW/FOB/CIF/DDP Raw Material: Copper Or Aluminum
Surface Treatment: Deactivation Application: Copper Skived Fin Heat Sink
Processing Service: CNC, Material: C1100 Or AL1060
High Light:

C1100 Skived Fin Heat Sink


NEV Skived Fin Heat Sink


High Fin Density Aluminum Heat Sink

Aluminum High Fin Density Skived Fin Heat Sink For New Energy Vehicle

Description Of Aluminum Heat Sink

This heat sink is based copper /Aluminum aterial to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, cutting right length, the third is that accroding to the drawing, use the wood machine to cut the outline dimension, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing .

The Skived fin, also known as skiving technology, simply takes an entire piece of aluminum or copper and uses the special skived machine to cut out fins with standard spacing and a certain thickness and height. Because of using high precision cutting technology, the integration of the forming, relative to other processing technology, the same volume of raw materials can be cut out more heat dissipation area, the heat transfer performance is more stable, in the same condition, the cooling performance is more than 1.5~2 times of the efficiency of traditional bonded fin or soldering heat sink, thus greatly improve heat dissipation efficiency and extend the service life of heating components.


Specification Of Skived Heat Sink


Raw Material Copper/aluminum
Custom Service Yes, OEM/ODM Service
Quality System ISO9001:2015
Processing Technology CNC Gear /Wood machining/CNC/Riveting
Surface treatment Deactivation
Packing Way Blister packaging or special packing you would like
Application Scenario Electronic equipment heat sink
MOQ Request 100/500/1000

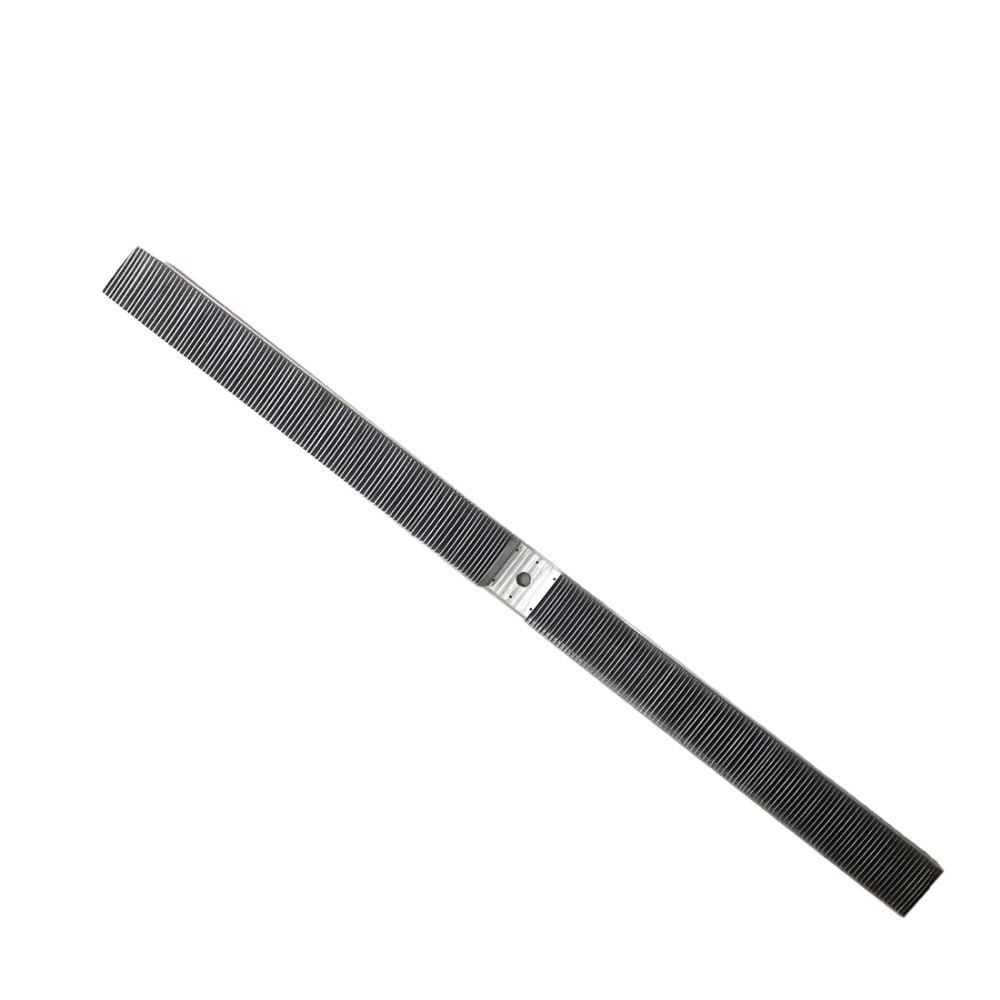

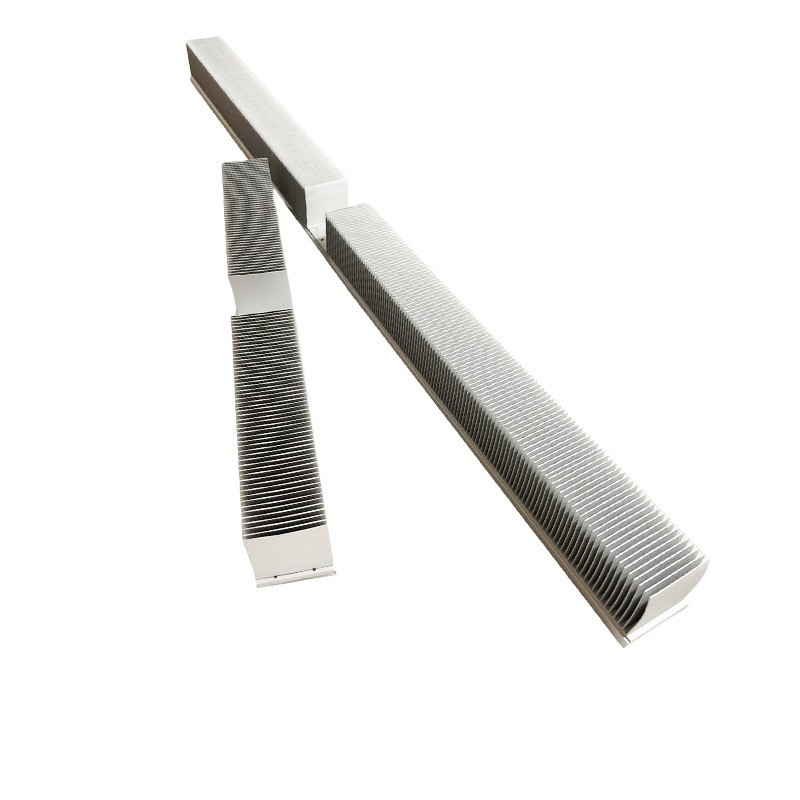

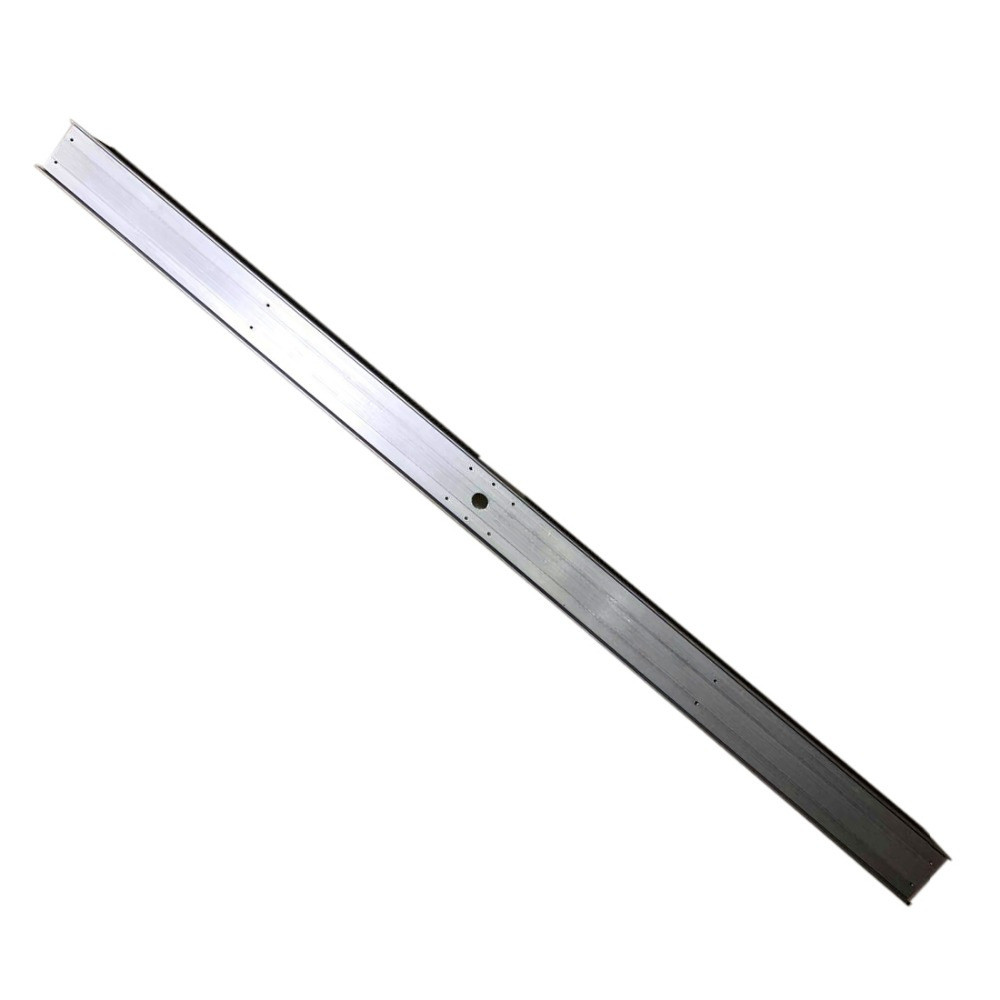

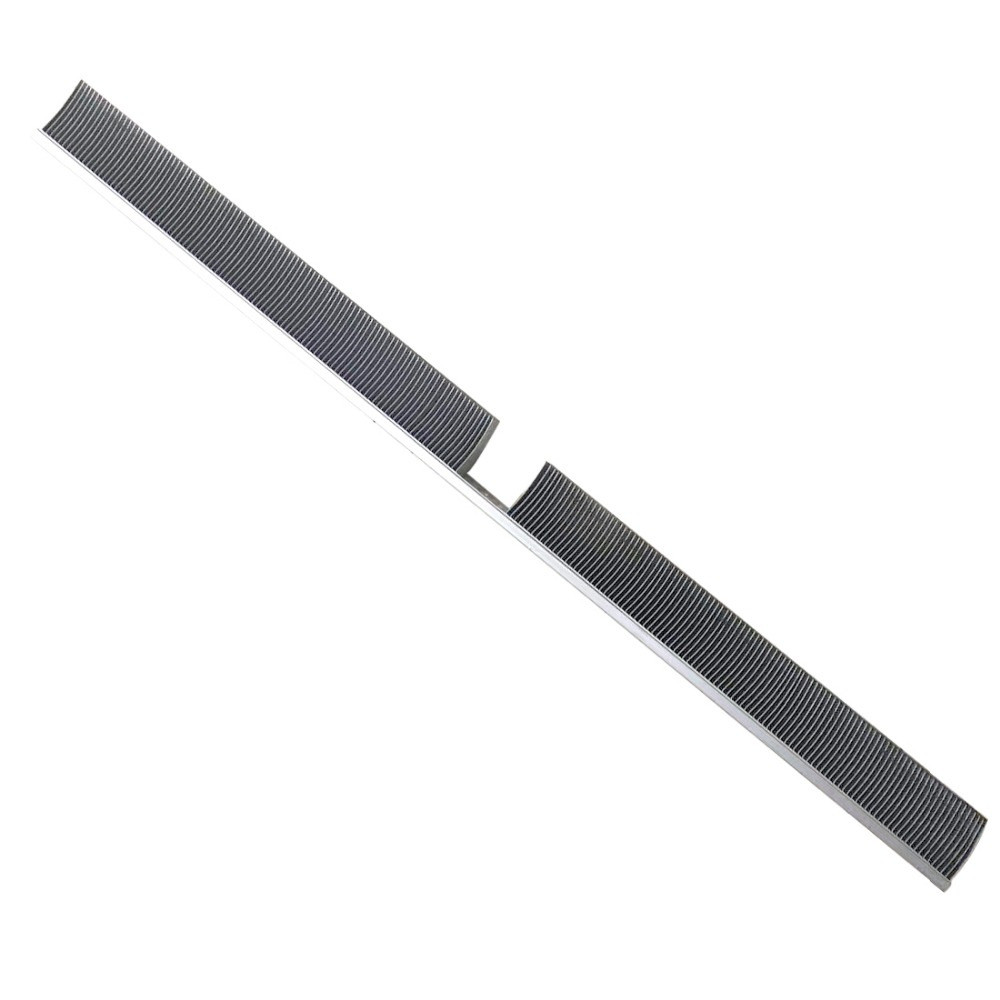

Aluminum High Fin Density Skived Fin Heat Sink For New Energy Vehicle 0Aluminum High Fin Density Skived Fin Heat Sink For New Energy Vehicle 1Aluminum High Fin Density Skived Fin Heat Sink For New Energy Vehicle 2Aluminum High Fin Density Skived Fin Heat Sink For New Energy Vehicle 3

Feature Of Aluminum Heat Sink

High aspect ratio, straight fin heat sinks that are ideal for compact PCB environments

Fabricated from extruded aluminum, which minimizes thermal resistance from the base to the fins, reduces weight and keeps costs low

Higher performance helps ensure reliable product life at a lower cost than other extruded heat sinks

Comes standard without interface material or with most common pressure sensitive thermal tapes as a custom option


Application Of Aluminum Heat Sink

Aluminum heatsink is light in texture, but its strength is relatively high. It is close to or exceeds high-quality steel. It has excellent thermal conductivity and corrosion resistance, good heat dissipation performance, and good energy-saving effect.


After the aluminum heatsink has been surface-oxidized, an oxide film is formed on the surface of the heatsink. This film is tough and dense, preventing further corrosion of the bulk material, increasing the corrosion resistance, wear resistance and appearance of the aluminum material. Aesthetics.


The application areas of aluminum heatsinks are

Power, electronics, communications, machinery, automobiles, solar photovoltaic power generation, wind power, construction machinery, air compressors, railway locomotives, household appliances and other industries.



Which fin shape is best for heat sink?
In general, a wavy fin heat sink should perform better under natural and forced convection due to the increased surface area created by the fins. This feature can easily be manufactured with a die. The “waviness” can be adjusted to increase surface area resulting in a positive impact on thermal performance.
