Anodizing Large Solid Copper Heatsink 0.02mm Flatness Anti Oxidation High Density

Basic Information
Place of Origin: China
Brand Name: FODOR
Certification: ISO9001:2015
Model Number: HEAT SINK-S0005
Minimum Order Quantity: 100PCS
Packaging Details: Blister packaging
Delivery Time: 20-30days
Payment Terms: T/T, Western Union
Supply Ability: 30000 PCS Per month
Price: EXW/FOB/CIF/DDP Raw Material: Copper
Surface Treatment: Anti-oxidation Application: Copper Skived Fin Heat Sink
Processing Service: CNC, Anodizing Delivery Time: 20-30days
Keyword: Skived Fin Heat Sink
High Light:

0.02mm Solid Copper Heatsink

,

Anti Oxidation Solid Copper Heatsink

,

Solid Large Copper Heatsink

Raw Material Copper Skived Fin Heat Sink With The 0.02 Flatness



Quick Detail



Raw Material Copper
Custom Service Yes, OEM/ODM Service
Quality System ISO9001:2015
Processing Technology CNC Gear /Wood machining/CNC/Riveting
Surface treatment anti-oxidation
Packing Way Blister packaging or special packing you would like
Application Scenario Electronic equipment heat sink
MOQ Request 100/500/1000





Description

    This heat sink is based aluminum profile 6063-T5 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use the CNC Gear shovel machine to do the dimension, the third is that accroding to the drawing, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing.





Notes

This is a skived fin heat sink

Skived Fin Heat Sinks offer highly optimized cooling as they allow for higher fin densities than what is manufacturable using extrusion methodologies, but do not have an interface joint that restricts heat flow like bonded or brazed fin heat sinks. Unlike bonded or brazed heat sinks, Skived Fin Heat Sinks are constructed from a single piece of material and offer reduced thermal resistance since there is no joint between a base and fins. These heat sinks are manufactured by precisely slicing the top of the base, called skiving, folding it back to where it is perpendicular to the base, and repeating at regular intervals to create fins.

The skiving process enables high fin density and thin fin heat sink geometries for optimal thermal performance. By packing as much fin surface area into a given volume, skived fin heat sinks have greater heat transfer than other single piece construction heat sinks such as extruded aluminum heat sinks. Compared to extruded aluminum, skived fin heat sink fabrication does not rely on expensive tooling, providing greater design flexibility and faster prototyping. Instead, each fin is cut separately using the same tool which allows for lower tooling costs. This enables Fodor Technology to fully customize skived fin components for your product, which also includes liquid cooling applications.



Fodor can offer copper skived fin heat sink and aluminum(AL1050/6063) skived fin heat sink.

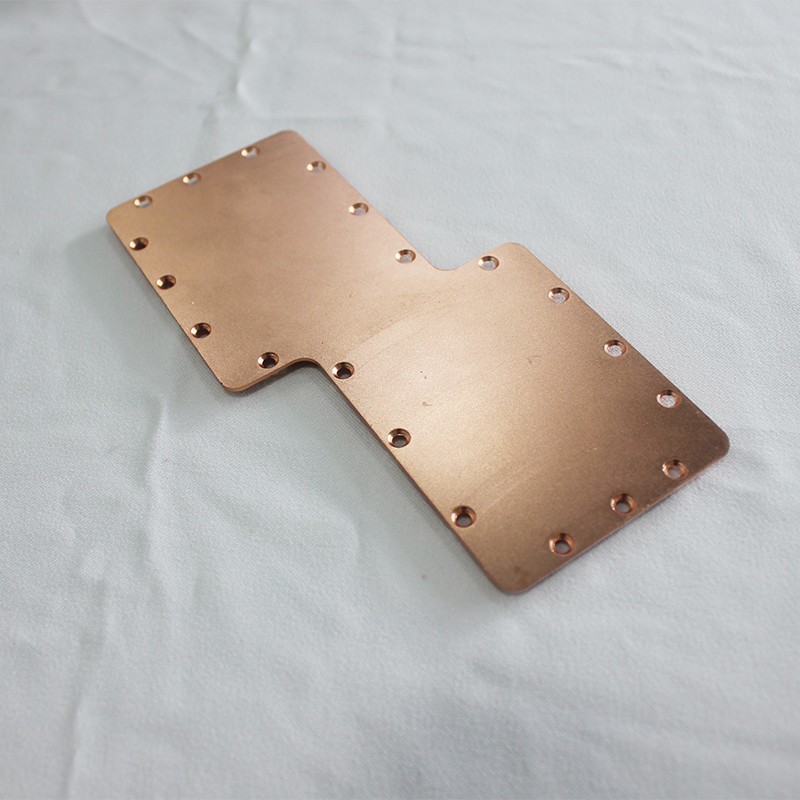

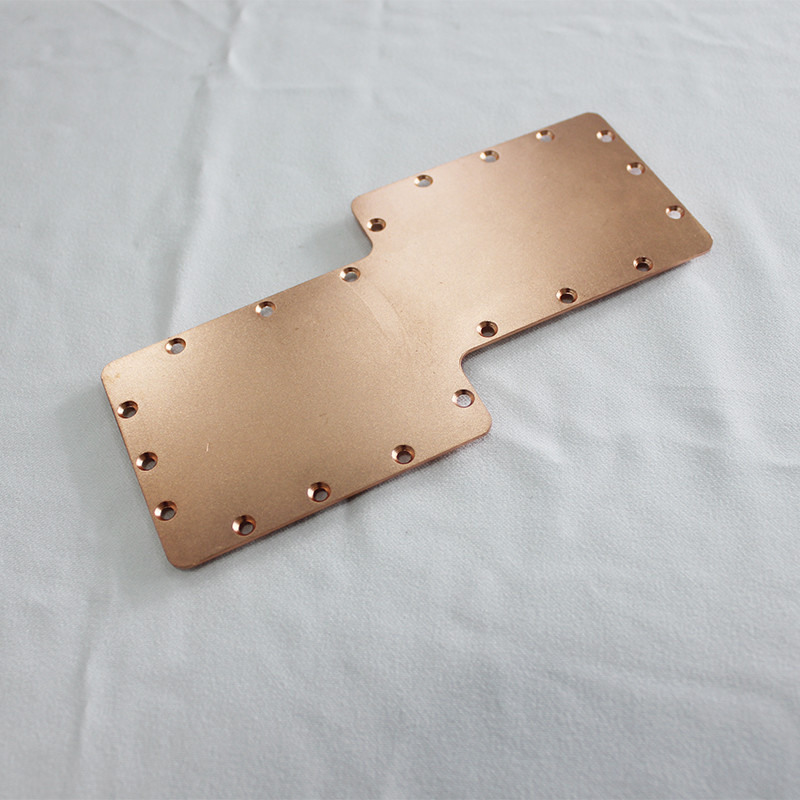

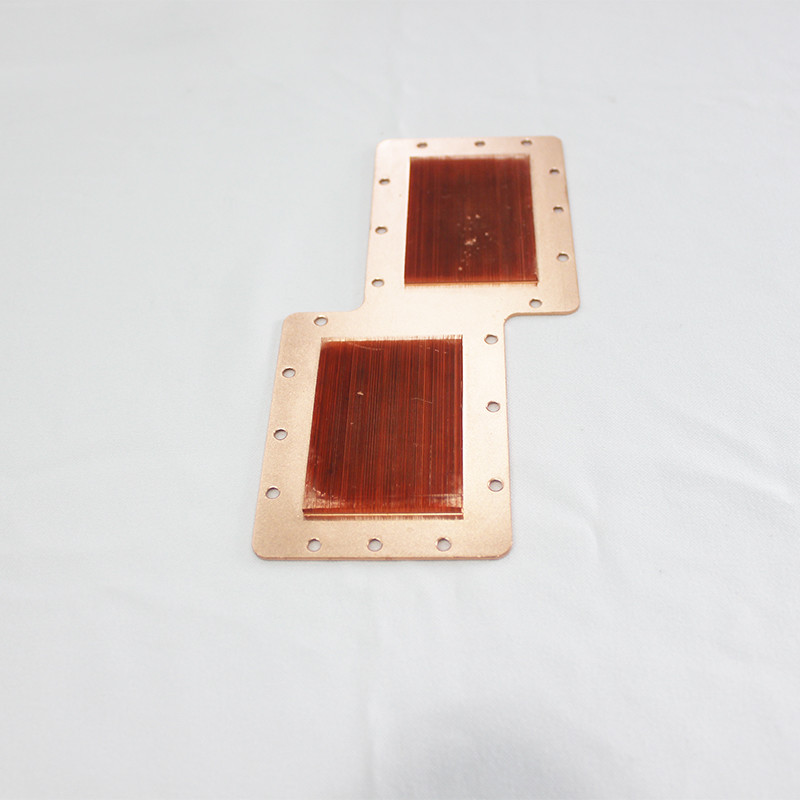

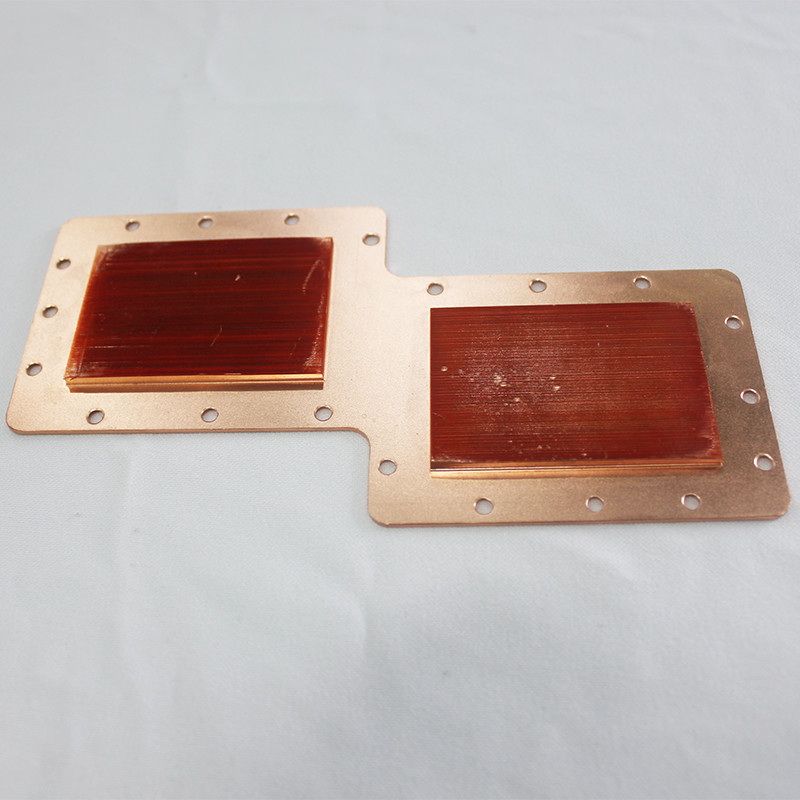

Anodizing Large Solid Copper Heatsink 0.02mm Flatness Anti Oxidation High Density 0Anodizing Large Solid Copper Heatsink 0.02mm Flatness Anti Oxidation High Density 1Anodizing Large Solid Copper Heatsink 0.02mm Flatness Anti Oxidation High Density 2Anodizing Large Solid Copper Heatsink 0.02mm Flatness Anti Oxidation High Density 3
