Price: | EXW/FOB/CIF/DDP | Raw Material: | AL6063-T5 |
---|---|---|---|
Surface Treatment: | Plating Nicle | Application: | Aluminum Skived Fin Heat Sink |
Processing Service: | CNC, Plating Nicle | Delivery Time: | 20-30days |
Keyword: | Skived Fin Heat Sink | ||
High Light: | Anti Oxidation Heat Sink With Heat Pipe,Rustproof Heat Sink With Heat Pipe,CNC Copper Tube Heat Sink |

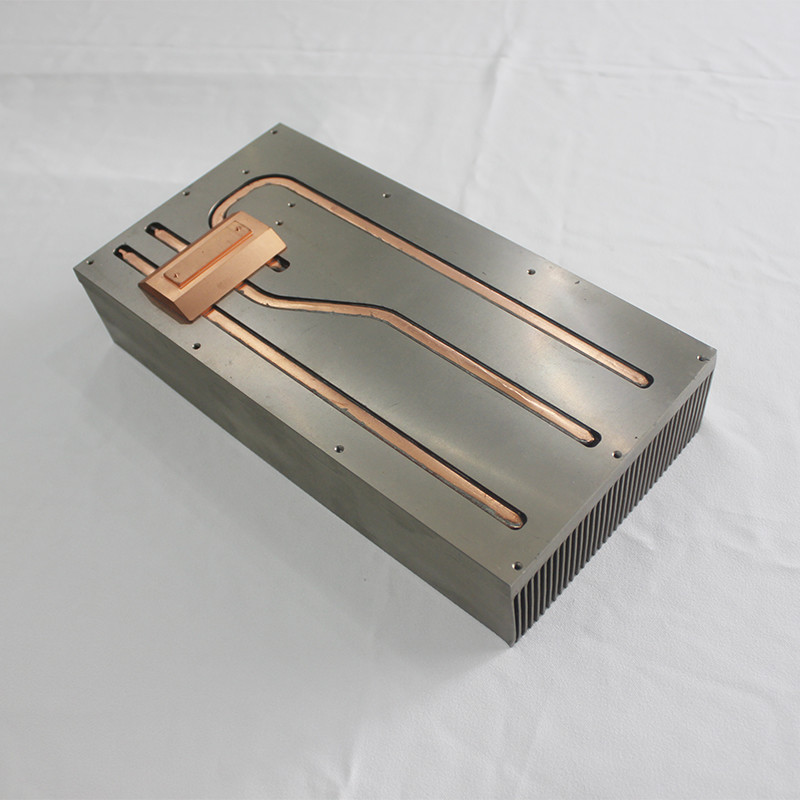

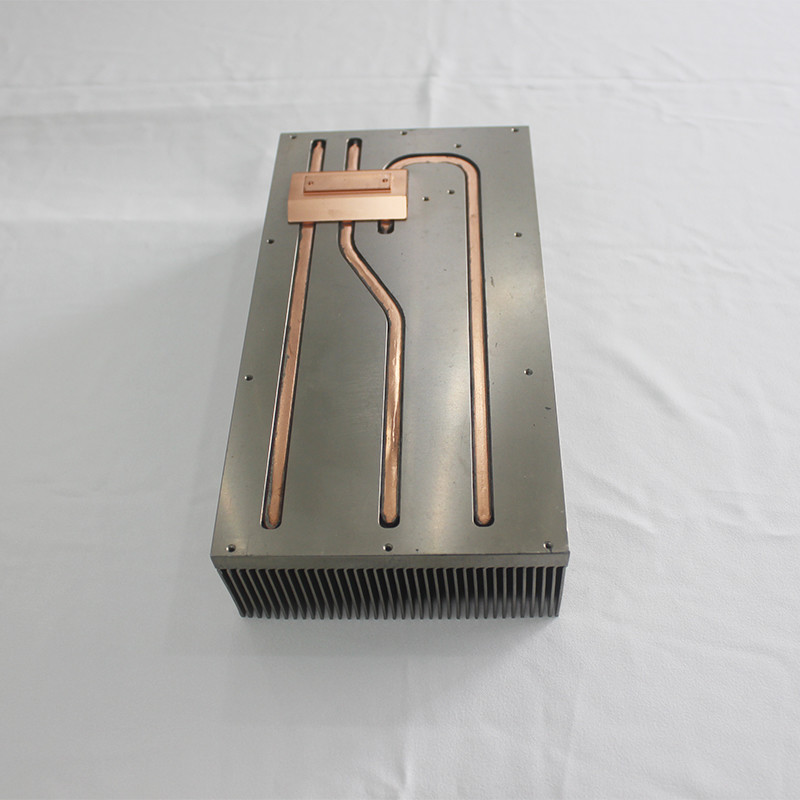

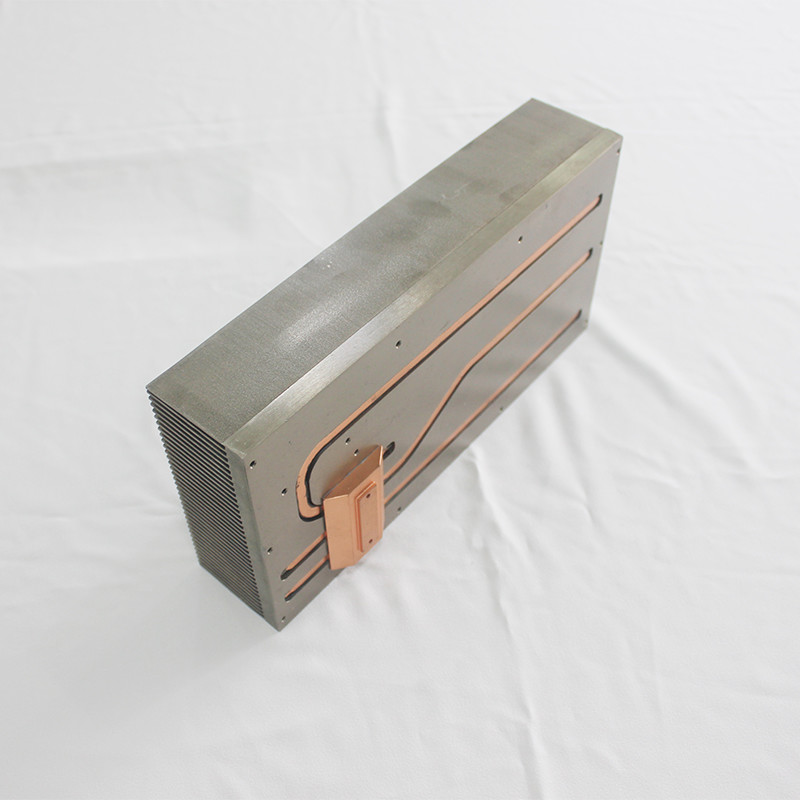

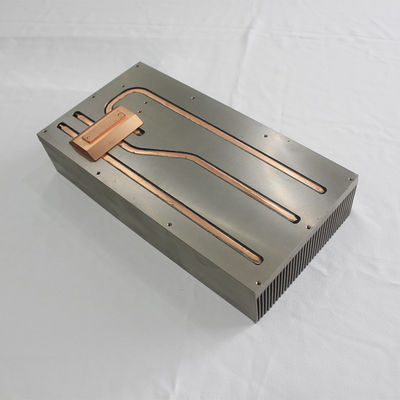

Raw Material Aluminum 6063 Plating Nicle Skived Fin Heat Sink Wiht Heat Pipe
Quick Detail
Raw Material | AL6063 |
Custom Service | Yes, OEM/ODM Service |
Quality System | ISO9001:2015 |
Processing Technology | CNC Gear /Wood machining/CNC/Riveting |
Surface treatment | plating nicle |
Packing Way | Blister packaging or special packing you would like |
Application Scenario | Electronic equipment heat sink |
MOQ Request | 100/500/1000 |
Description
This heat sink is based aluminum profile 6063-T5 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use the CNC Gear shovel machine to do the dimension, the third is that accroding to the drawing, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing.
Notes

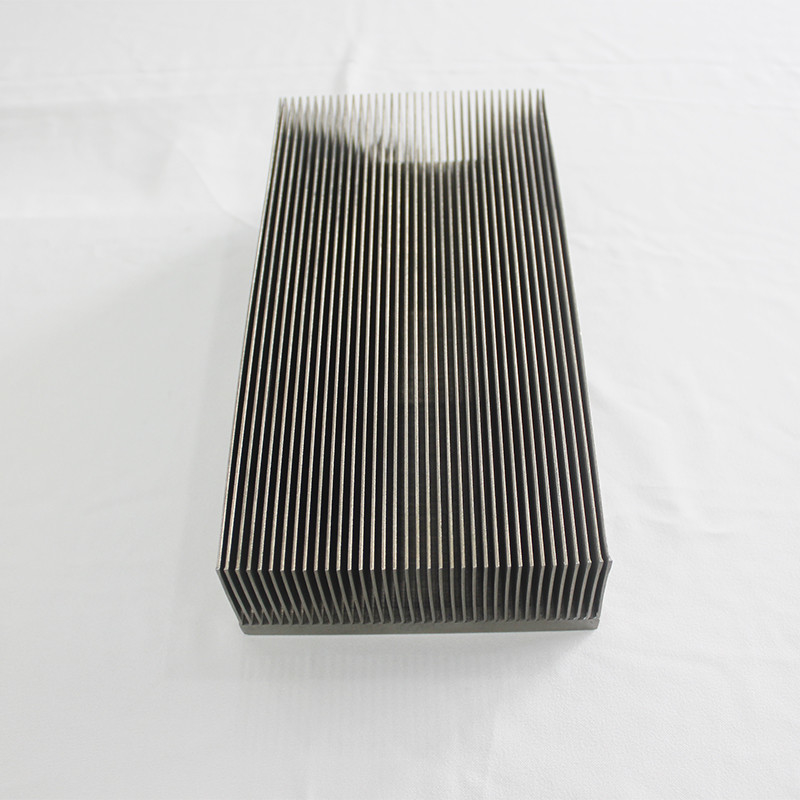

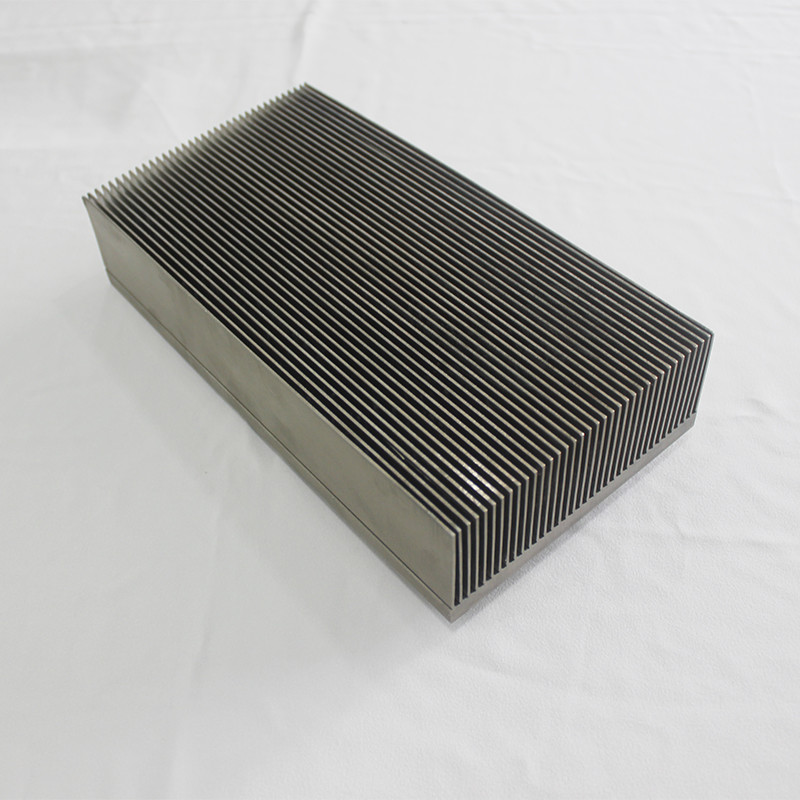

This is a skived fin heat sink
Skived Fin Heat Sinks offer highly optimized cooling as they allow for higher fin densities than what is manufacturable using extrusion methodologies, but do not have an interface joint that restricts heat flow like bonded or brazed fin heat sinks. Unlike bonded or brazed heat sinks, Skived Fin Heat Sinks are constructed from a single piece of material and offer reduced thermal resistance since there is no joint between a base and fins. These heat sinks are manufactured by precisely slicing the top of the base, called skiving, folding it back to where it is perpendicular to the base, and repeating at regular intervals to create fins.
The skiving process enables high fin density and thin fin heat sink geometries for optimal thermal performance. By packing as much fin surface area into a given volume, skived fin heat sinks have greater heat transfer than other single piece construction heat sinks such as extruded aluminum heat sinks. Compared to extruded aluminum, skived fin heat sink fabrication does not rely on expensive tooling, providing greater design flexibility and faster prototyping. Instead, each fin is cut separately using the same tool which allows for lower tooling costs. This enables Fodor Technology to fully customize skived fin components for your product, which also includes liquid cooling applications.
Skived heat sinks can be constructed of aluminum or copper allowing for full, one-piece copper solutions for high performance cooling. Fodor's standard copper skived fin heat sinks are available with Shurlock pin attachments for reliable mounting and easy assembly.
Fodor can offer copper skived fi heat sink and aluminum(AL1050/6063) skived fin heat sink.
