Al1050 Wave Aluminum Profile Heat Sink With Fins CNC Precision Machining

Aluminum 1050 Wave Fin Heat Spreader Skived Fin Heat Sink With CNC Precision Machining

Quick Detail

Description

    This heat sink is based aluminum profile 6063-T5 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use the CNC Gear shovel machine to do the dimension, the third is that accroding to the drawing, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing.

Notes

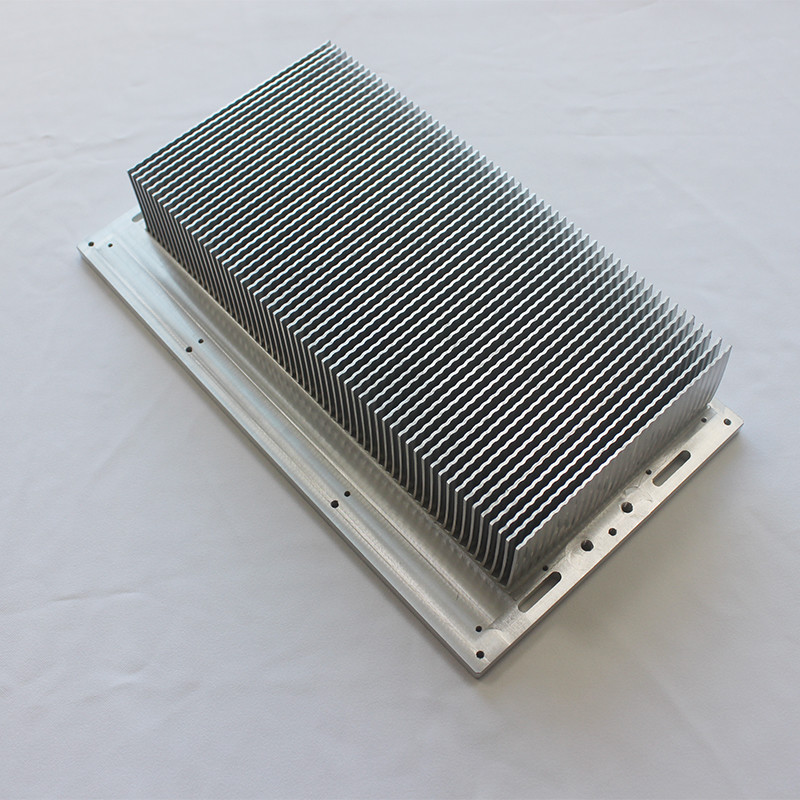

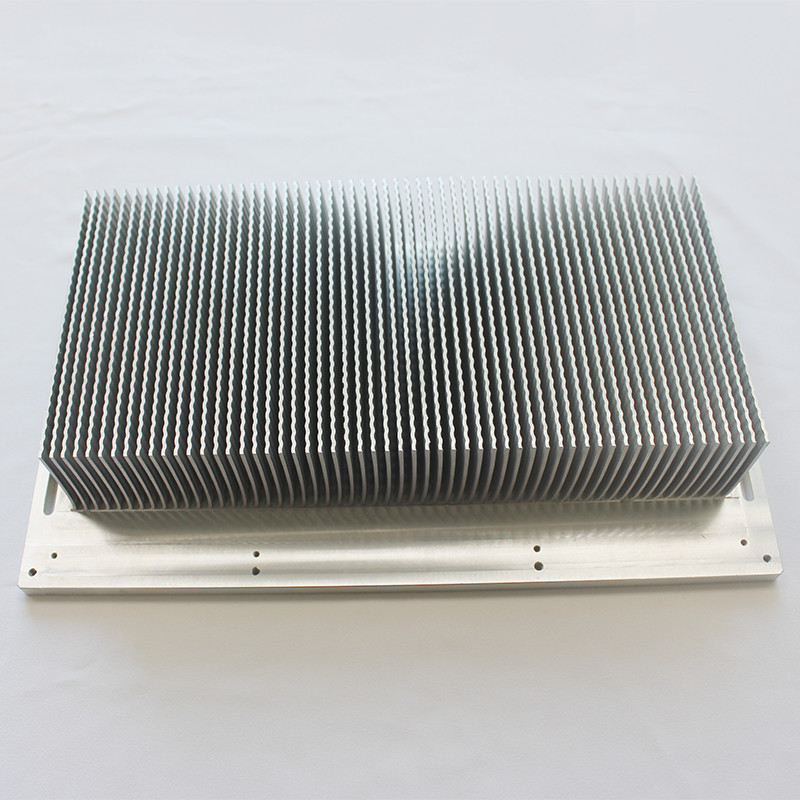

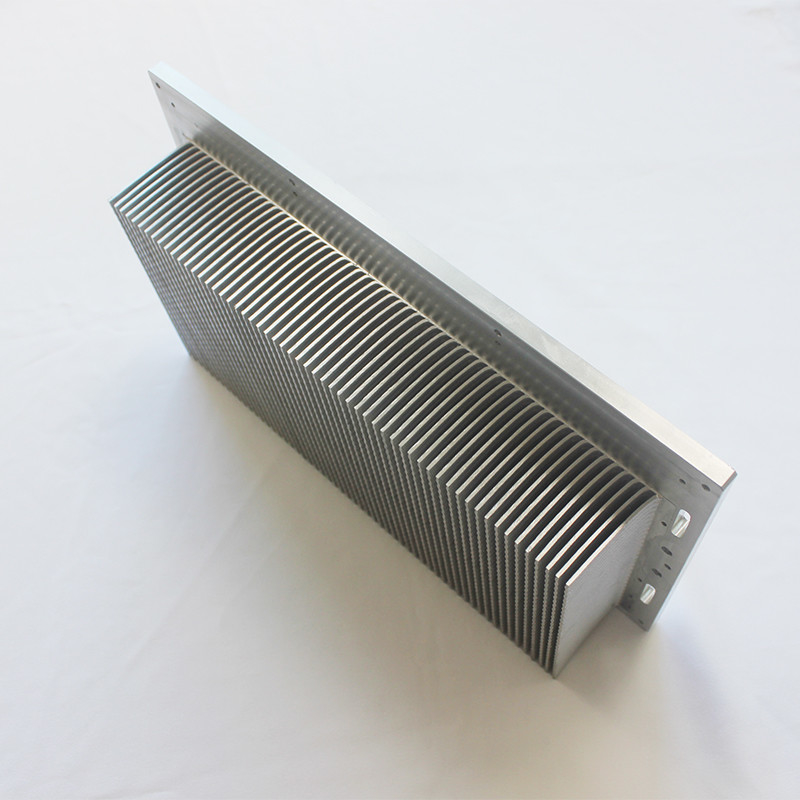

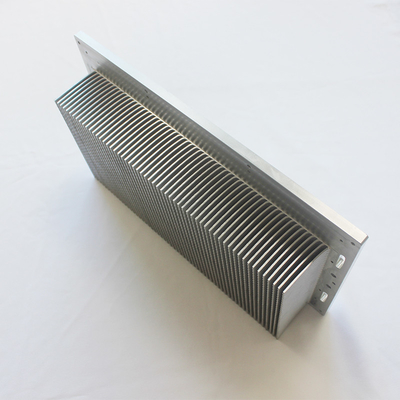

This is a skived fin heat sink

Small form factor systems of low heights require optimum cooling in the smallest space. The skived fin procedure allows Fodor Technology to offer coolers made of aluminum or copper with heights of less than 30 mm which gainan extremely large surface without any additional thermal resistance caused by soldering or crimping. The skived fins are smoothly combined with the bottom plate. Because of favorable tools small series can be done as well.

The advantages

• Copper- and Aluminiumheatsink made from "one piece"
• Low tooling costs
• High fin density possible

Fodor can offer copper skived fi heat sink and aluminum(AL1050/6063) skived fin heat sink.
