Al6063 Anodizing Natural Folded Skived Fin Heat Sink With 16 Feet

Basic Information
Place of Origin: China
Brand Name: FODOR
Certification: ISO9001:2015
Model Number: HEAT SINK-S0012
Minimum Order Quantity: 100PCS
Packaging Details: Blister packaging
Delivery Time: 20-30days
Payment Terms: T/T, Western Union
Supply Ability: 30000 PCS Per month
Price: EXW/FOB/CIF/DDP Raw Material: AL1050/6063
Surface Treatment: Anodizing Natural Application: Aluminum Skived Fin Heat Sink
Processing Service: CNC,plating Nicle Delivery Time: 20-30days
Keyword: Skived Fin Heat Sink
High Light:

Anodizing Skived Fin Heat Sink


16 Feet Skived Fin Heat Sink


Al6063 Folded Fin Heat Sink

Aluminum 6063 anodizing natural Heat Spreader Skived Fin Heat Sink With CNC Precision Machining


Quick Detail


Raw Material AL1050
Custom Service Yes, OEM/ODM Service
Quality System ISO9001:2015
Processing Technology CNC Gear /Wood machining/CNC/Riveting
Surface treatment clean
Packing Way Blister packaging or special packing you would like
Application Scenario Electronic equipment heat sink
MOQ Request 100/500/1000




    This heat sink is based aluminum profile 6063-T5 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use the CNC Gear shovel machine to do the dimension, the third is that accroding to the drawing, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing.




This is a skived fin heat sink

Skived heat sinks are produced using a series of sharp knives that, as they pass over the material, curl up a small thickness of metal which is then bent vertically to form the fin. Skived fins are produced from a bar of material which is approximately 16 feet in length and then cut to length as required by the final application.

The final heatsink can be machined using normal fabrication techniques. Because of the thin fins, care must be taken in handling to prevent damage. It is suggested that a shroud be placed over the fins to help prevent damage.


Fodor can offer copper skived fi heat sink and aluminum(AL1050/6063) skived fin heat sink.

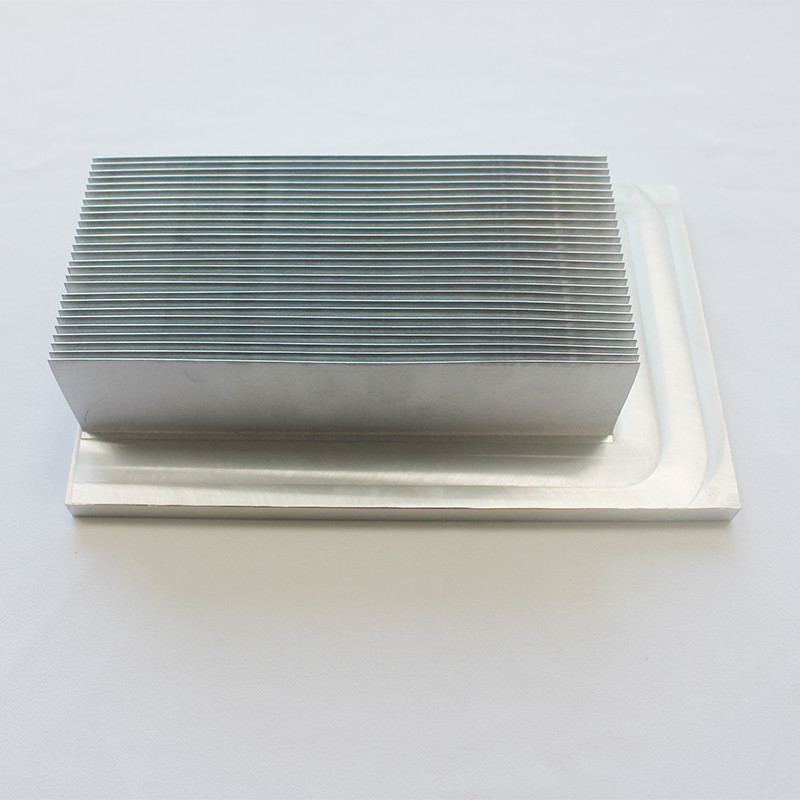

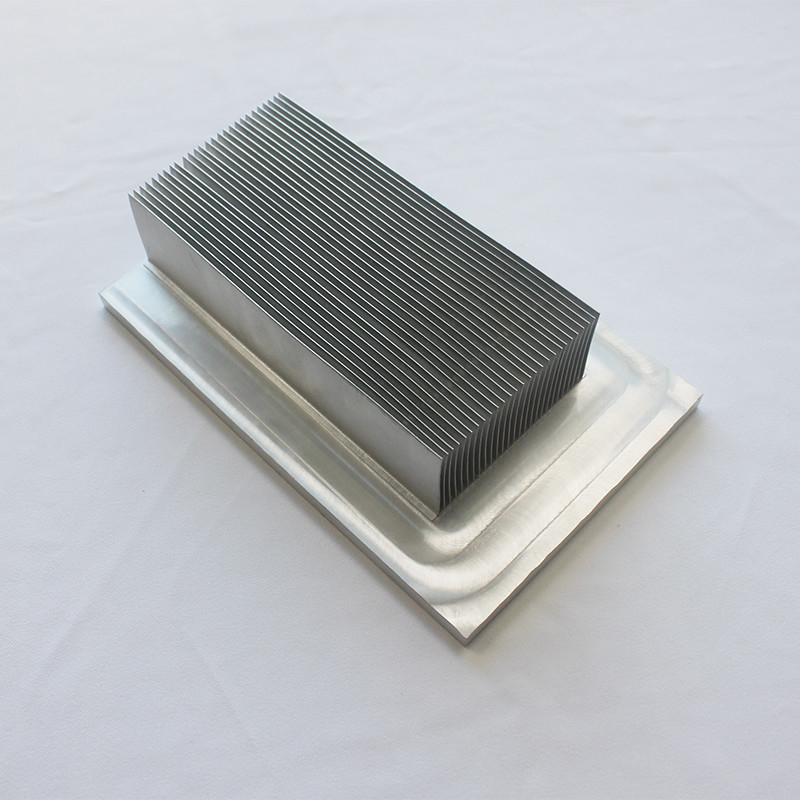

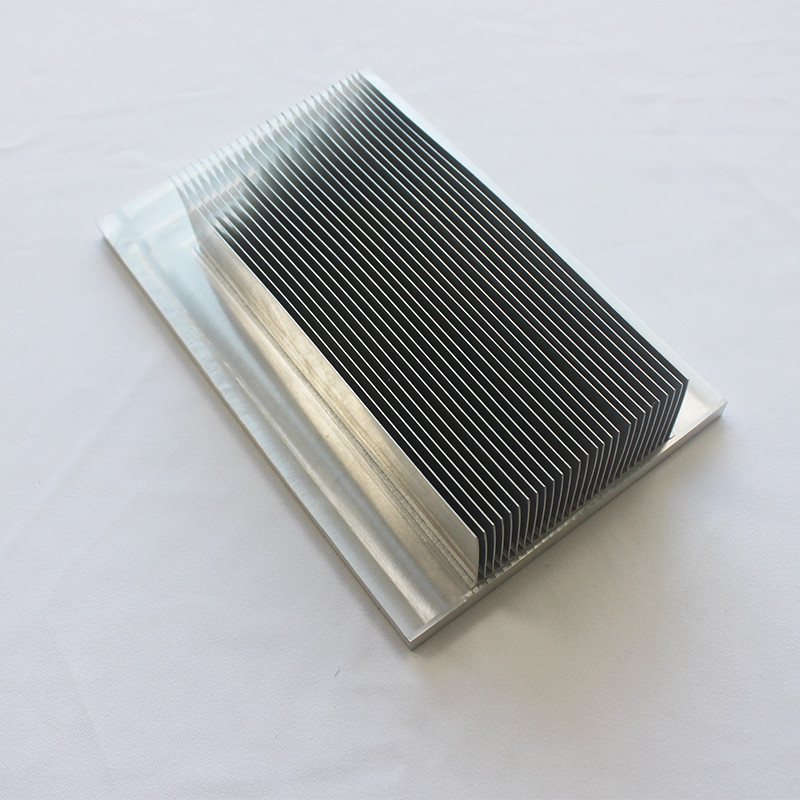

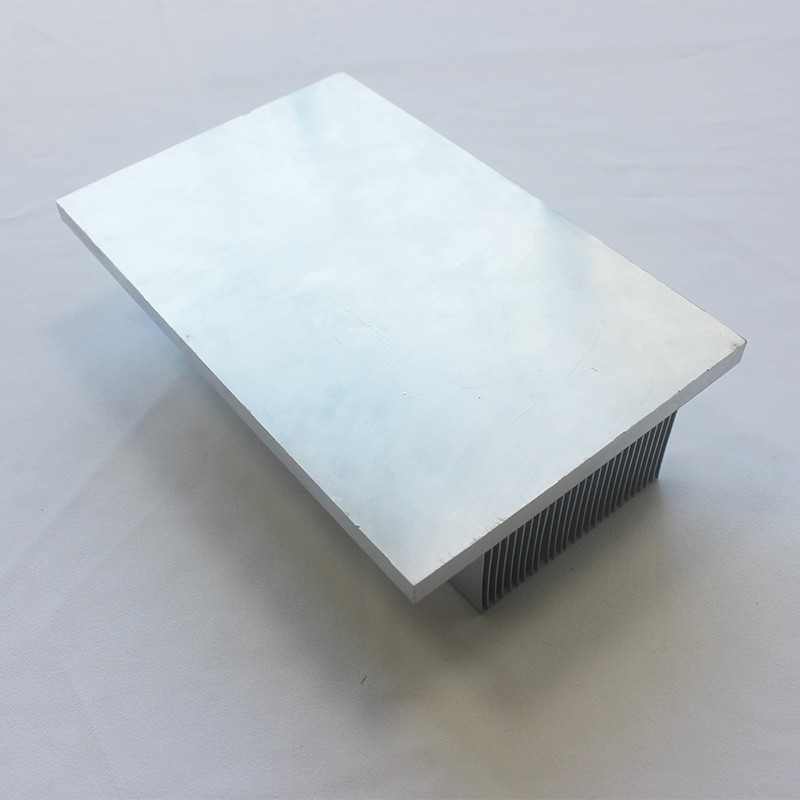

Al6063 Anodizing Natural Folded Skived Fin Heat Sink With 16 Feet 0Al6063 Anodizing Natural Folded Skived Fin Heat Sink With 16 Feet 1Al6063 Anodizing Natural Folded Skived Fin Heat Sink With 16 Feet 2
