| Place of Origin: | China |
|---|---|
| Brand Name: | FODOR |
| Certification: | ISO9001:2015 |
| Model Number: | HEAT SINK-S0016 |
| Minimum Order Quantity: | 100PCS |
| Packaging Details: | Blister packaging |
| Delivery Time: | 20-30days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30000 PCS Per month |
| Price: | EXW/FOB/CIF/DDP | Raw Material: | AL1050/6063 |
|---|---|---|---|
| Surface Treatment: | Clean Or Custom | Application: | Aluminum Skived Fin Heat Sink |
| Processing Service: | CNC, Plating Nicle | Delivery Time: | 20-30days |
| Keyword: | Skived Fin Heat Sink | ||
| High Light: | Led Skived Fin Heat Sink,Rosh Skived Fin Heat Sink,Anti Oxidation Bonded Fin Heat Sink |
||

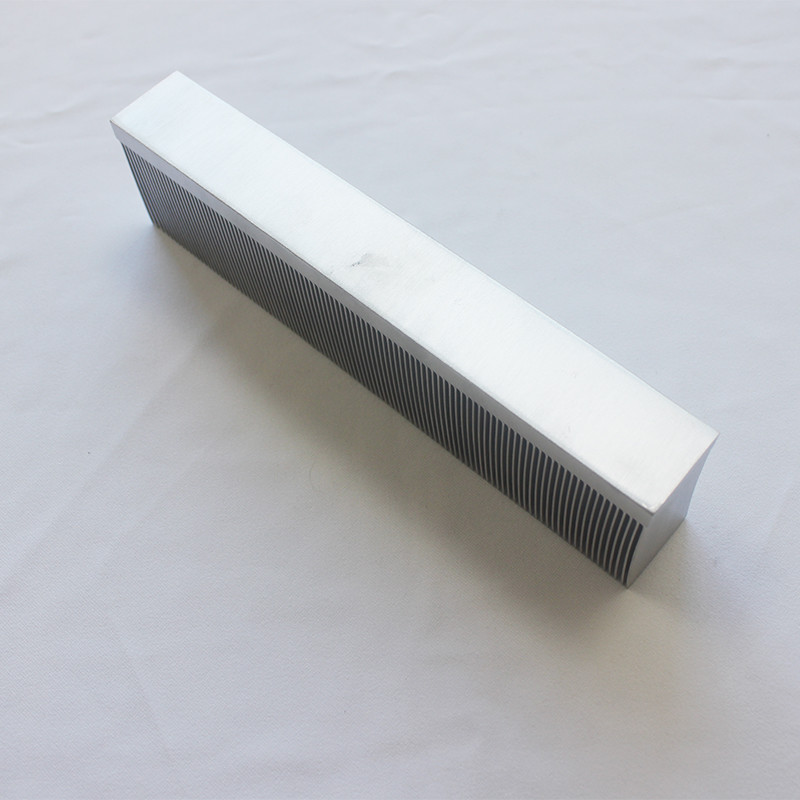

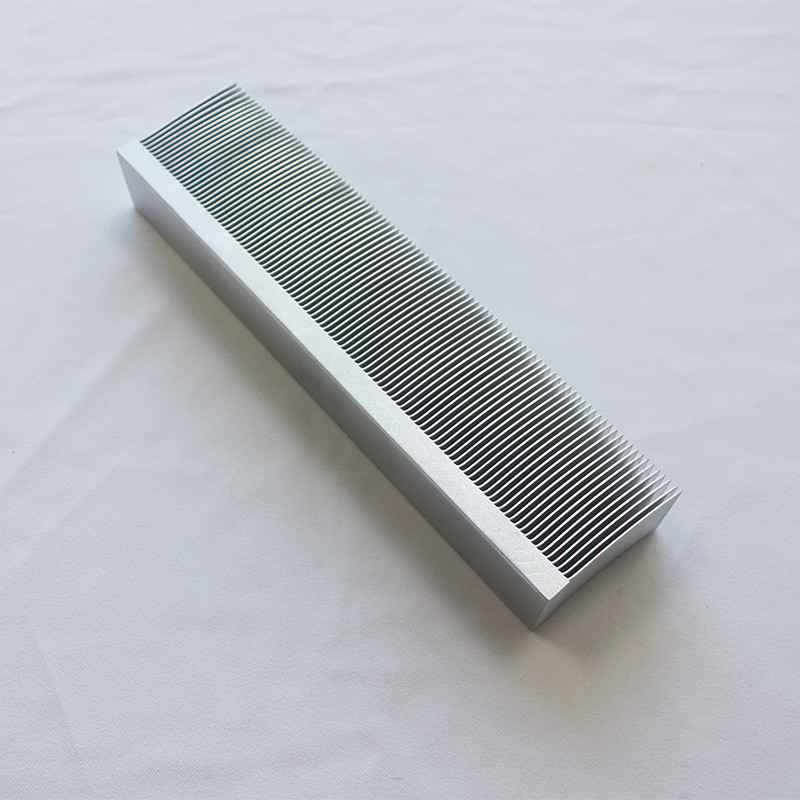

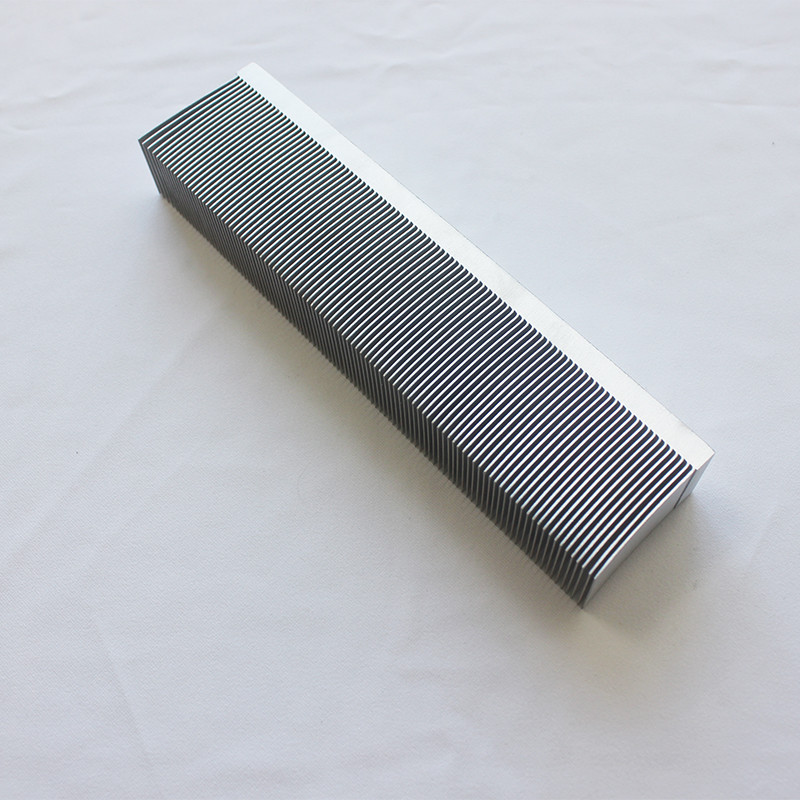

Quick Sample Aluminum 6063 Skived Fin Heat Sink With Rosh For Led Light
Quick Detail
| Raw Material | AL1050 |
| Custom Service | Yes, OEM/ODM Service |
| Quality System | ISO9001:2015 |
| Processing Technology | CNC Gear /Wood machining/CNC/Riveting |
| Surface treatment | clear anodizing |
| Packing Way | Blister packaging or special packing you would like |
| Application Scenario | Electronic equipment heat sink |
| MOQ Request | 100/500/1000 |
Description
This heat sink is based aluminum profile 6063-T5 material to processing, first of all, we check the raw material dimension is fine or not, the second is that according to the drawing, use the CNC Gear shovel machine to do the dimension, the third is that accroding to the drawing, the forth is that use the CNC to do exact dimension, the fifth is do anodizing clear, the last step is riveting, and then inspection/packing. First inspection and patrol inspection are done in processing.
Notes
This is a skived fin heat sink
How to identify a Skived Heatsink

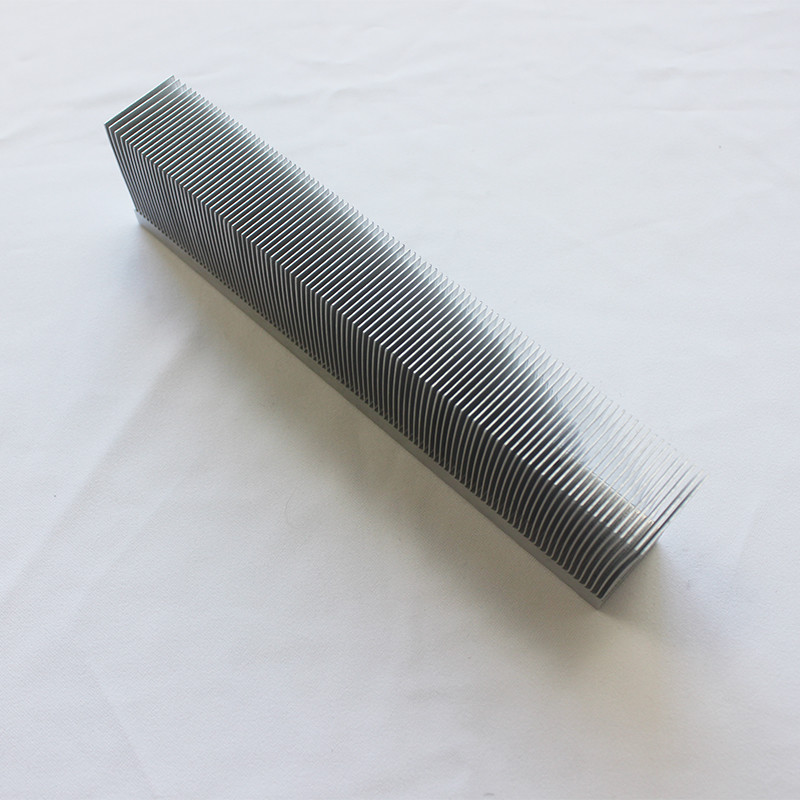

Skived HeatsinkIt is fairly easy to identify Skived Heatsink as the heatsink has a curve where the blade finishes its cut at the base of the heatsink as shown in the picture. In addition, the fins are not completely vertical, and curve slightly. This is more pronounced at the fins get taller. Typical width of the plate fin is 200 mm, but it is possible to manufacture up to 400 mm wide heatsinks by rotating the block of material and running a second pass with the curvature of the fins being in the opposite direction. As a Skived heatsink is manufactured from a long block of material, the only is no real limit to length of the heatsink is the length of the block. Different heights can be achieved by machining the block of material. Any excess material is recycled to reduce wastage. Typical Finishes for Aluminum skived heatsink are Anodization, or Nickel Plated. Typical finished for Copper Skived heatsinks are Anti-Oxidant, or Nickel Plated.
Fodor can offer copper skived fi heat sink and aluminum(AL1050/6063) skived fin heat sink.
