Place of Origin: | China |
---|---|
Brand Name: | Customized |
Certification: | ISO9001:2015 |
Model Number: | HEAT SINK-H0019 |
Minimum Order Quantity: | Negotiable |
Price: | Negotiable |
Packaging Details: | Blister packaging |
Delivery Time: | 20-30days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 30000 PCS Per month |
Raw Material: | AL6063/Cooper/fan | Surface Treatment: | Plating Nickel |
---|---|---|---|
Application: | Heat Sink | Processing Service: | Cutting, CNC,Anodizing |
Delivery Time: | 20-30days | Keyword: | Heat Pipe Radiator |
High Light: | AL6063 Heat Pipe Heat Sink,Anodizing Heat Pipe Radiator,CNC Heat Pipe Heat Sink |

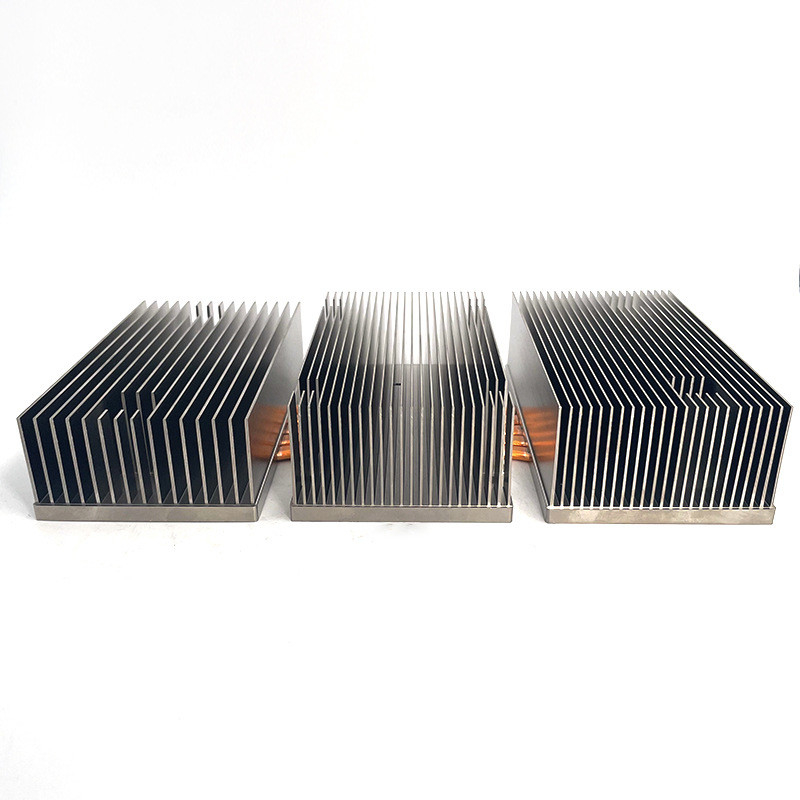

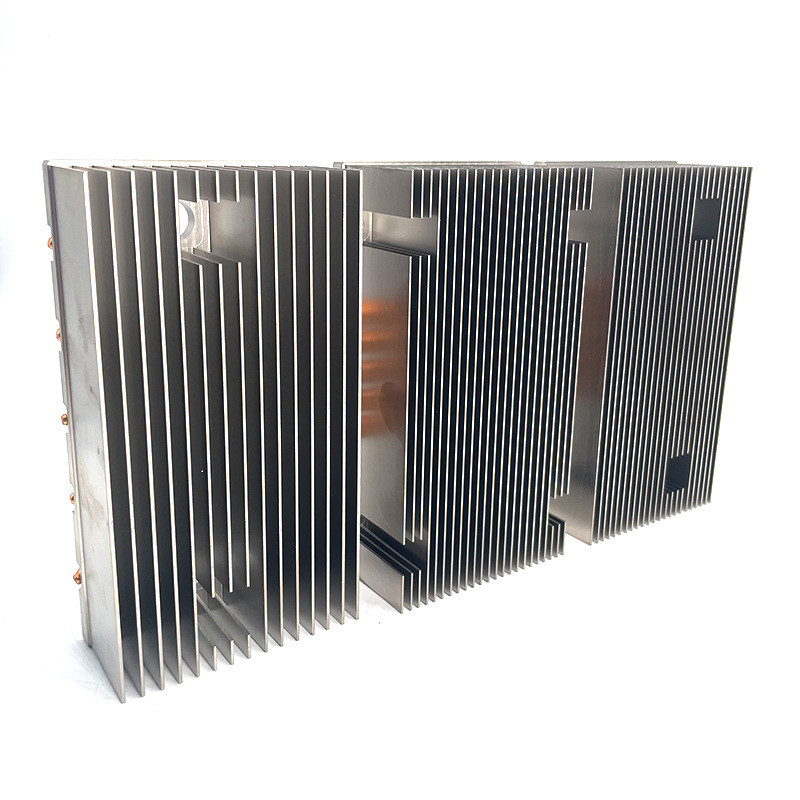

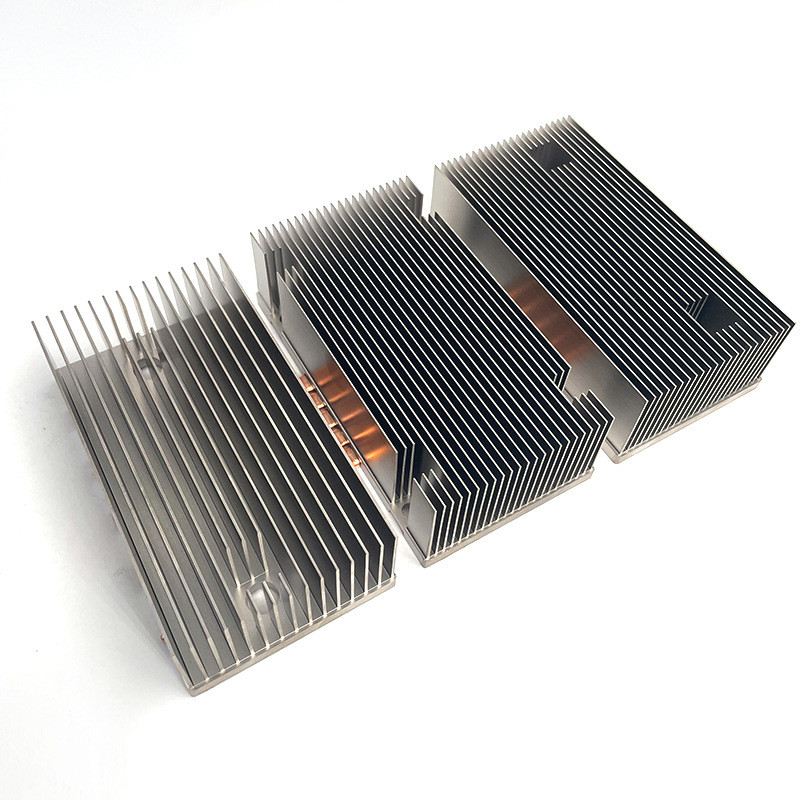

Free Technology Support For Heat Pipe Heat Sink With Small MOQ
Quick Detail
Raw Material | AL6063 and 4 heat pipe / fan |
Custom Service | Yes, OEM/ODM Service |
Quality System | ISO9001:2015 |
Processing Technology | Cutting/Wood machining/CNC/Riveting |
Surface treatment | plating nickel |
Packing Way | Blister packaging or special packing you would like |
Application | led heat sink |
MOQ Request | 100/500/1000 |
Description
Heat pipe radiator is a new product produced by using heat pipe technology to make major improvements to many old radiators or heat exchange products and systems. There are two types of heat pipe radiators: natural cooling and forced air cooling. The thermal resistance of air-cooled heat pipe radiator can be made smaller, and it is often used in high-power power supplies.
Note
Production process
Aluminum fins: Pressing the aluminum plate to a stacked fins by high speed stamping machine;

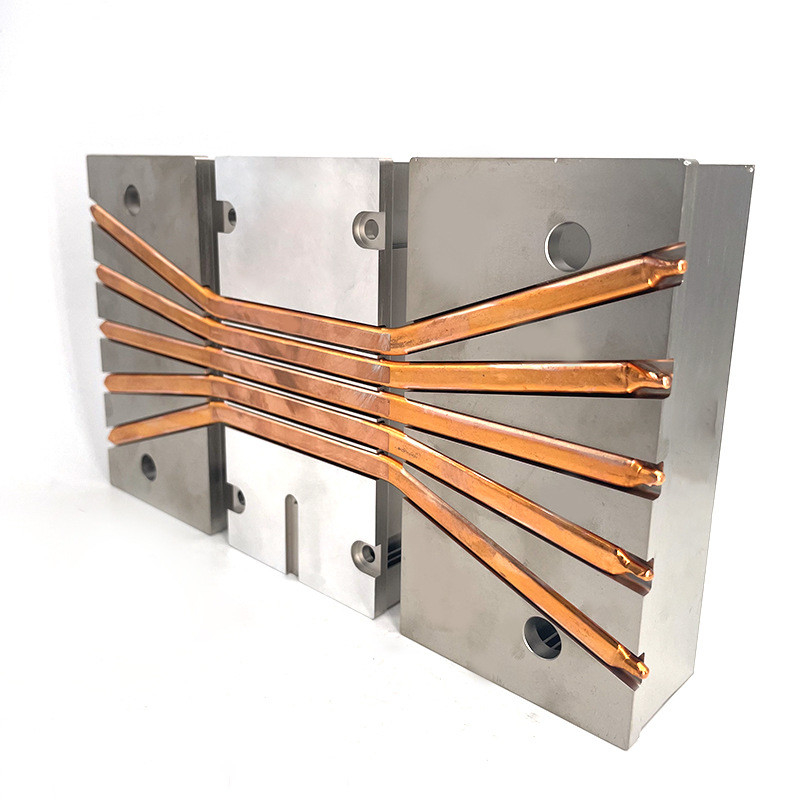

Heat pipe: Filling the copper power and water into the copper tube and sealing the two ends;
Aluminum base: Extrusion and CNC machining;
Heat sink assembly: combining the components together to the fixture and then put into the reflow oven for soldering.
How much power can a heat sink dissipate?
The product of collector current and voltage either side of this quiescent state produces less power dissipation, so 45 W is the maximum power dissipation to consider. This value is used below to calculate the heat sink
How do I know what size heatsink to get?
Volumetric Thermal Resistance (Rv) – This equation and subsequent guidelines have been shown to closely estimate heat sink volume: V=(Q*Rv)/Delta T. The first step in using the chart below is to know the available airflow across the heat sink. As you know, the higher the airflow the smaller the heat sink.
The heat pipe radiator has the following advantages:
We can offer the heat pipe radiator service, small qty is acceptable.
Technical Support
We can offer the design and simulation service. For example, our German customer's case.
According to the simulation results,the simulated chip is in compliance with the temperature requirements specficied by customer.
