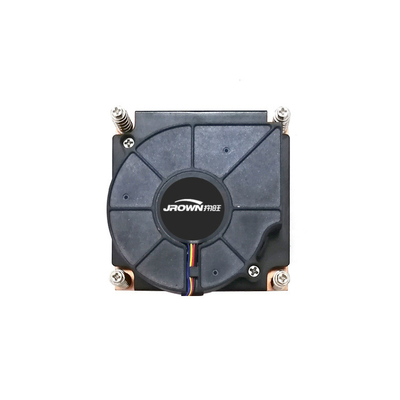

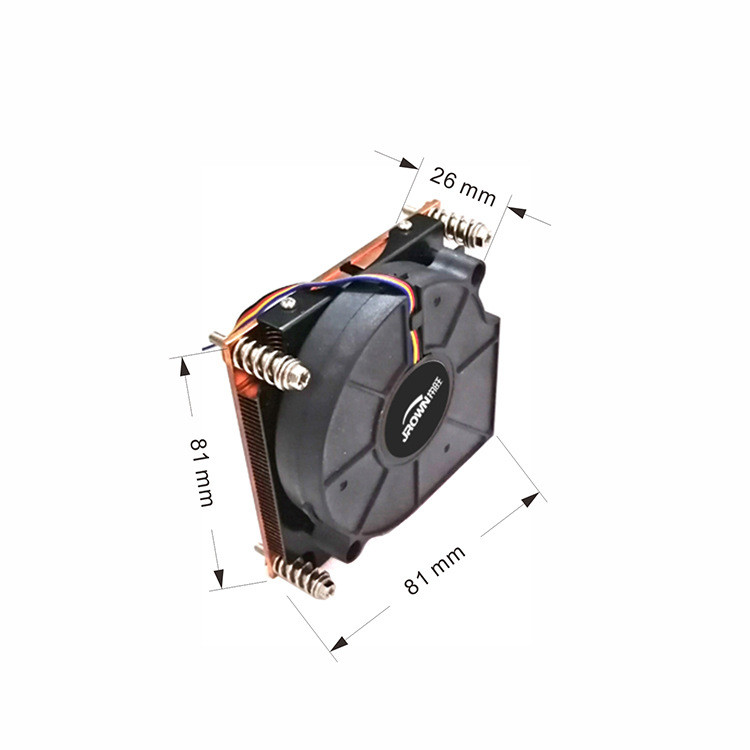

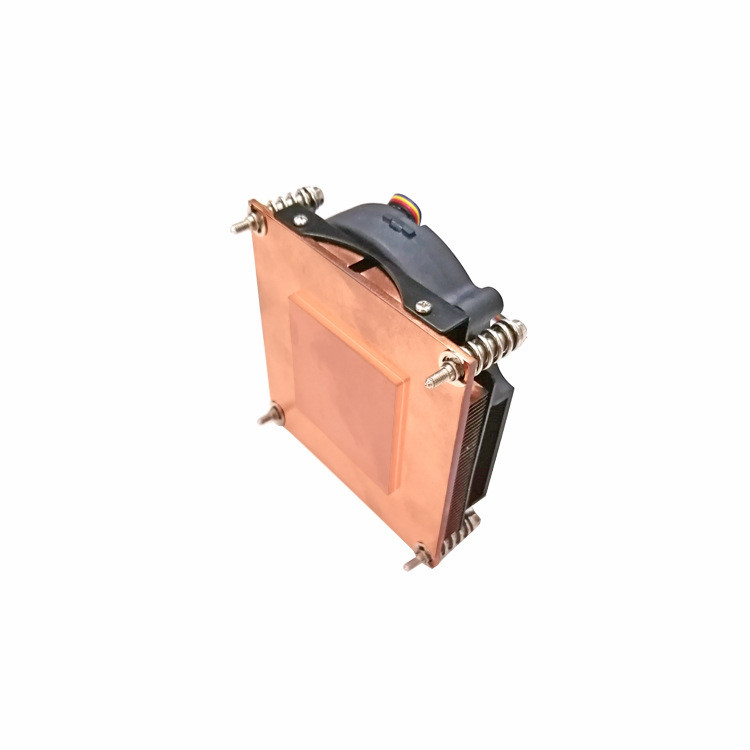

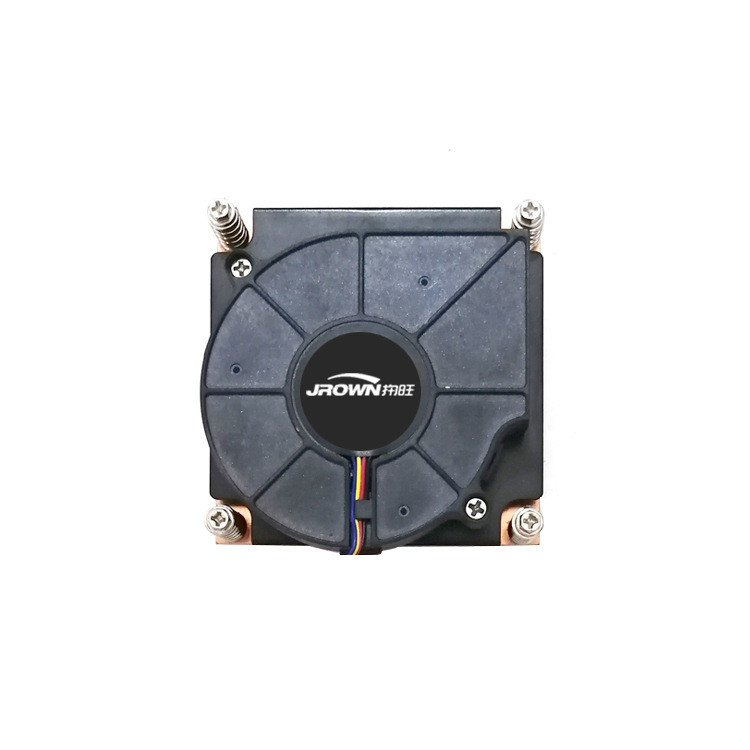

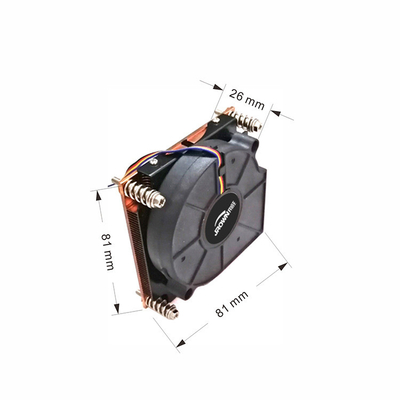

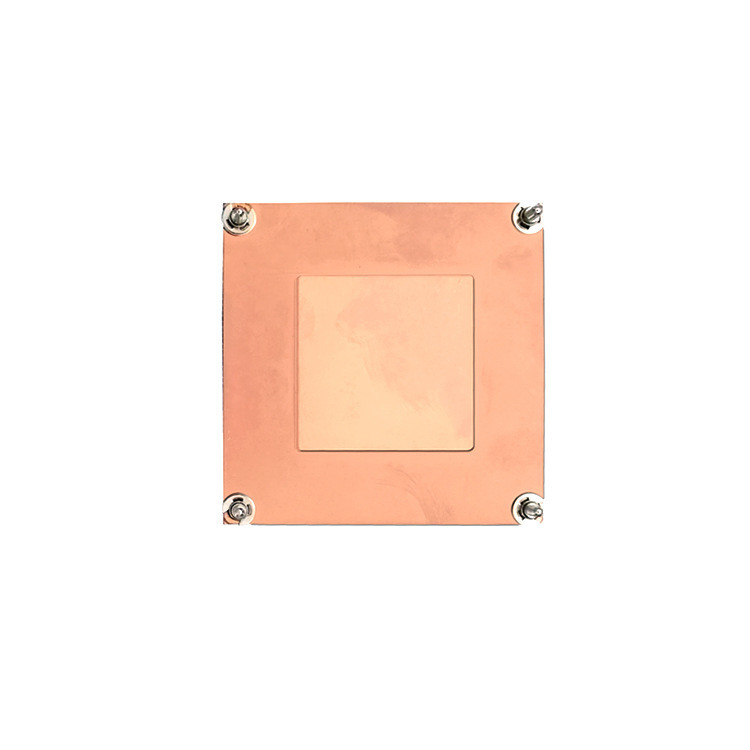

81x81x26mm Higher Power Cooper Skived Fin Heat Sink Wiht Cooling Fan

Description Of Copper Skived Fin Heat Sink

Skived Fin Heat Sinks offer highly optimized cooling as they allow for higher fin densities than what is manufacturable using extrusion methodologies, but do not have an interface joint that restricts heat flow like bonded or brazed fin heat sinks. Unlike bonded or brazed heat sinks, Skived Fin Heat Sinks are constructed from a single piece of material and offer reduced thermal resistance since there is no joint between a base and fins. These heat sinks are manufactured by precisely slicing the top of the base, called skiving, folding it back to where it is perpendicular to the base, and repeating at regular intervals to create fins.

Specification Of Skived Heat Sink

Feature Of Aluminum Heat Sink

The skiving process enables high fin density and thin fin heat sink geometries for optimal thermal performance. By packing as much fin surface area into a given volume, skived fin heat sinks have greater heat transfer than other single piece construction heat sinks such as extruded aluminum heat sinks. Compared to extruded aluminum, skived fin heat sink fabrication does not rely on expensive tooling, providing greater design flexibility and faster prototyping. Instead, each fin is cut separately using the same tool which allows for lower tooling costs. This enables Fodor Technology to fully customize skived fin components for your product, which also includes liquid cooling applications.

Application Of Aluminum Heat Sink

Aluminum heatsink is light in texture, but its strength is relatively high. It is close to or exceeds high-quality steel. It has excellent thermal conductivity and corrosion resistance, good heat dissipation performance, and good energy-saving effect.

After the aluminum heatsink has been surface-oxidized, an oxide film is formed on the surface of the heatsink. This film is tough and dense, preventing further corrosion of the bulk material, increasing the corrosion resistance, wear resistance and appearance of the aluminum material. Aesthetics.

The application areas of aluminum heatsinks are

Power, electronics, communications, machinery, automobiles, solar photovoltaic power generation, wind power, construction machinery, air compressors, railway locomotives, household appliances and other industries.
