Service Quality Description Of Copper High Fins 1100 Skived Fin Heat Sink

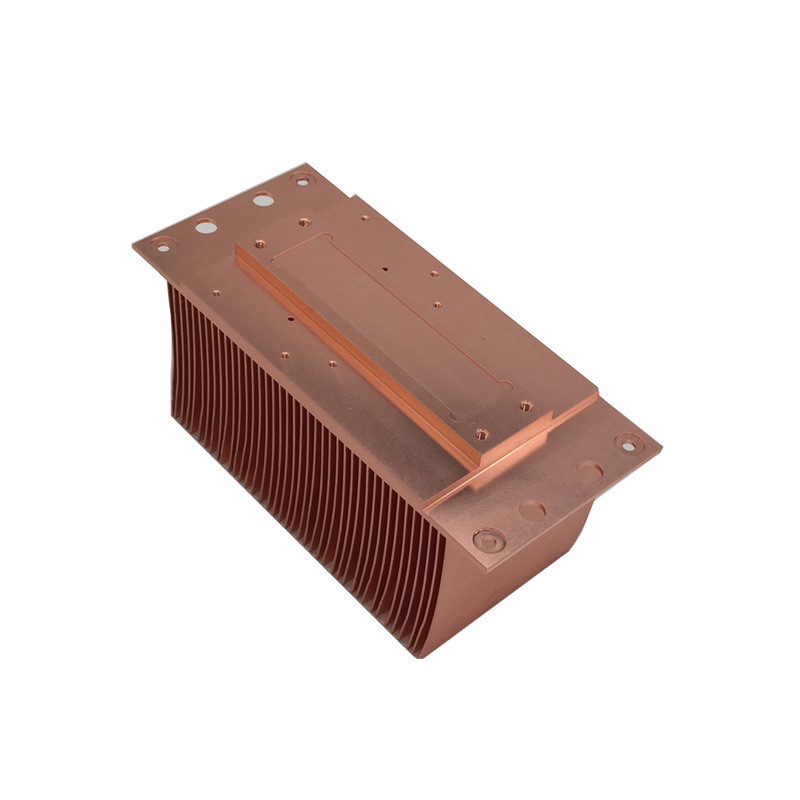

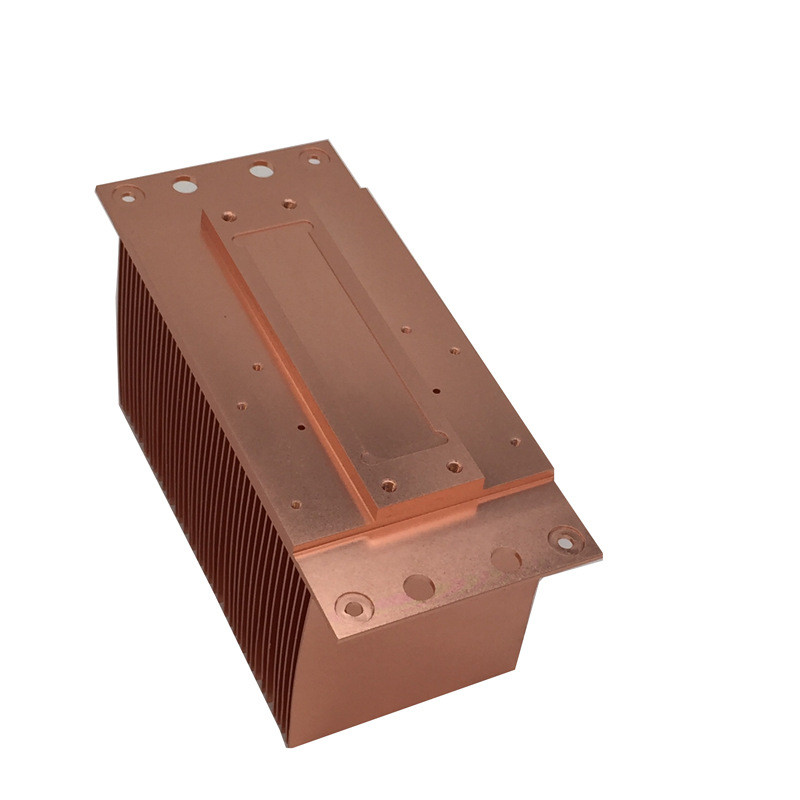

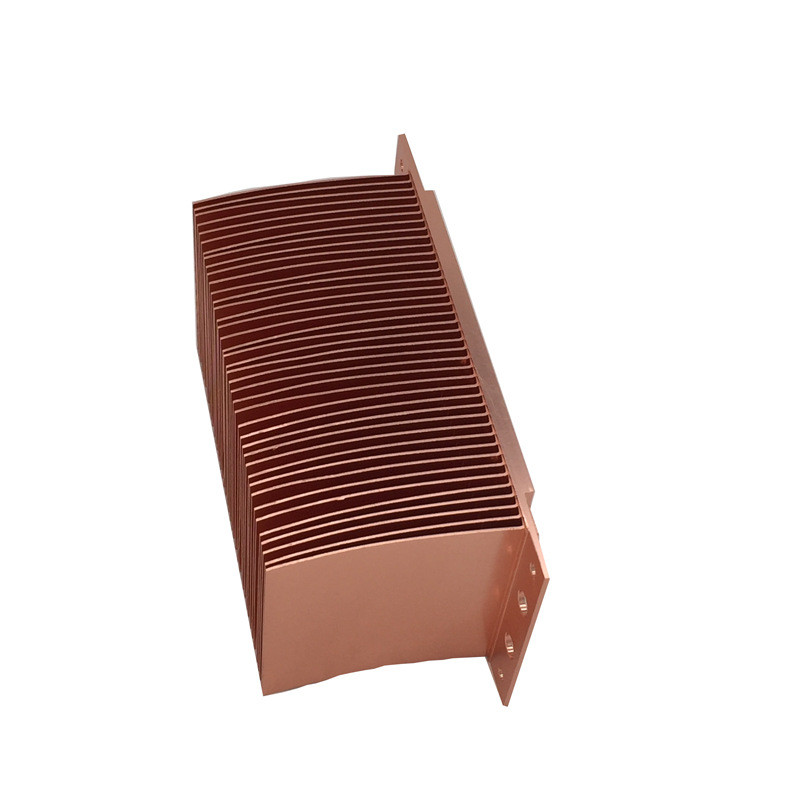

Description Of Copper Skived Fin Heat Sink

Skived Fin Heat Sinks offer highly optimized cooling as they allow for higher fin densities than what is manufacturable using extrusion methodologies, but do not have an interface joint that restricts heat flow like bonded or brazed fin heat sinks. Unlike bonded or brazed heat sinks, Skived Fin Heat Sinks are constructed from a single piece of material and offer reduced thermal resistance since there is no joint between a base and fins. These heat sinks are manufactured by precisely slicing the top of the base, called skiving, folding it back to where it is perpendicular to the base, and repeating at regular intervals to create fins.

Specification Of Skived Heat Sink

Feature Of Aluminum Heat Sink

The skiving process enables high fin density and thin fin heat sink geometries for optimal thermal performance. By packing as much fin surface area into a given volume, skived fin heat sinks have greater heat transfer than other single piece construction heat sinks such as extruded aluminum heat sinks. Compared to extruded aluminum, skived fin heat sink fabrication does not rely on expensive tooling, providing greater design flexibility and faster prototyping. Instead, each fin is cut separately using the same tool which allows for lower tooling costs. This enables Fodor Technology to fully customize skived fin components for your product, which also includes liquid cooling applications.

The Skiving Process

Skived heat sinks are manufactured by peeling fins from a bar of solid copper or aluminum, using a sharp and accurately controlled blade tool. The tool shaves a small thickness of the material, lifts it up and bends it vertically to form the fin. The final heat sink can be machined using normal fabrication techniques, such as CNC machining. Skived heat sinks require minimal tooling cost, which makes it a cost effective solution. Skived heat sinks can also be customized with embedded heat pipes to further improve performance.

Application Of Aluminum Heat Sink

Skived copper heat sinks deliver maximum heat dissipation in applications with limited space and high levels of ventilation. They are a cost effective solution when considering the low tooling cost and the optimized fin surface area.

Skived fin heat sinks are commonly found in the following applications:

1. Computers and electronic components
2. Telecommunication equipment
3. Industrial equipment and components
4. Lighting lamps and household appliances industry
5. Automotive components

Skived heat sinks can be constructed of aluminum or copper allowing for full, one-piece copper solutions for high performance cooling. Fodor's standard copper skived fin heat sinks are available with Shurlock pin attachments for reliable mounting and easy assembly.

For rapid thermal modeling and comparison of multiple heat sink constructions please try to contact us, we can offer the free design.
